- Brand New

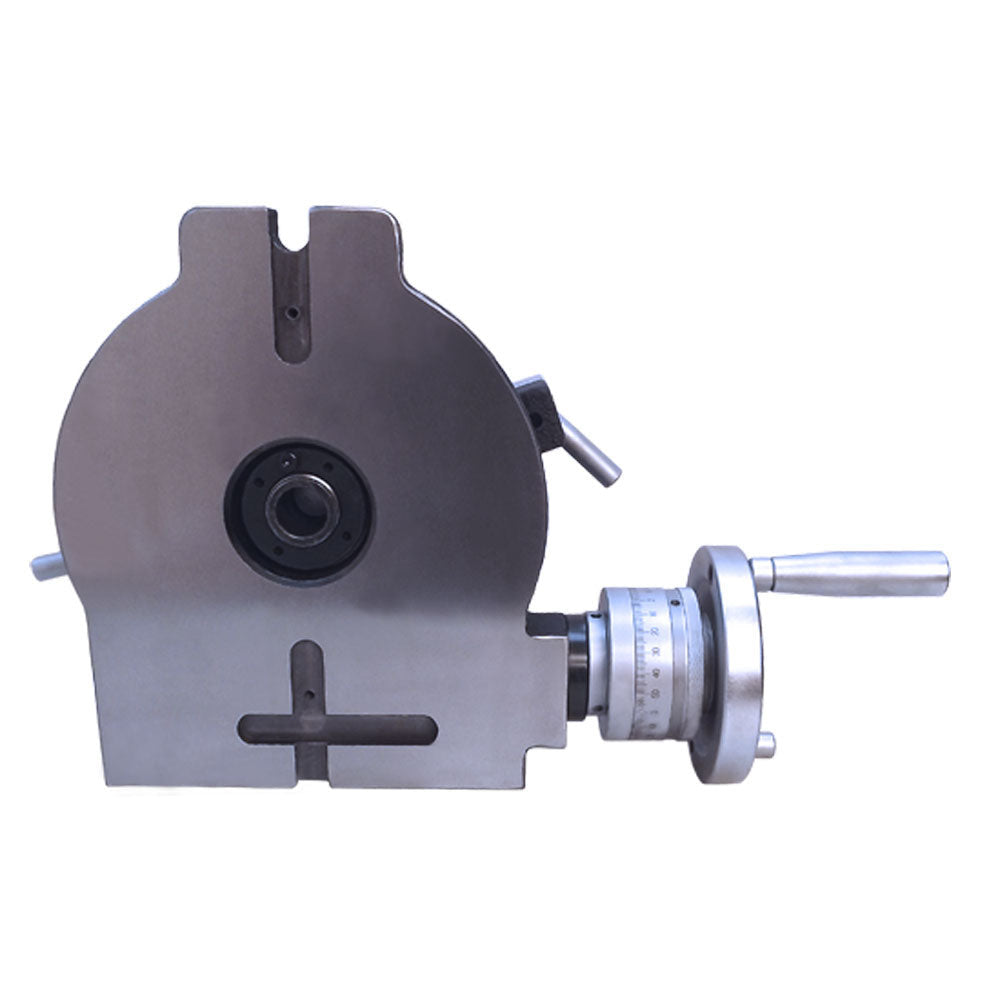

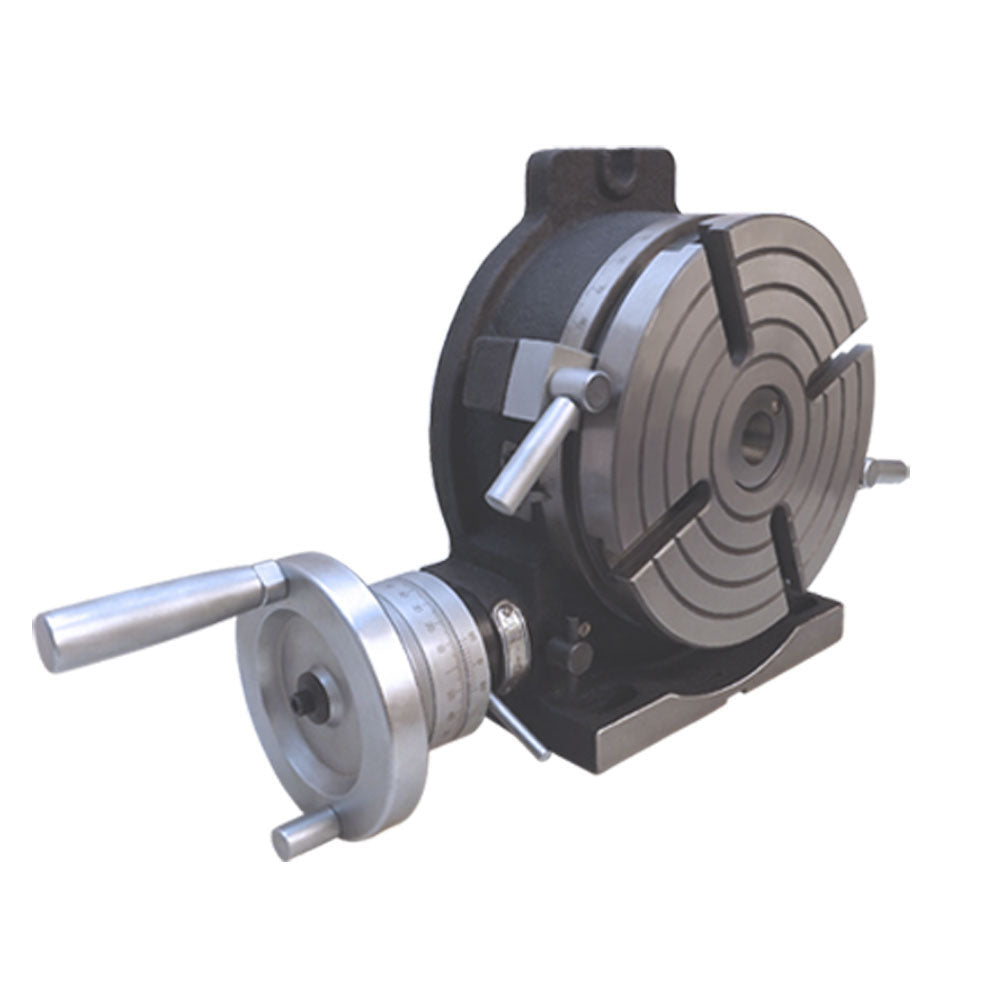

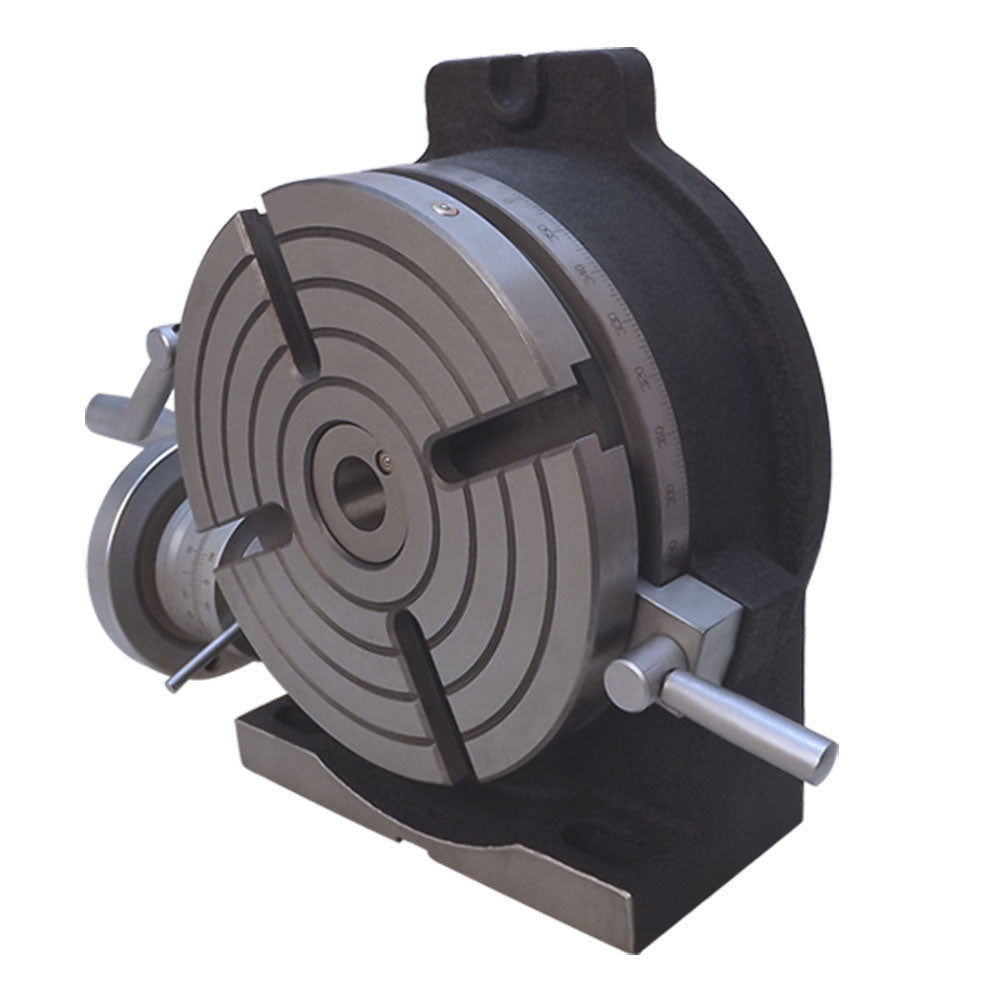

- 8'' Horizontal & vertical rotary table
- Table diameter: 8"
- Height OA horizontal: 3.94"
- Center height for vertical mounting: 5.91"
- Center Hole: 3 Morse Taper
- T-slot width: .465"
- Locating slot width: 0.630"
- Maximum working load: 330 lbs (horizontally )
- Maximum working load: 165 lbs (vertically )
- Designed for milling, drilling, jigboring, and many common shop applications
- Low Profile
- 10 second vernier reading
- Gear drive immersed in oil
- Extra deep coolant channel
- Dual positive action locks
- Satin chrome dials
- Maximum individual spacing error 4"table 120", 6" table 80", 8, 10, 12, 16" tables 60"
- 4" table utilizes low profile locks for added work space
- Gear ratio: 4" table is 72:1; 6-16"tables are 90:1
- Flatness of clamping service-concave: .0006"
- Concentricity of center bore: .0008
- Parallelism of clamping surface to angle face: .0008"
- Squareness of angle surface to clamping surface: .0004"
- Squareness of clamping surface tocenter slot: .0008"
- Weight: 56 lbs
- Overall Dimension: 4-1/2''L x 18''W x 10-5/8''H
