Description
- Brand New

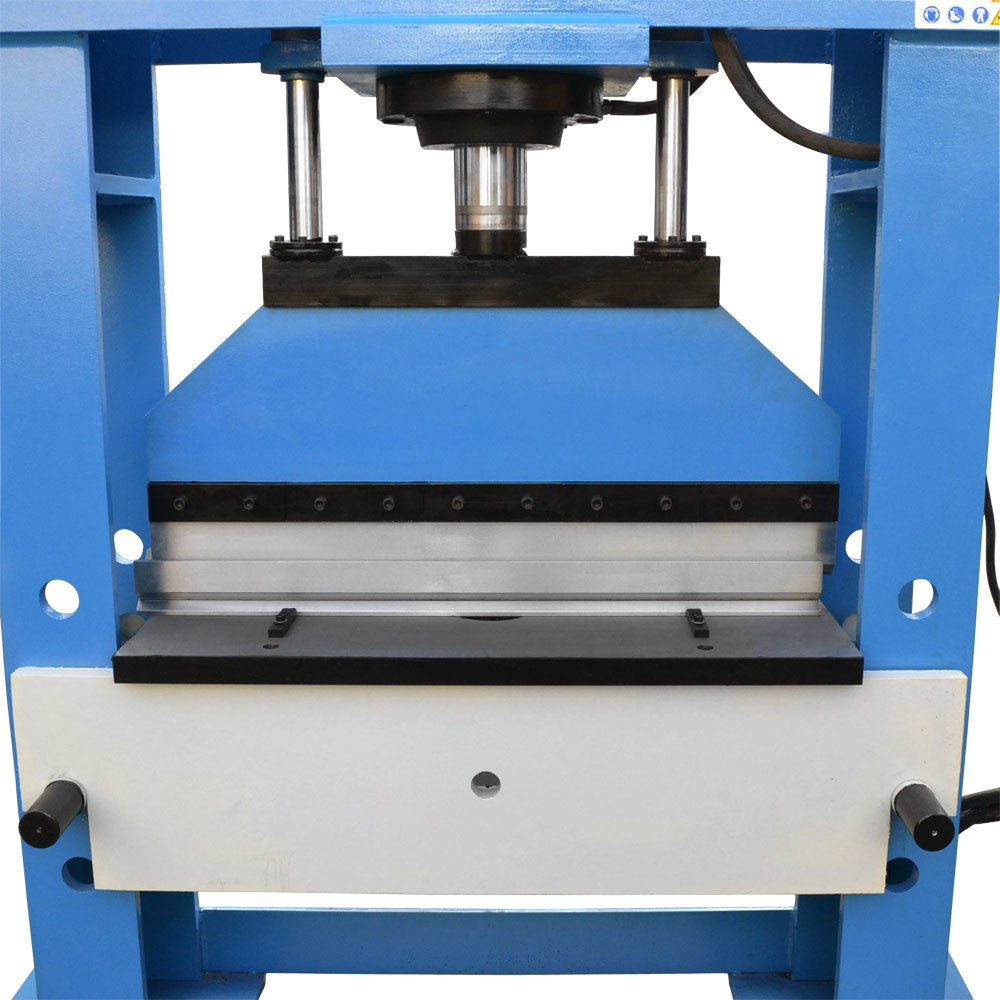

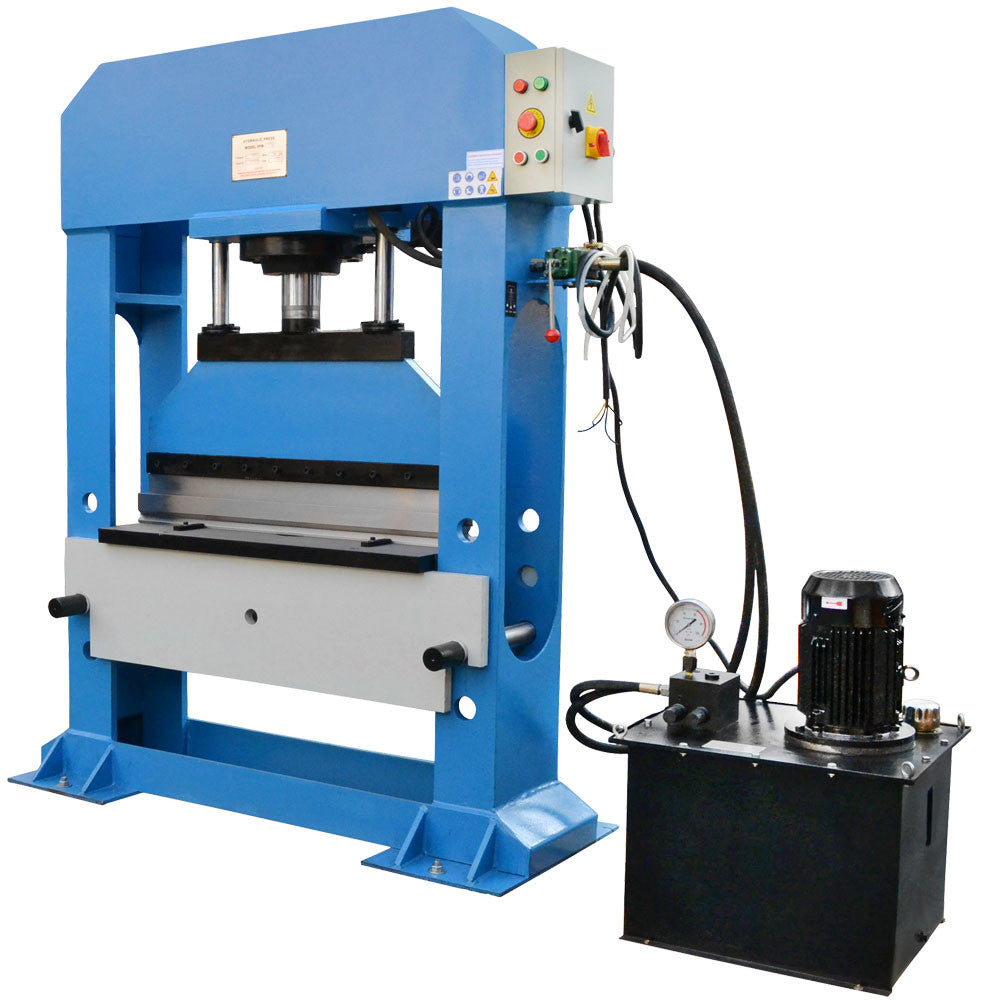

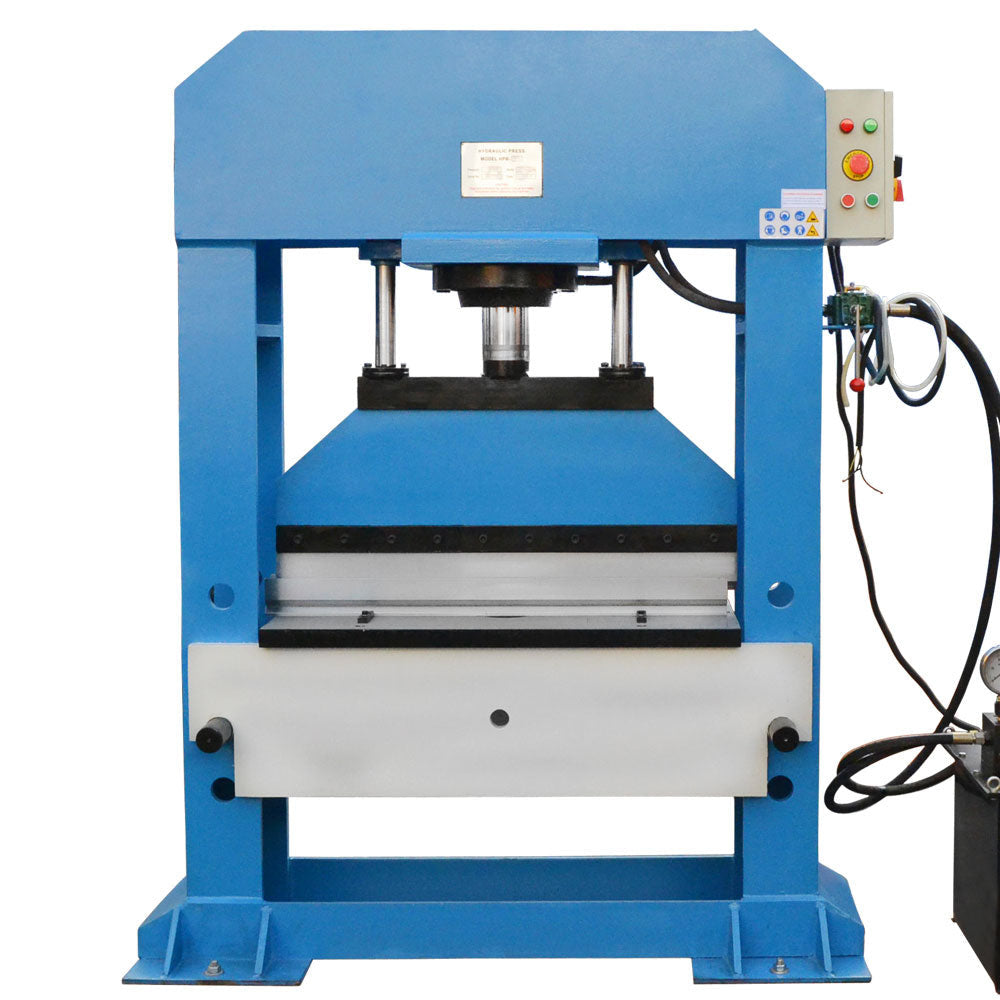

- Electric 150 Ton Hydraulic Press Brake
- Capacity: 150 Ton (1500kn)
- Max. Length: 38-5/8"
- Max. Thickness: 1/2" (12mm)
- The Standard Speed: 12 mm per a second
-
Hydraulic Motor:
*220 Volt
*4 KW
*1680 RPM
*3-Phase
*15 Amps - Pressure: 30 mpa
- Oil Tank: 88 Liter (22.3 gallon)
- Piston Travel: 9.84" (250mm) + 15.94" (405mm)
- Worktable Size: 38-1/2" x 17-1/2" x 1-1/2"
-
Overall dimension:
Press: 60" x 24" x 75-1/2" (crate: 69" x28" x 86") *estimate only*
Hydraulic Station: 23-3/4" x 19-3/4" x 30" (crate: 28" x24" x 38") *estimate only* -
Weight G.W. / N.W. :
Press: 3,595 lbs / 3,388 lbs *estimate only*
Hydraulic Station: 284 lbs / 220 lbs *estimate only* - Quantity: 1
- Large Freight Item
