Description
- Brand New

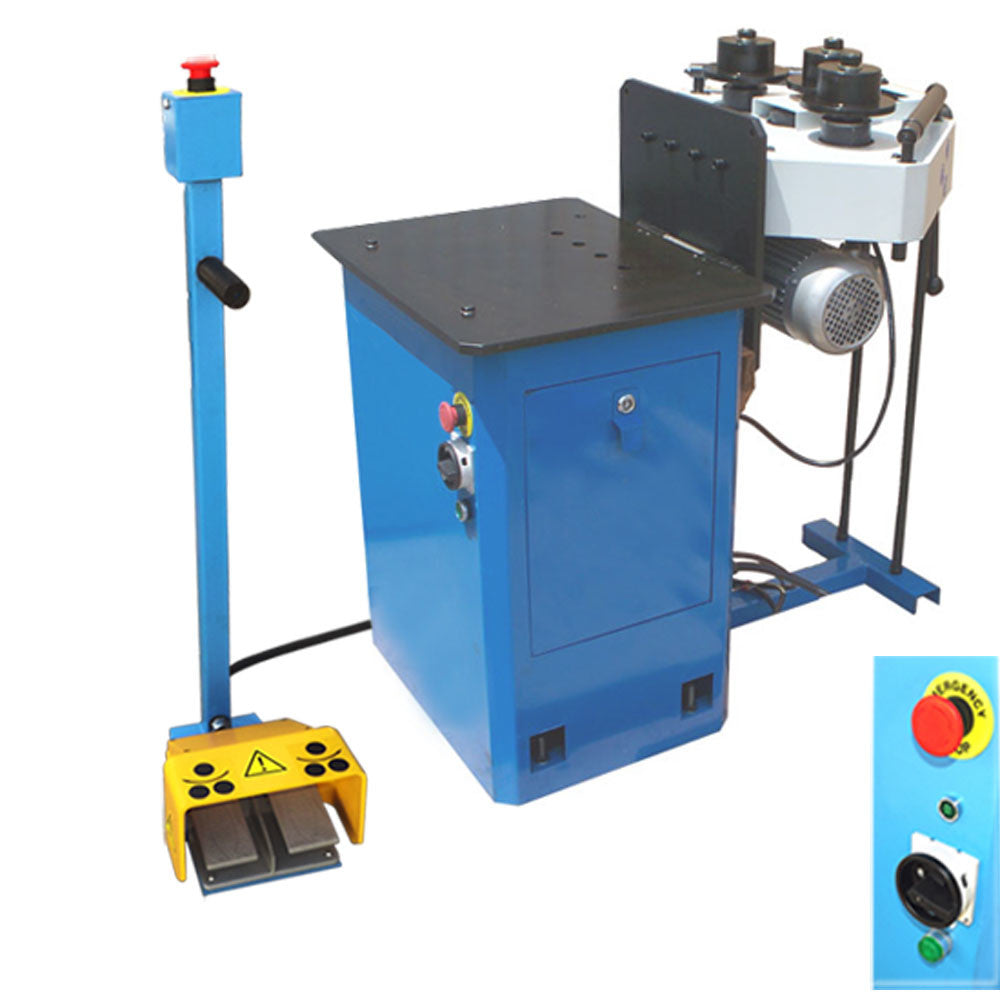

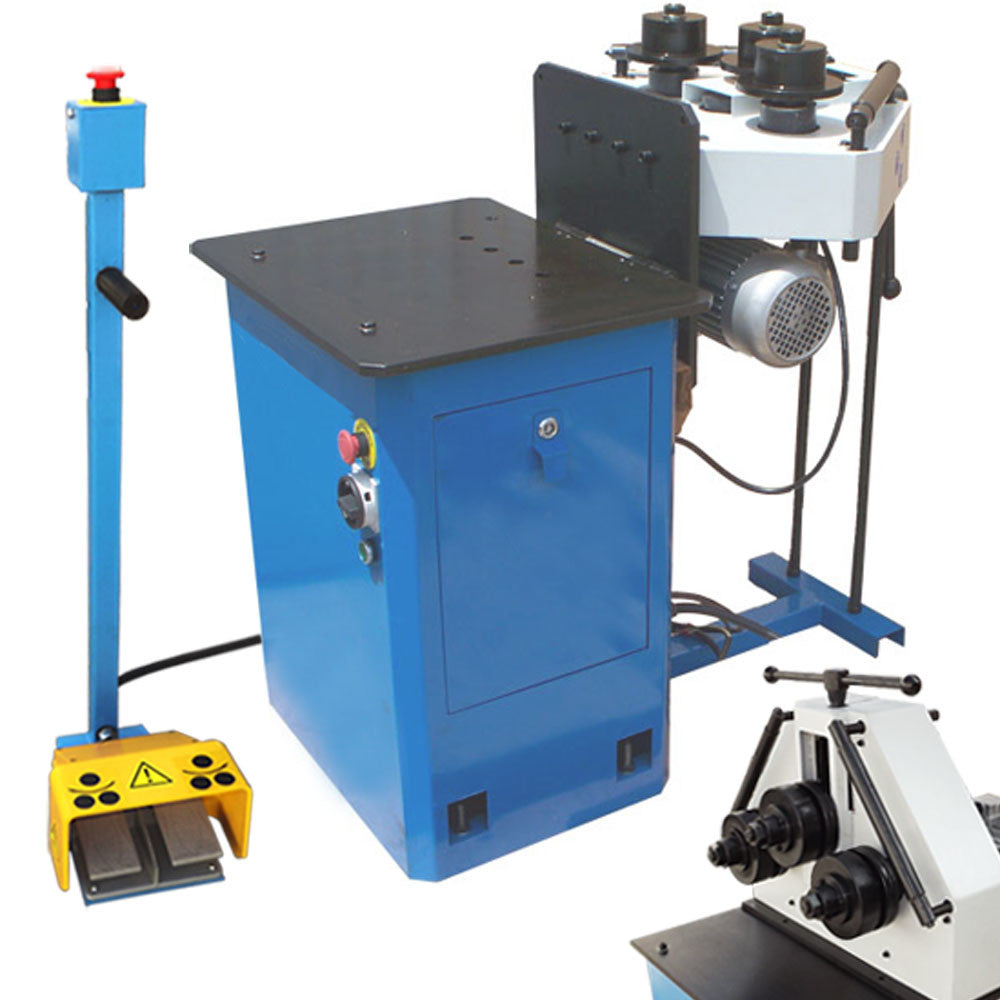

- Band/Ring Roller Bending Machine
- Position: Horizontal or Vertical
-
Capacity:
Round Pipe/Tube Stock: 1-1/4" x 1/16"(mild steel)
Square Pipe/Tube Stock: 1-1//4" x 1/16"(mild steel)
Solid Round Stock: 5/8"(mild steel)
Solid Square Stock: 1-1/4 x 3/8"(mild steel) -

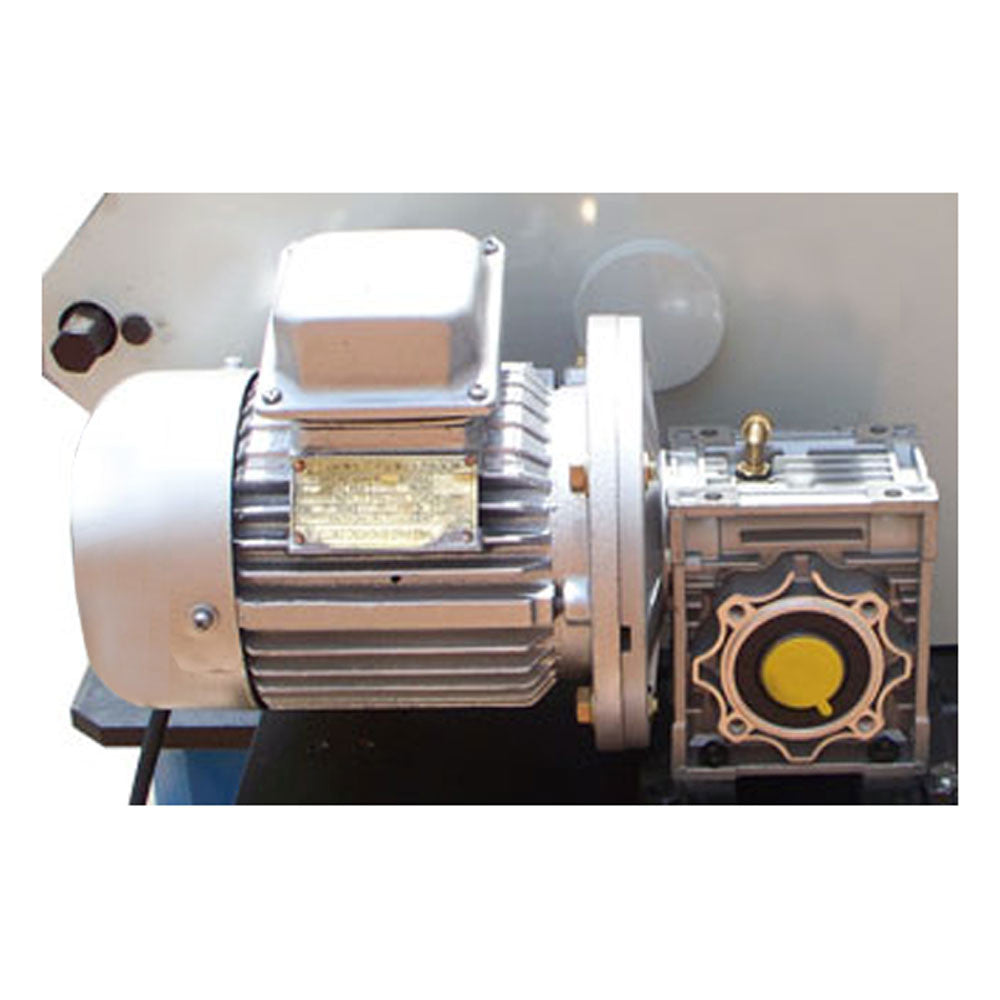

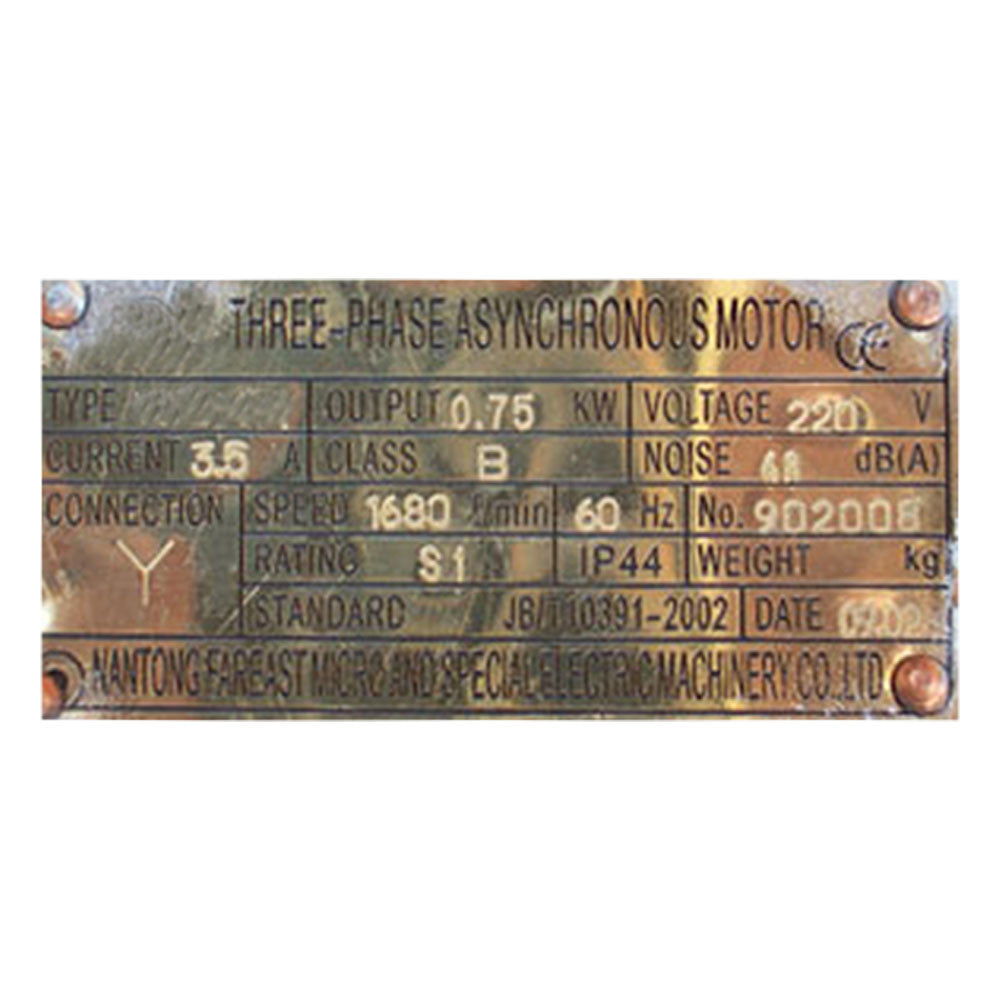

3 Phase Asynchronous Motor:
* 1HP (0.75KW)
* 220 Volts @ 60 Hz(3 Phase)
* Speed: 1680 RPM
* 3.5 Amp
* Noise: 68 dB (A)
* Rating: S1 - Diameter Of Roller Shaft: 1-5/8" x 2-3/8"
- Speed Of Leading Roller: 5 rpm
- One Set Standard Combination Roller Bending Capacity:
Standard Roller Processing Capacity Size(mm) Min Dia(mm)
50 x 15 350
50x50x2 50x50x3
50x50x4 50x50x5400
50x25x2 50x25x3
50x25x4 50x25x5300
50x25x2 50x25x3
50x25x4 50x25x5400
50x25x2 50x25x3
50x25x4 50x25x5300
40x40x2 40x40x3
40x40x4 40x40x5400
40x40x2 40x40x3
40x40x4 40x40x5400
Ø15 Ø20
Ø25 Ø30600
40 x 40 x 3 1000
50 x 30 x 3 1200 - Overall Dimension: 24-1/2" x 37-1/2" x 50-1/2" *estimate only without Foot Control Pedal*
- Weight: 492 lbs *estimate only*
- Large Freight or Over Sized Item
- Quantity: 1
