Description
- Brand New

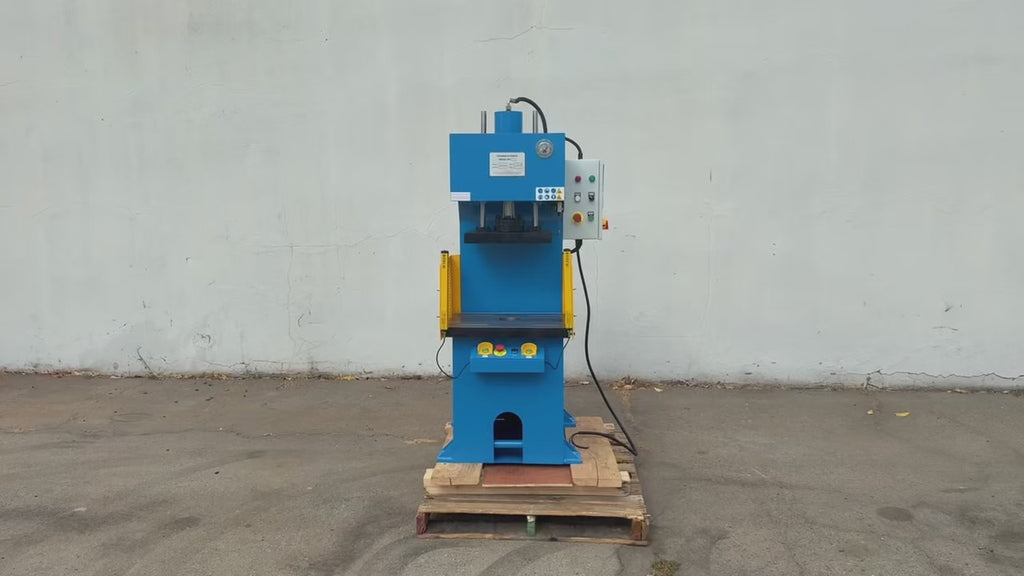

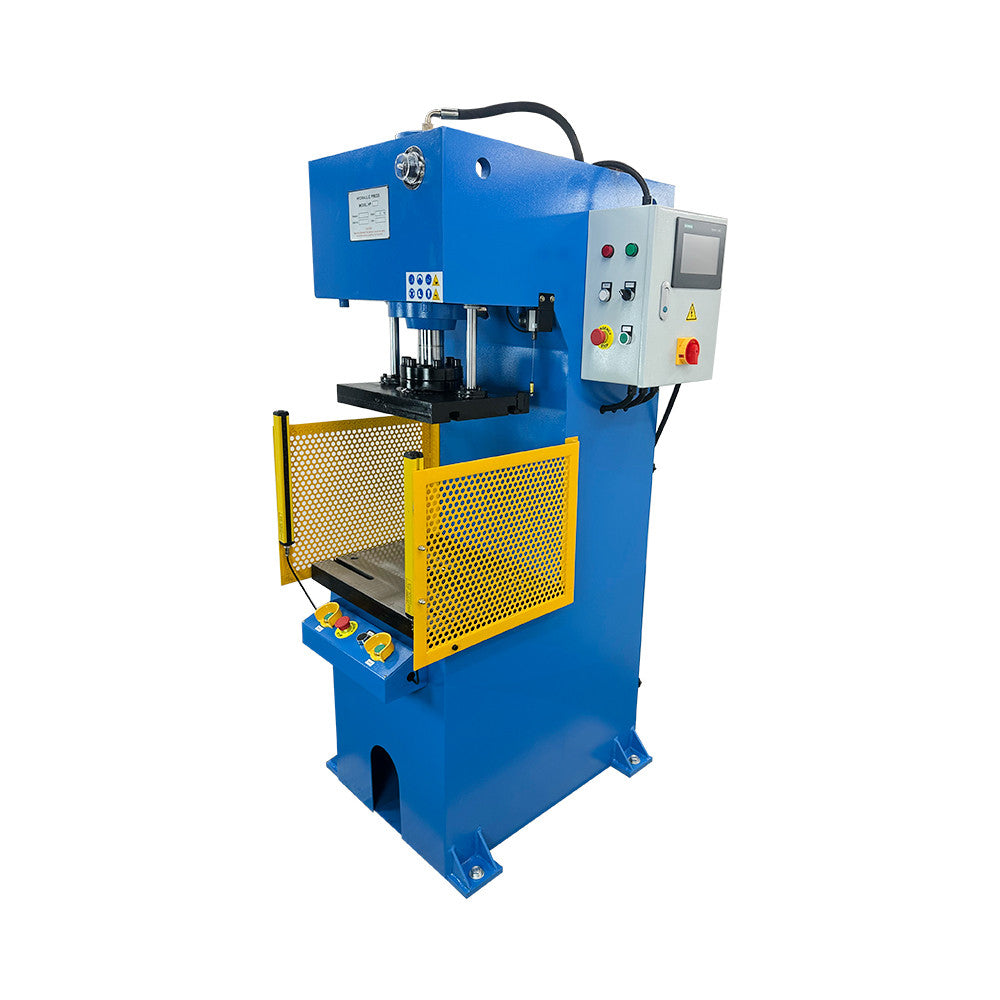

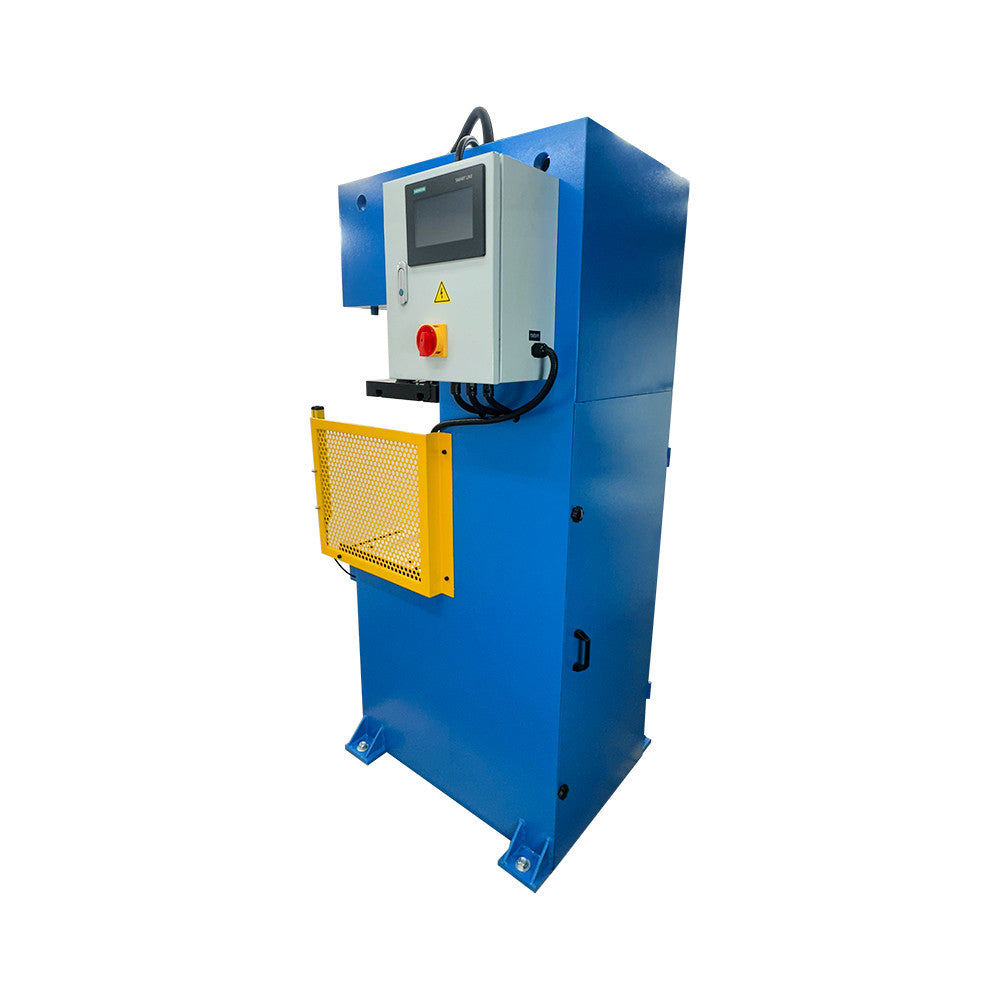

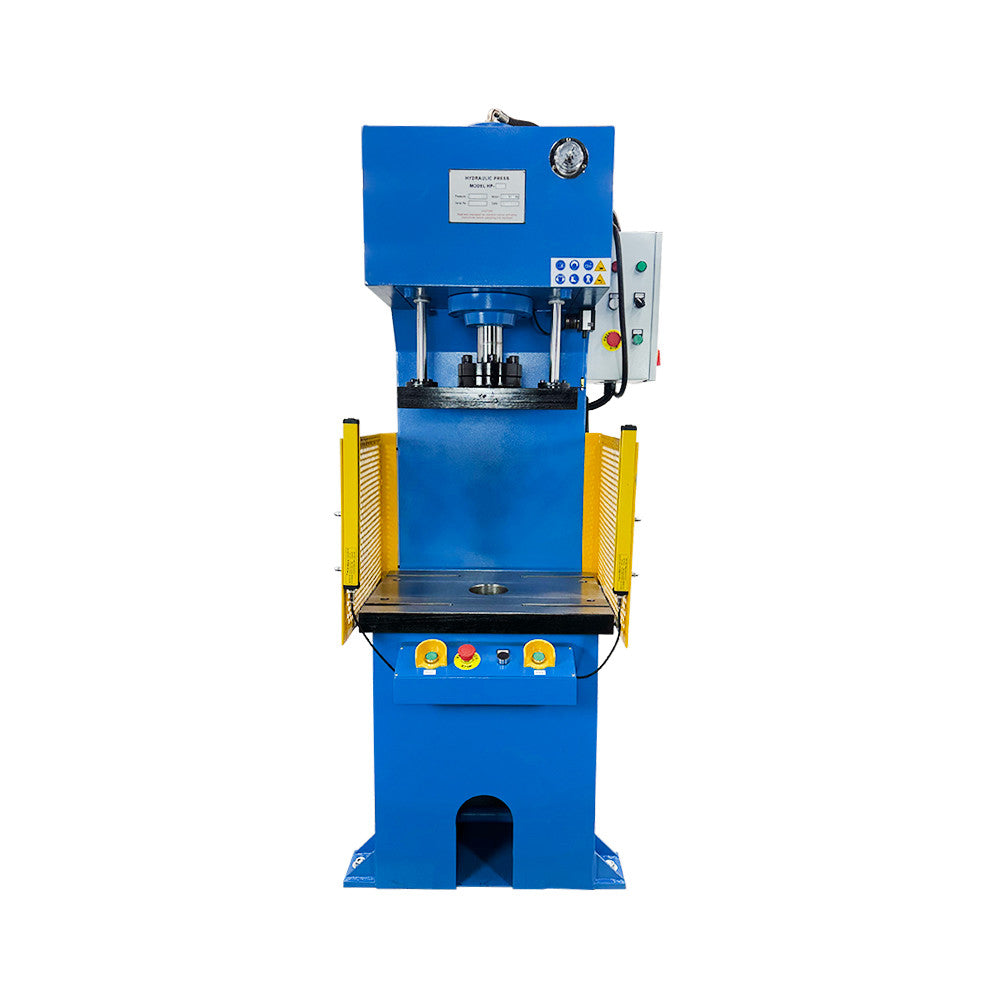

- CNC 20 Ton C-Frame Hydraulic Press

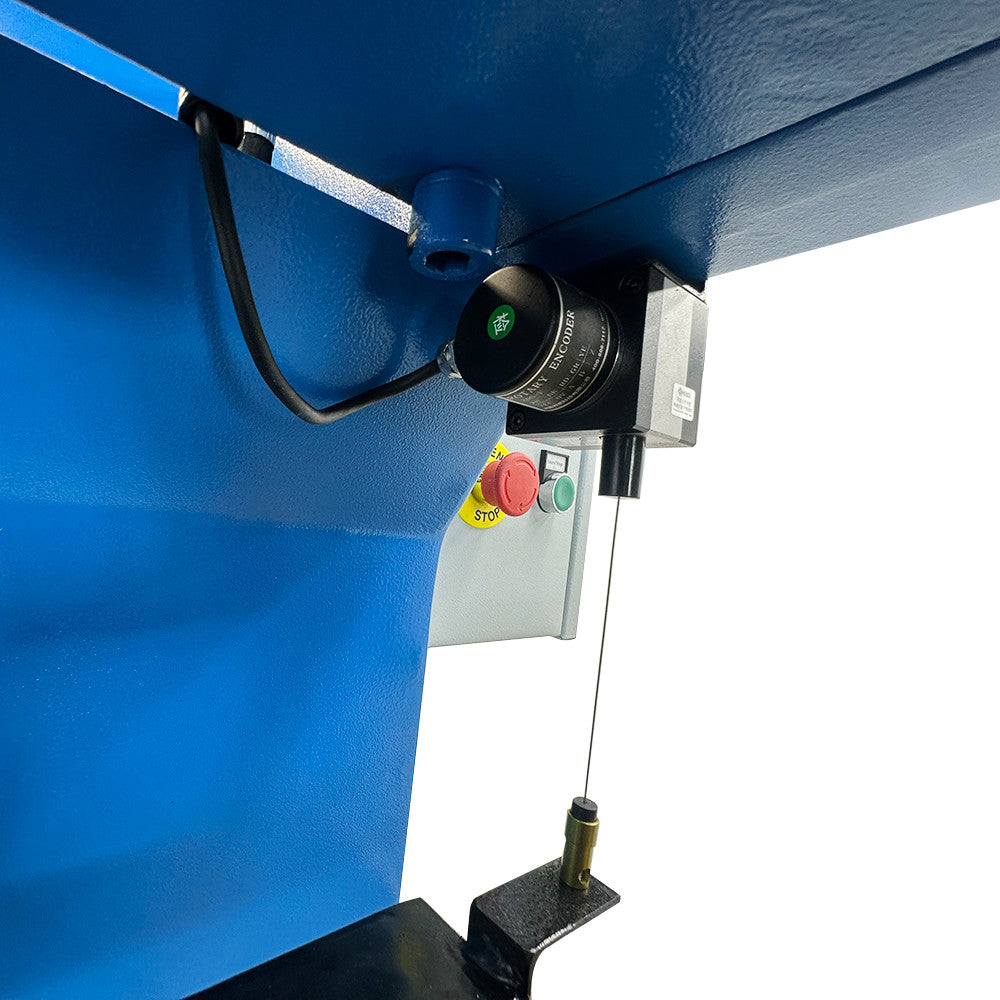

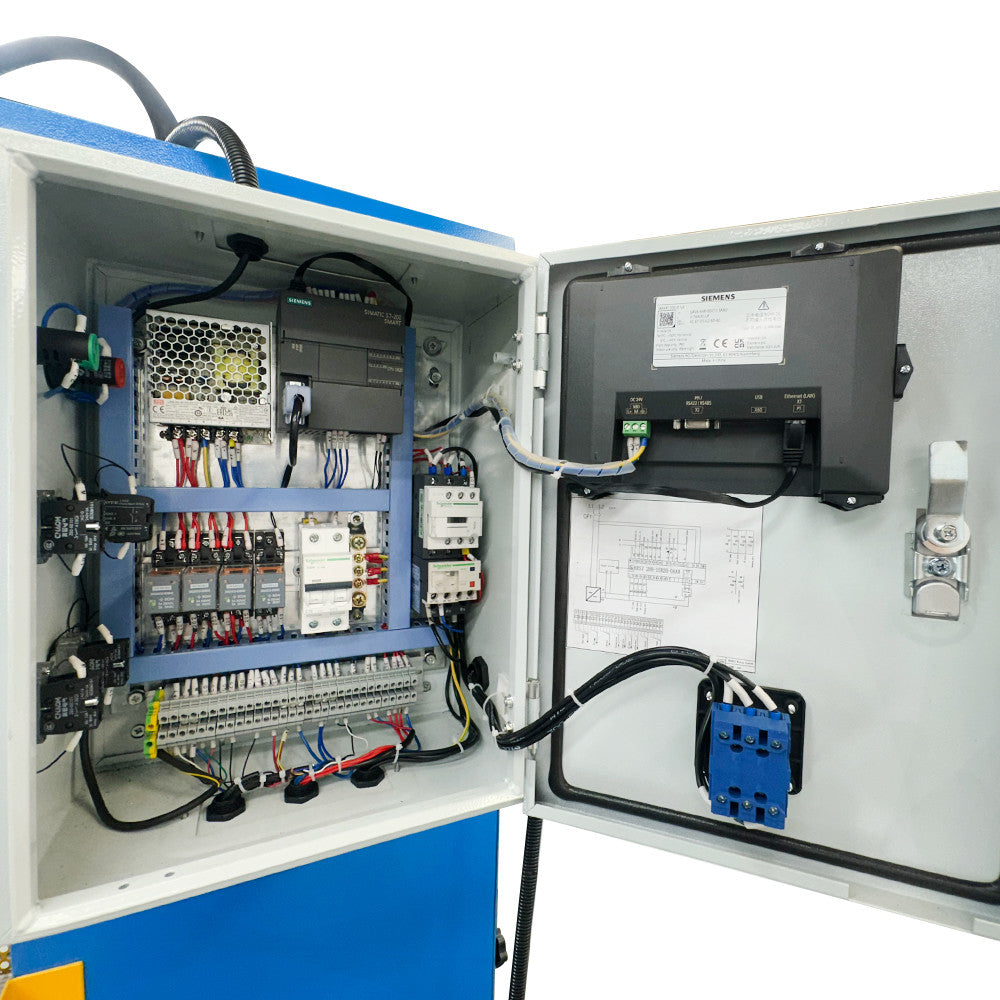

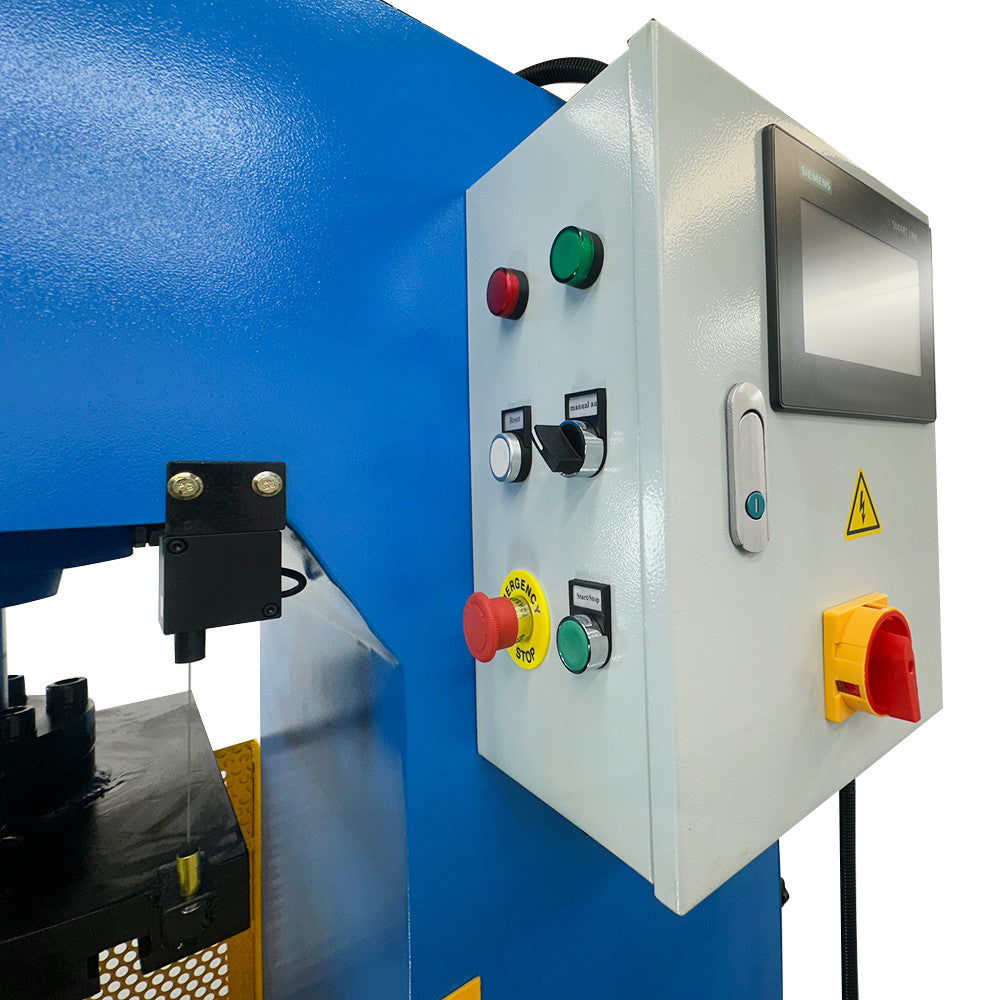

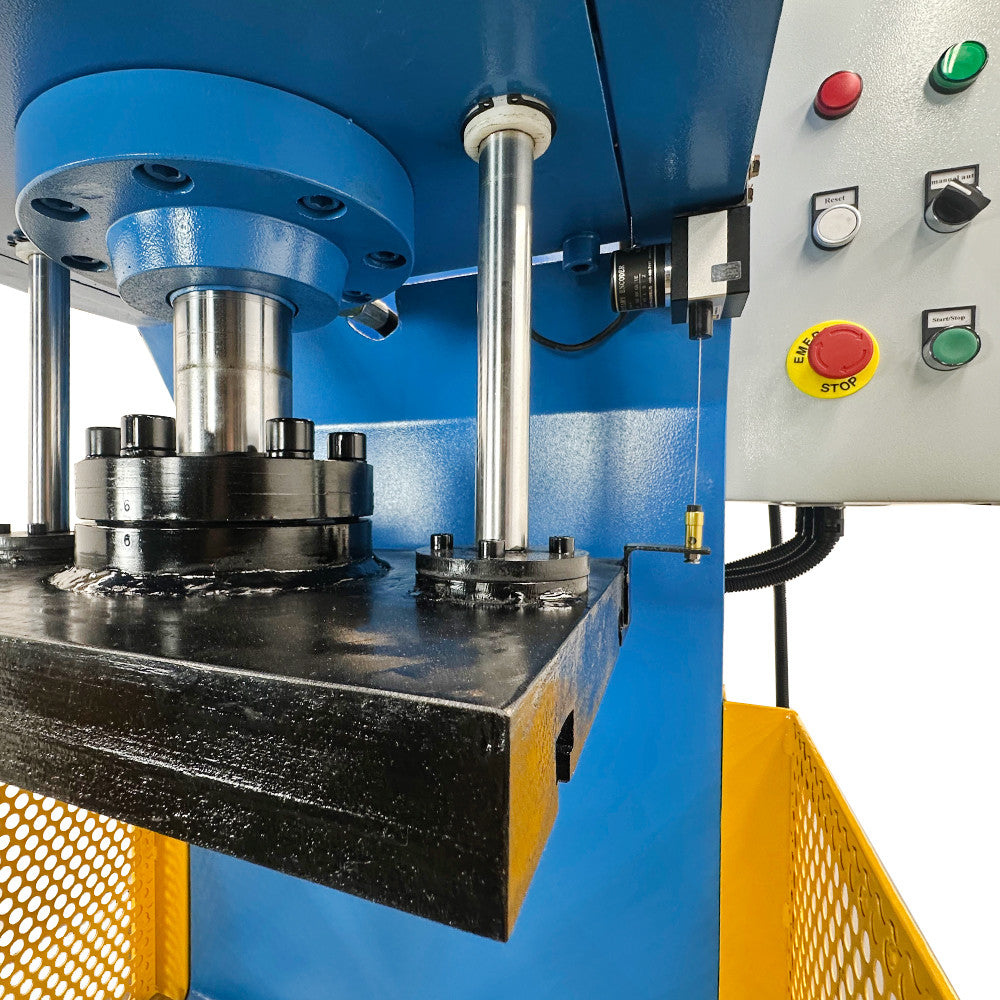

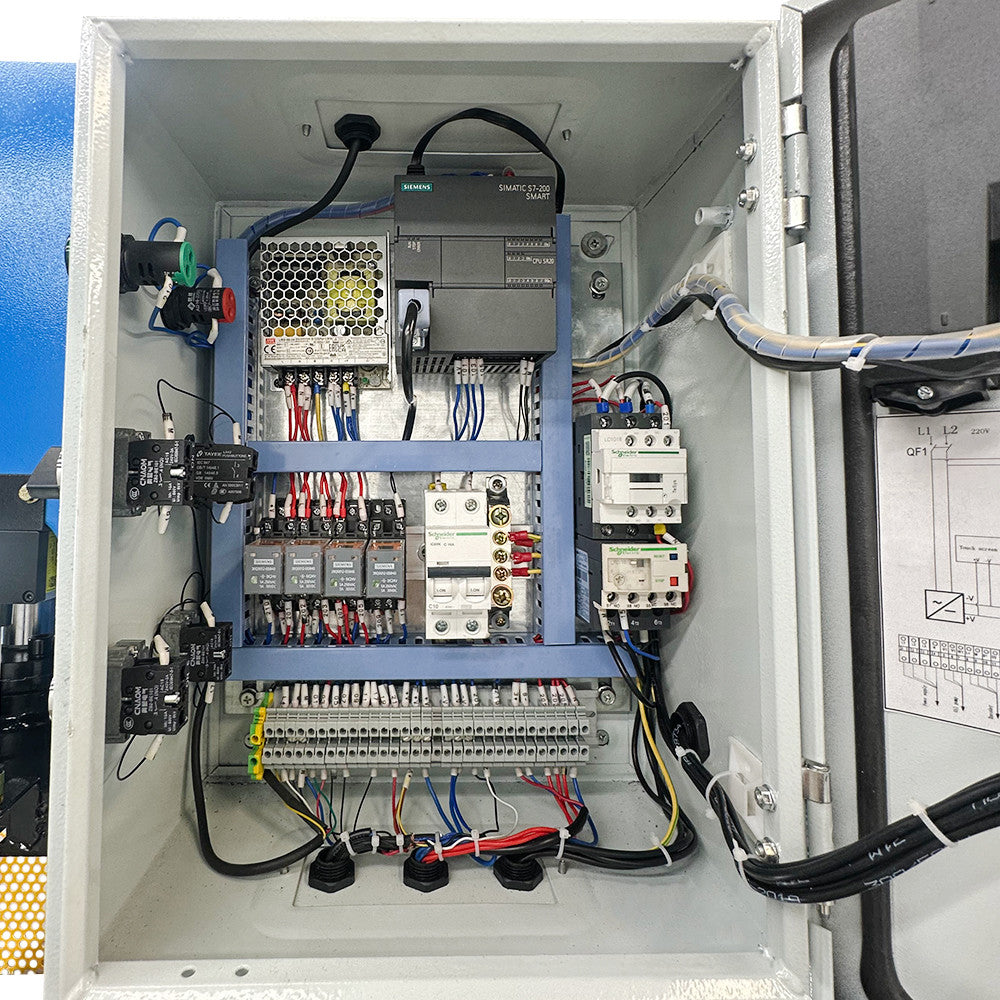

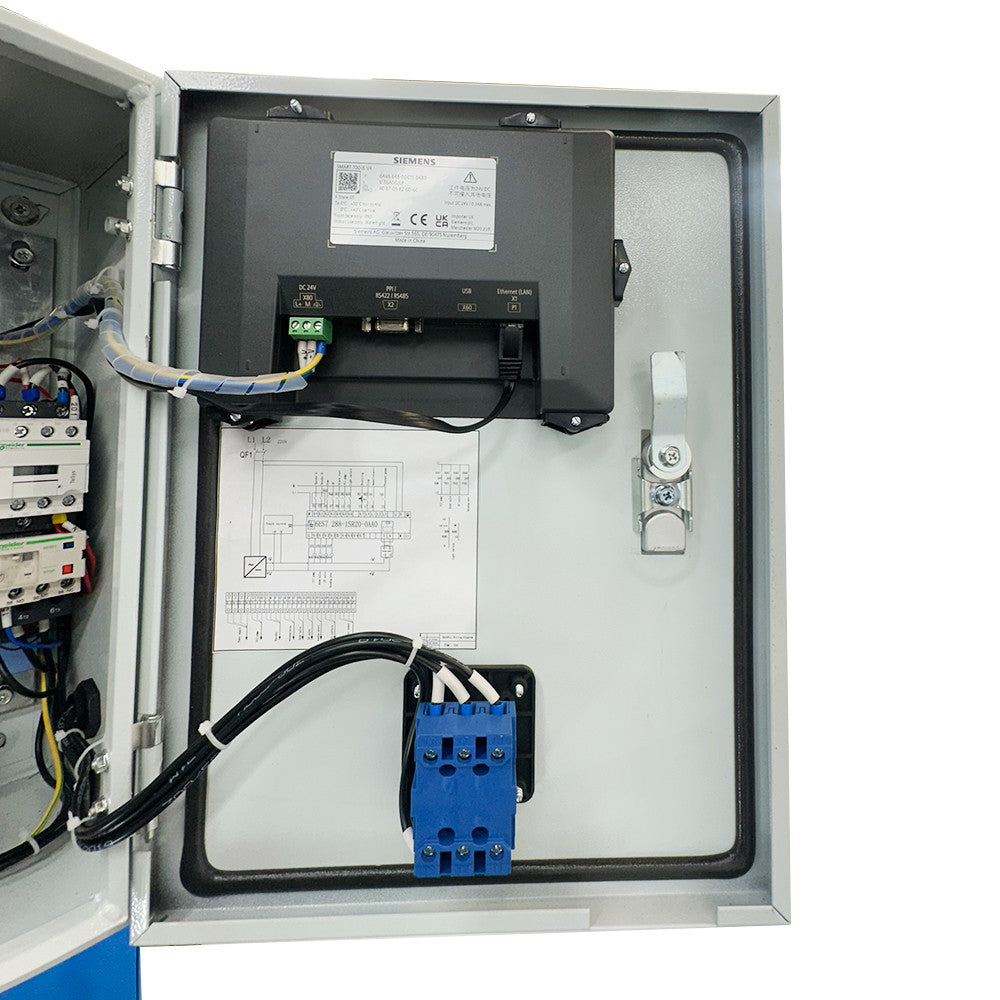

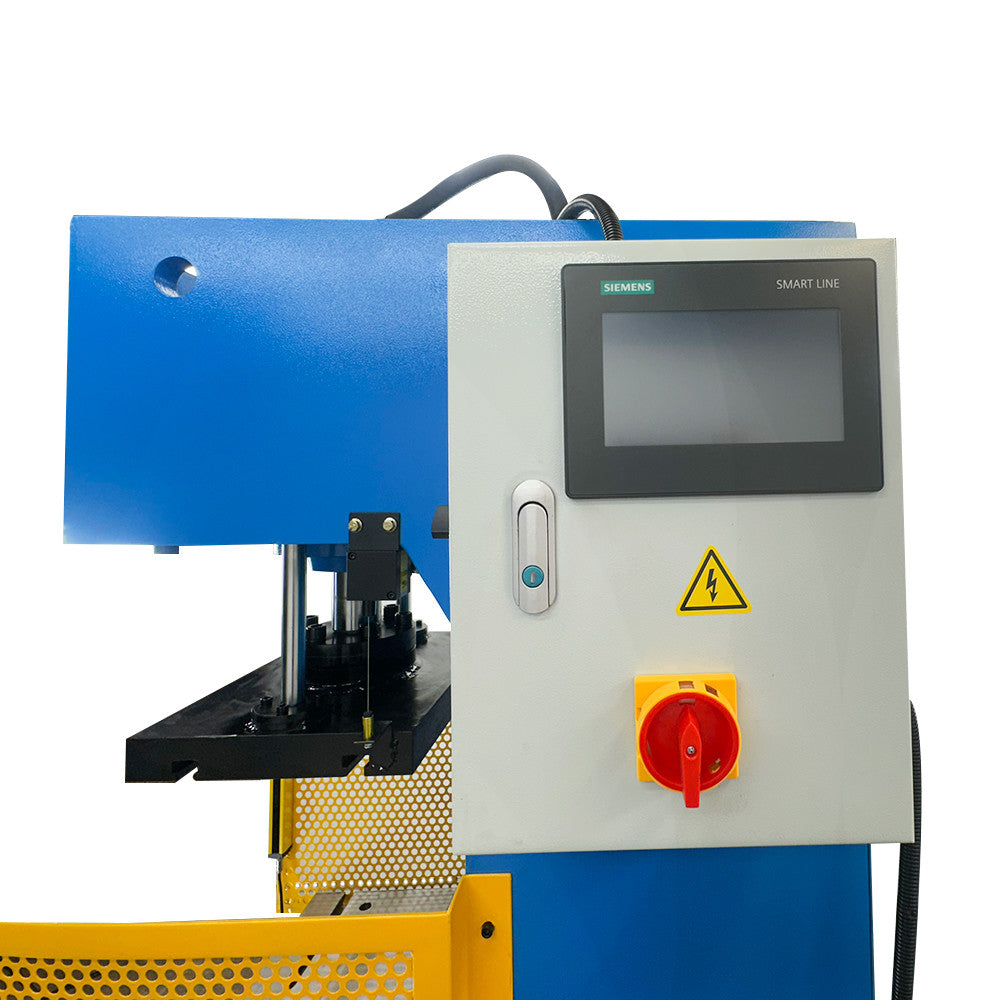

- Control Methods: Manual, Automatic PLC, Grating Ruler Travel, Pressure and Speed Can Be Set
- Capacity: 20 Ton (200kn)
- Max Opening: 15-3/4" (400mm)
- Travel / Stroke: 9-7/8" (250mm)
- Working Area Parameters: 23"L x 17"W x 14"H

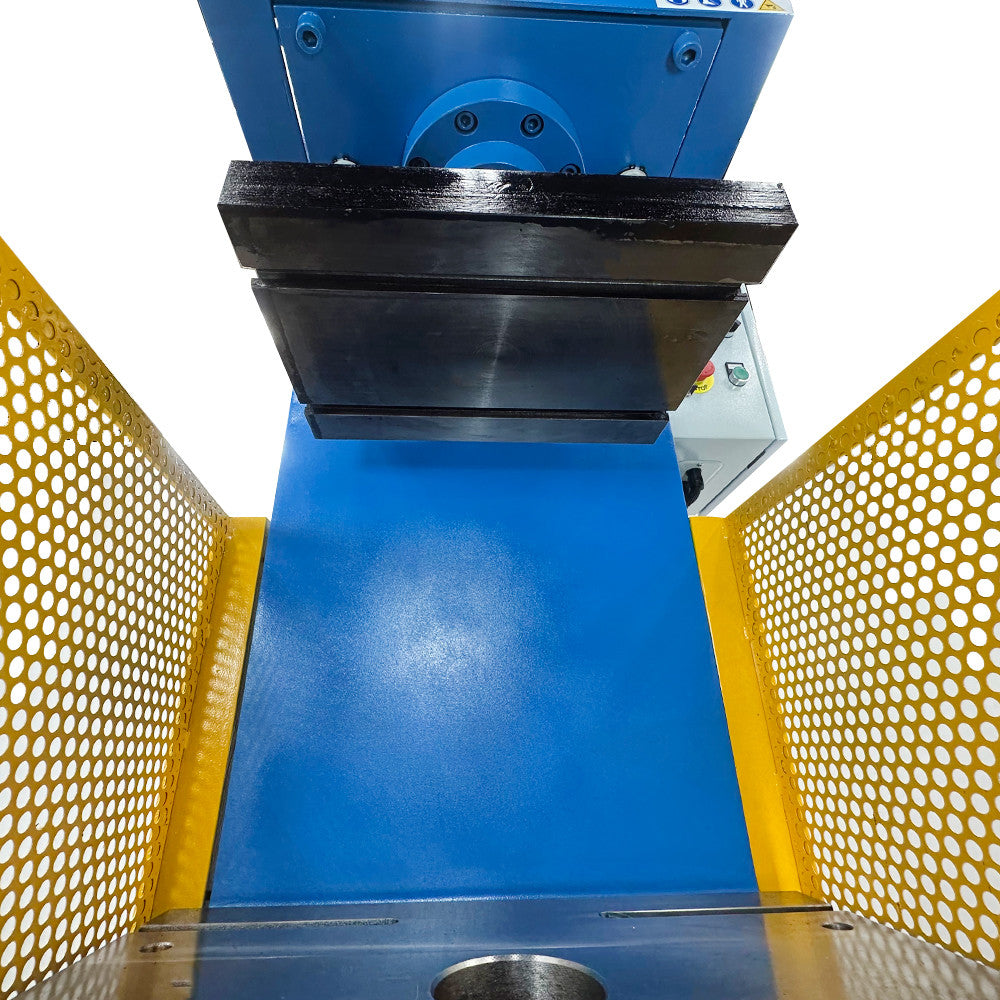

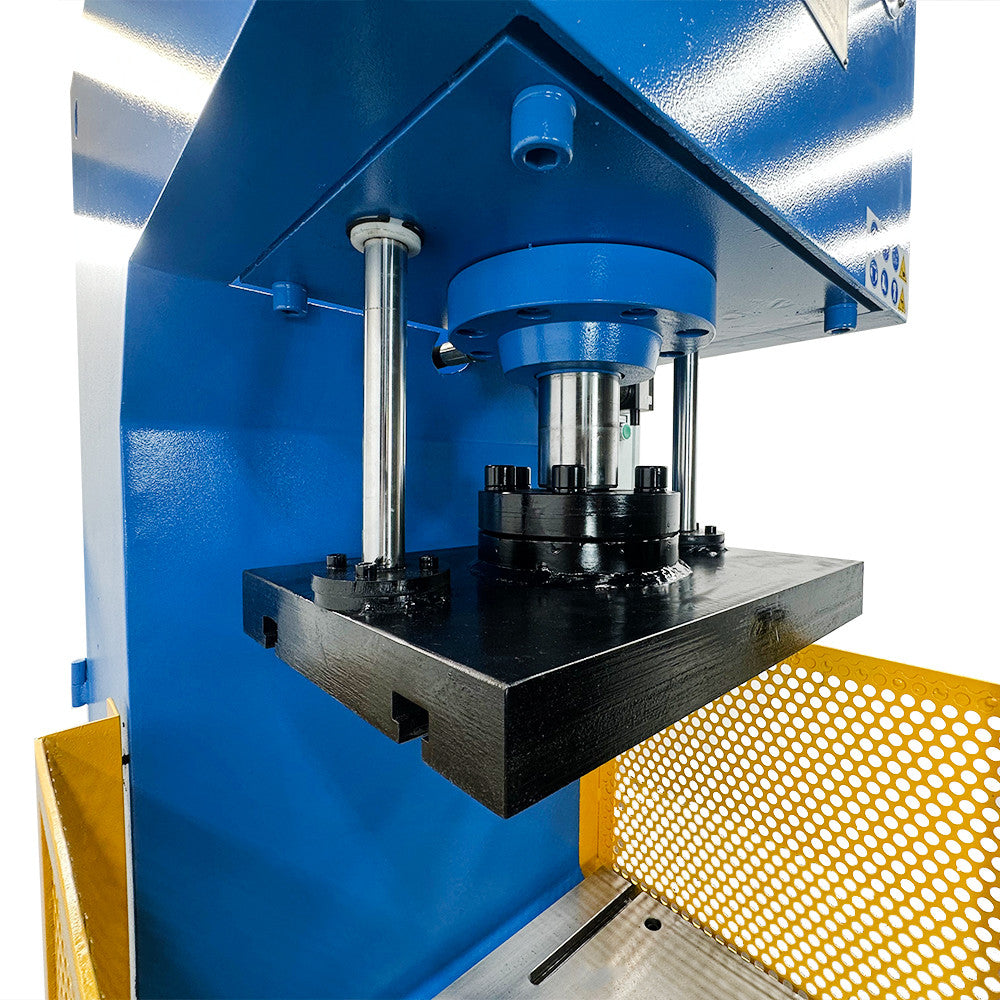

- Press Plate: 16" x 10-1/2"

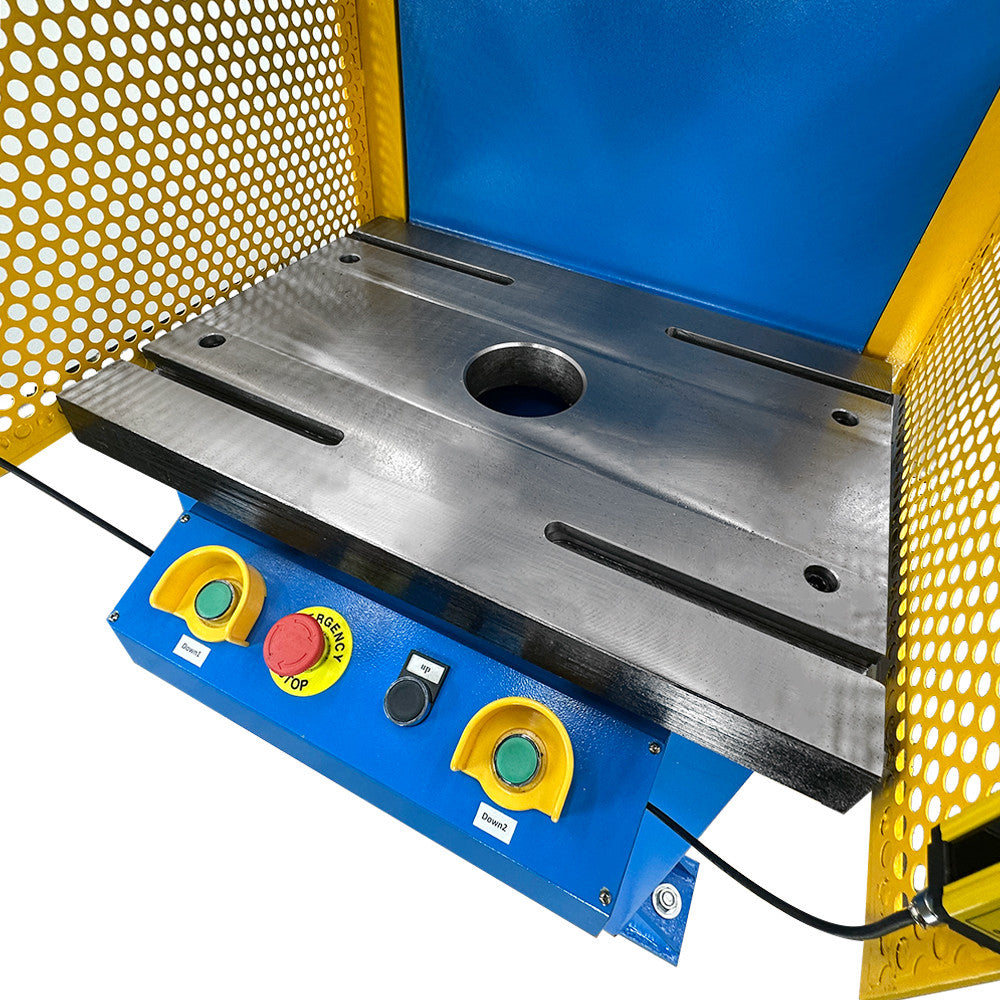

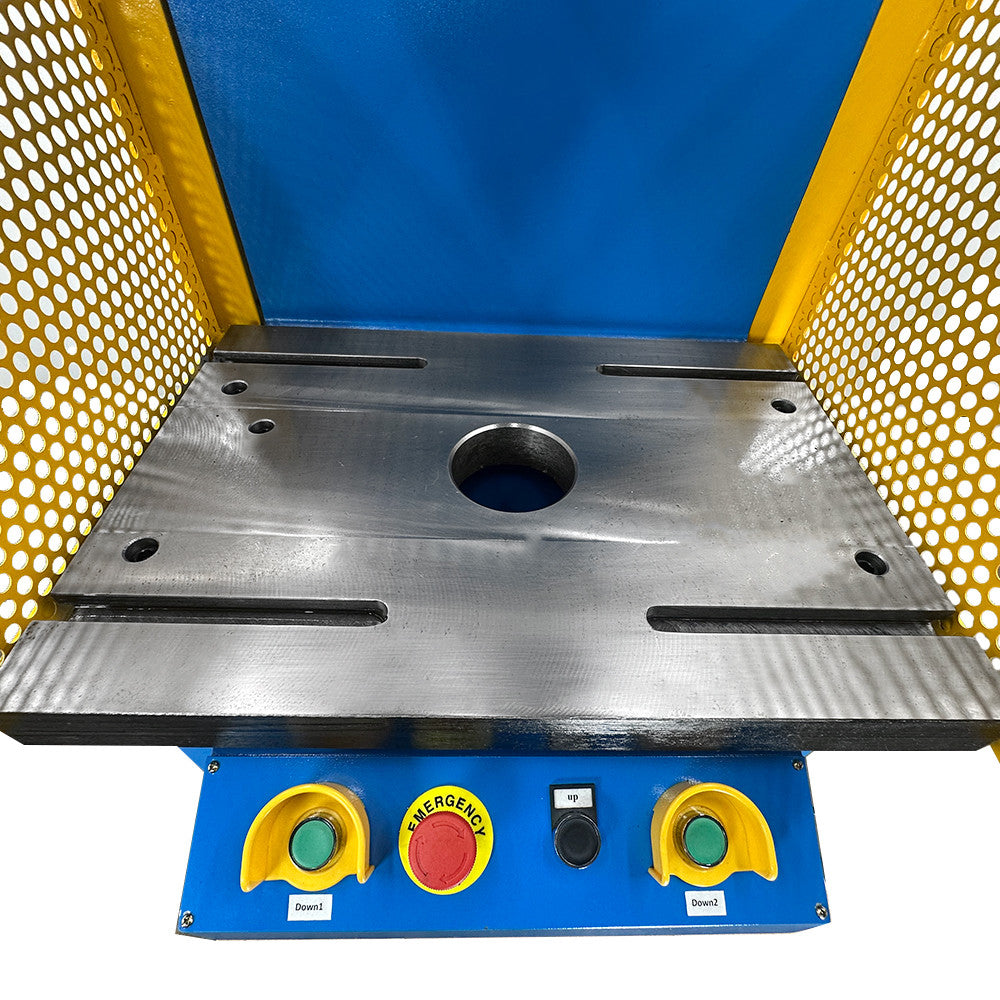

- Tables: 23" x 16"
- Table Center Hole Diameter: 3-7/8"
- Height from Ground to Table: 26-1/2"
- Speed:
*Fast down = 25mm/S
*Slow down = 5mm/S
*Return = 30mm/S - Fast Declined Speed for Slider: 24mm/S
- Pressing Speed for Slider: 6mm/S
- Return Speed for Slider: 28mm/S
- Method for Speed Increasing: Double Pump (3.36L+8.4L)
- Safety Measure: Light Curtain, Double Hand Control, CE Standards, 3P+E Rating
- T-Slot Size: 1-1/8" x 3/4"

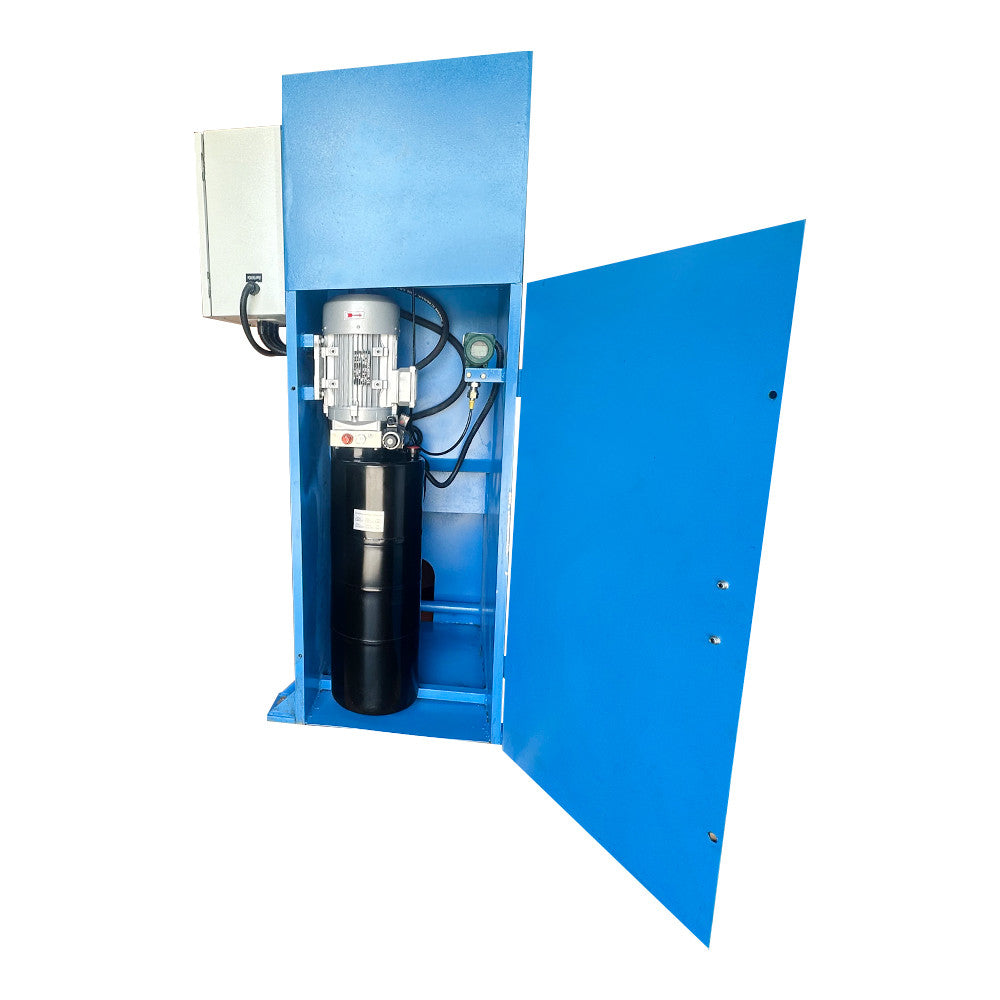

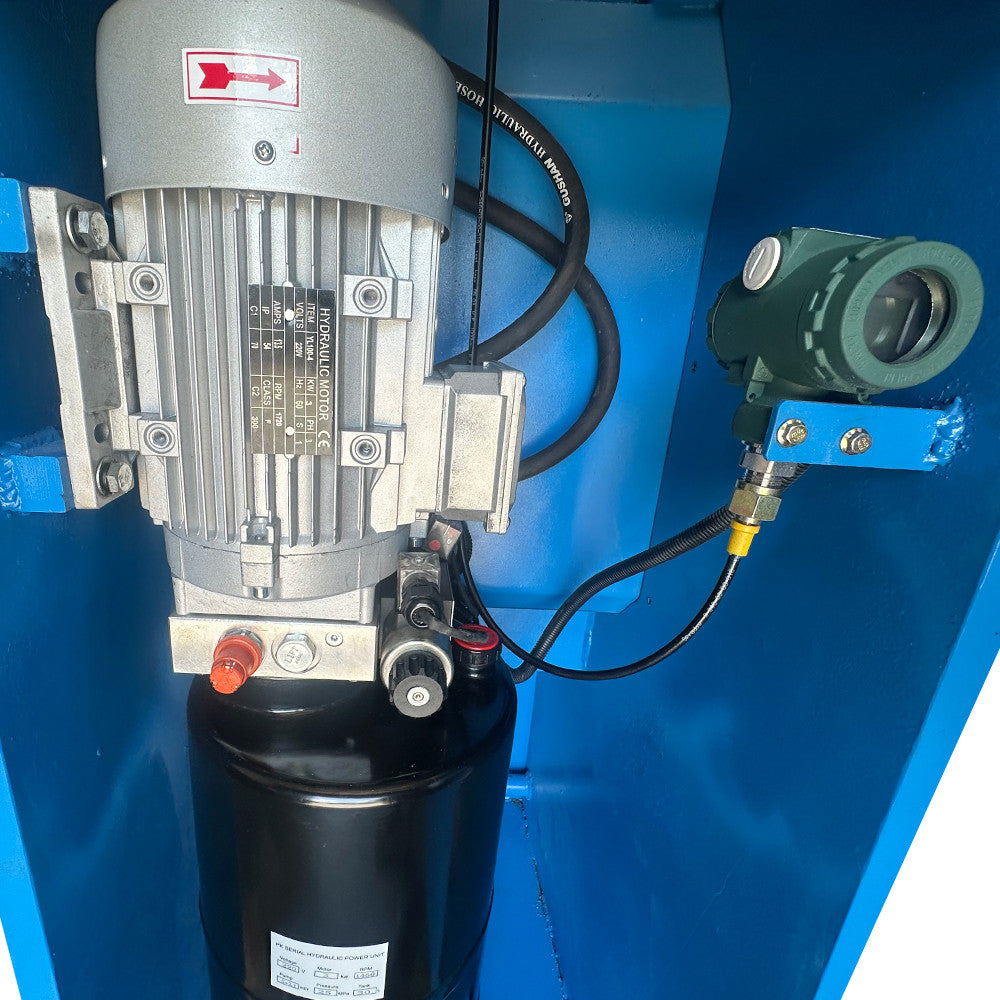

- Hydraulic Motor:
*220 Volt
*4HP (3 KW)
*1,720 RPM
*3-Phase

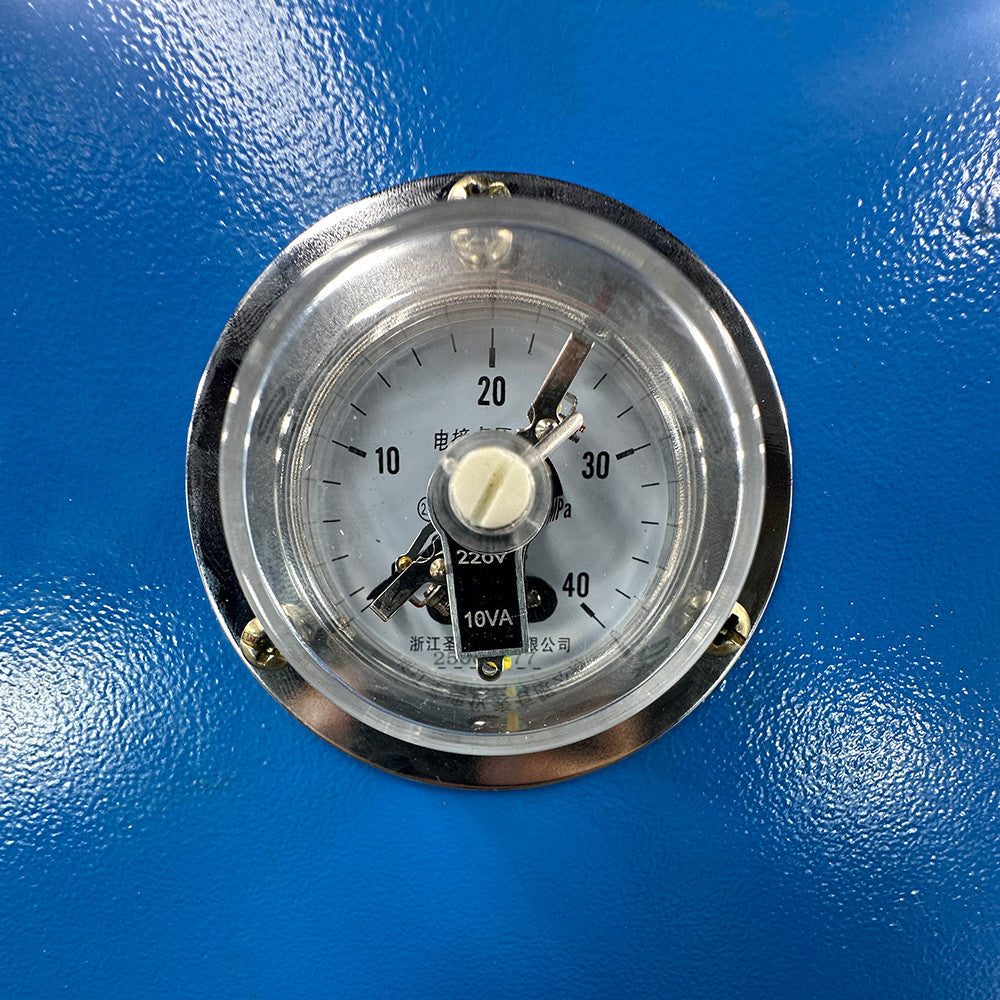

*13.5 Amps - Pressure: 25 mpa
- Oil Tank: 30 Liter
- Overall Dimension: 27-1/2" x 35" x 69"
- Weight G.W. / N.W. : 1,848 lbs / 1,720 lbs *Estimate Only*
- Quantity: 1
- Large Freight or Over Sized Item
