Description
- Brand New

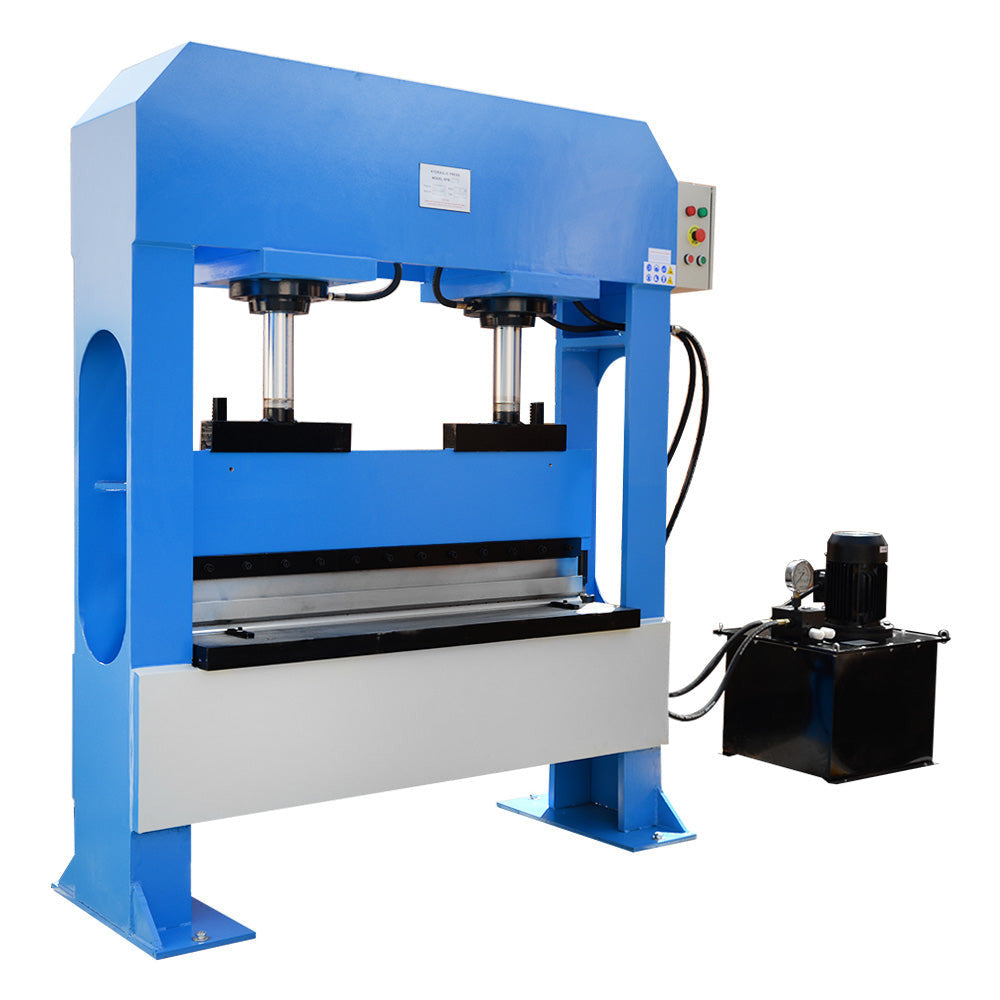

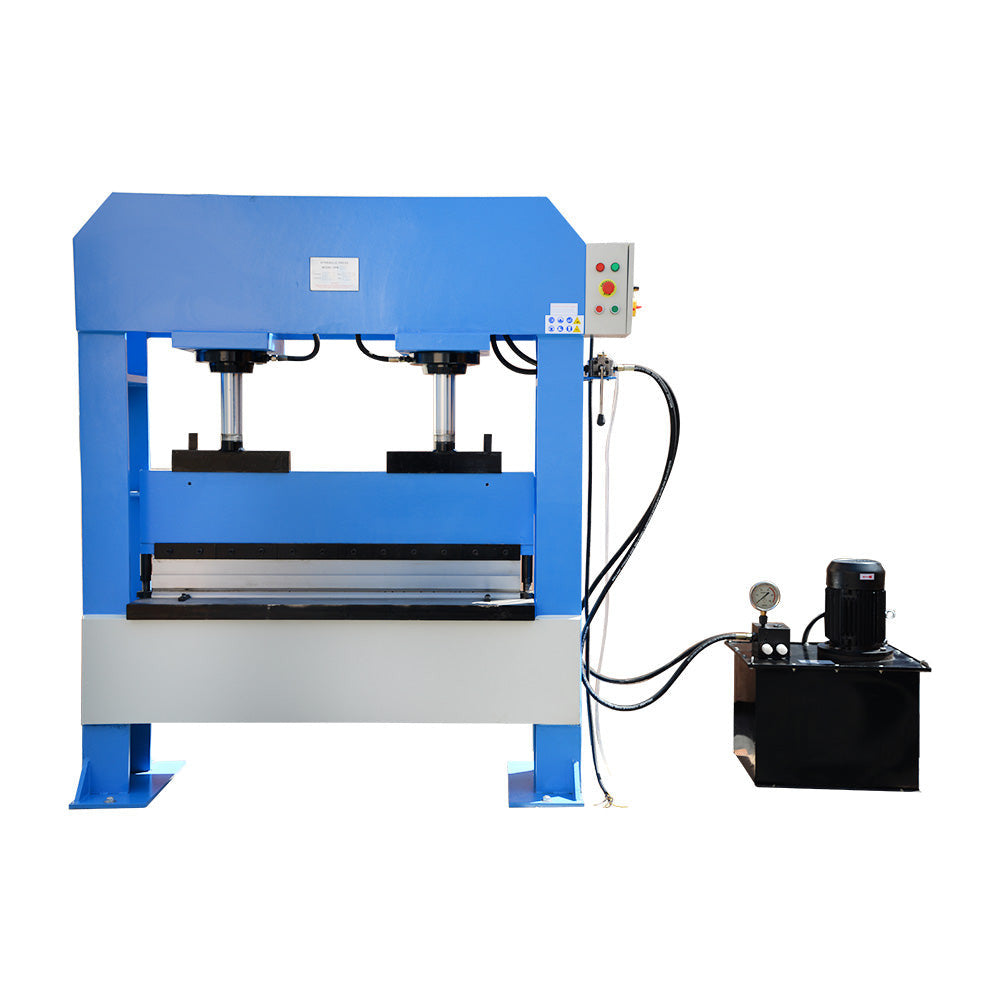

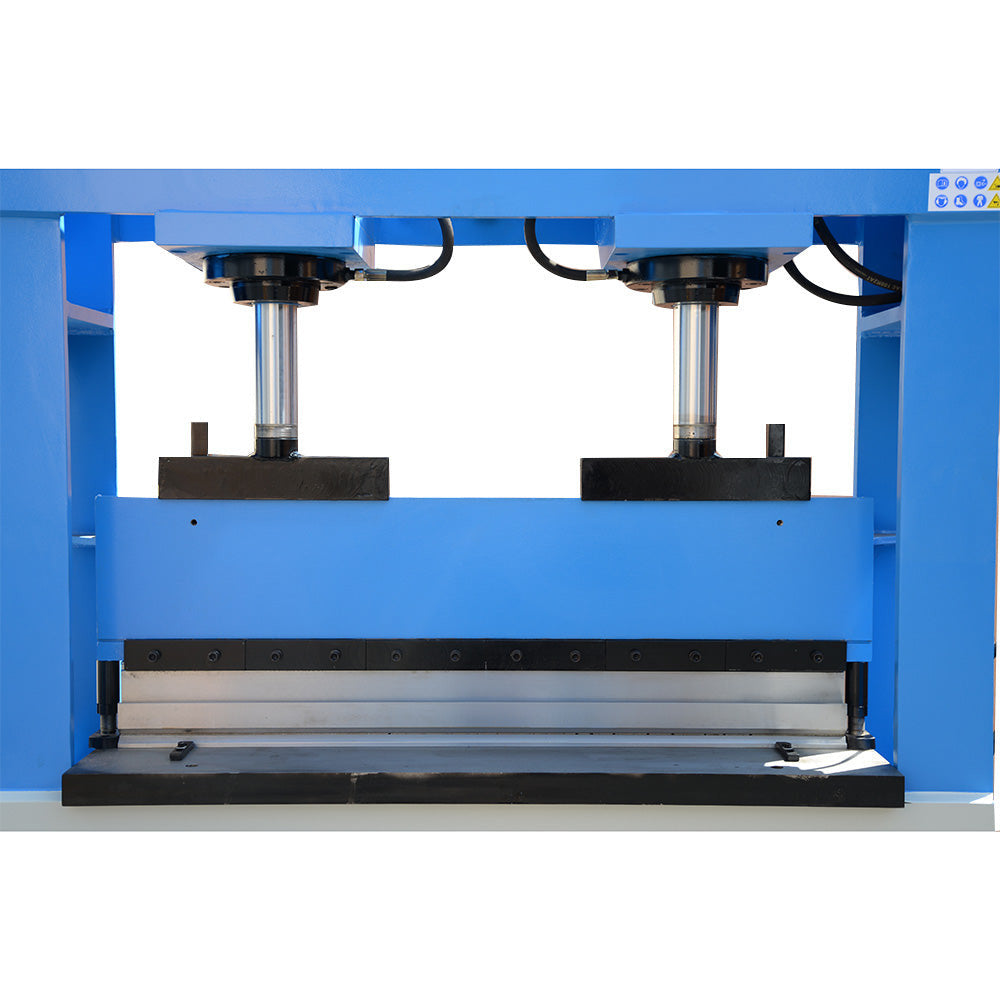

- 2 Cylinder 100 Ton Hydraulic Press Brake
- Capacity: 100 Ton (1000kn)

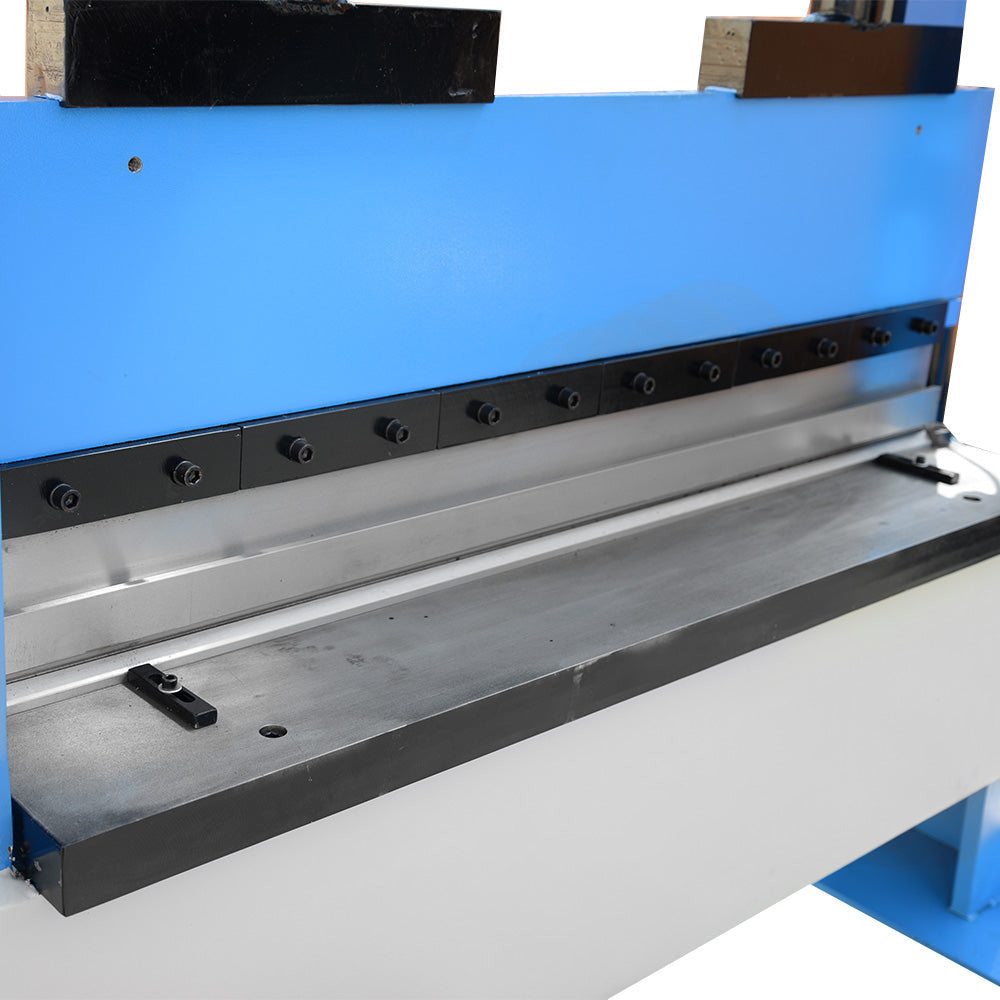

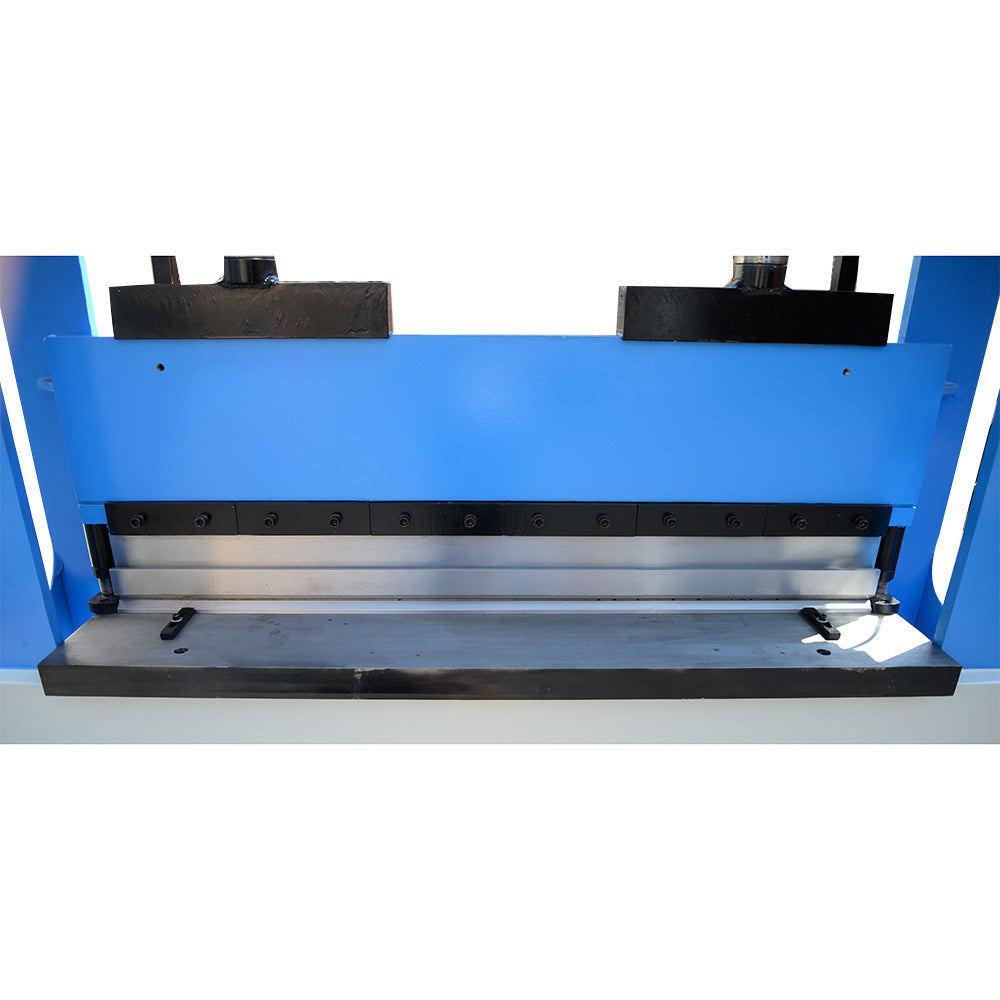

- Max. Length (Blade): 51-1/4"
- Max. Thickness: 3/8" (10mm)

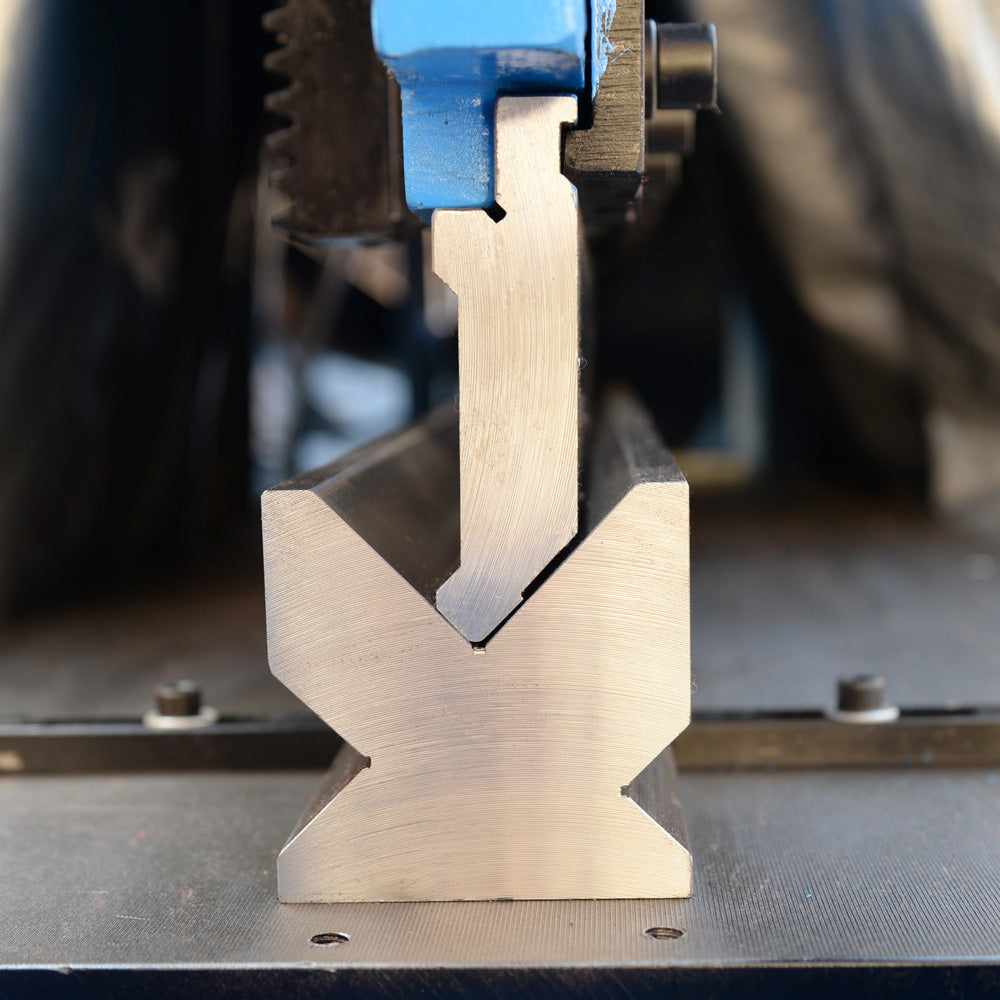

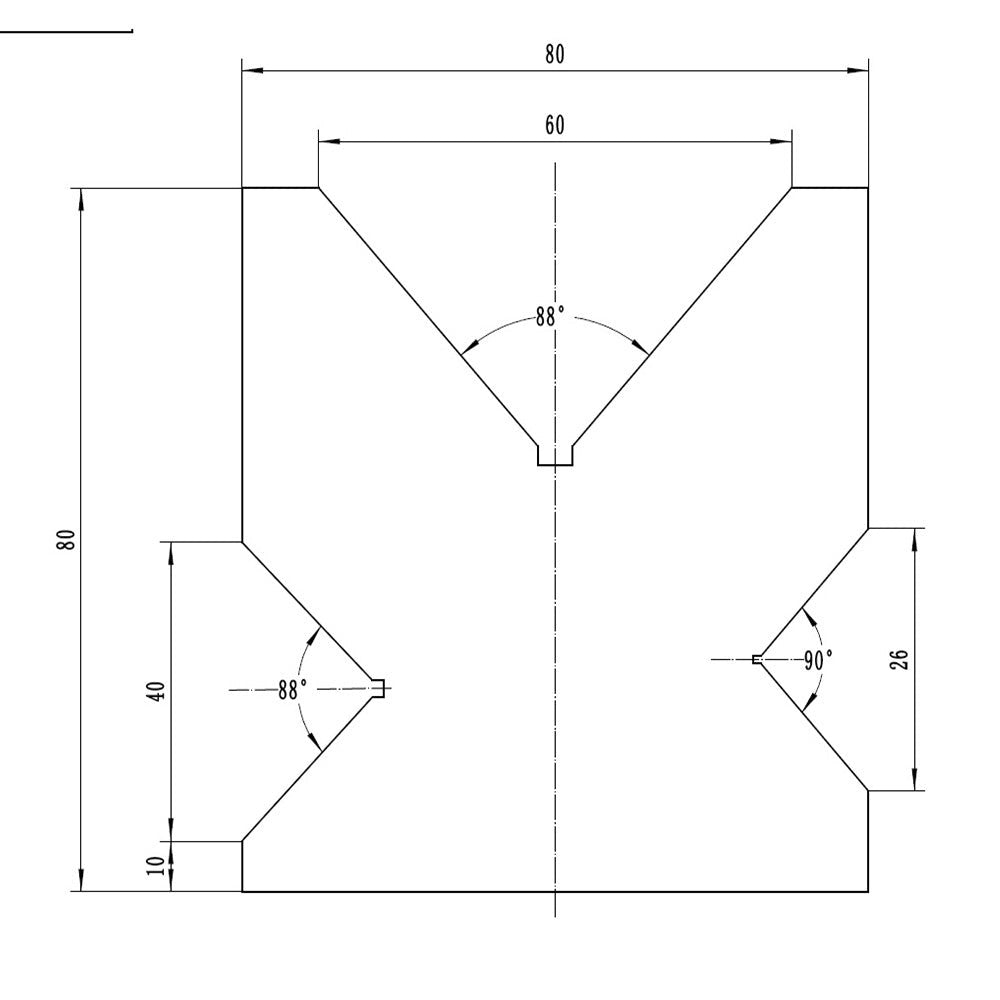

- V-Block: 51-1/4" x 3-1/4" x 3-1/4"
- TONNAGE: 502KN X 2 = 1004 KN.

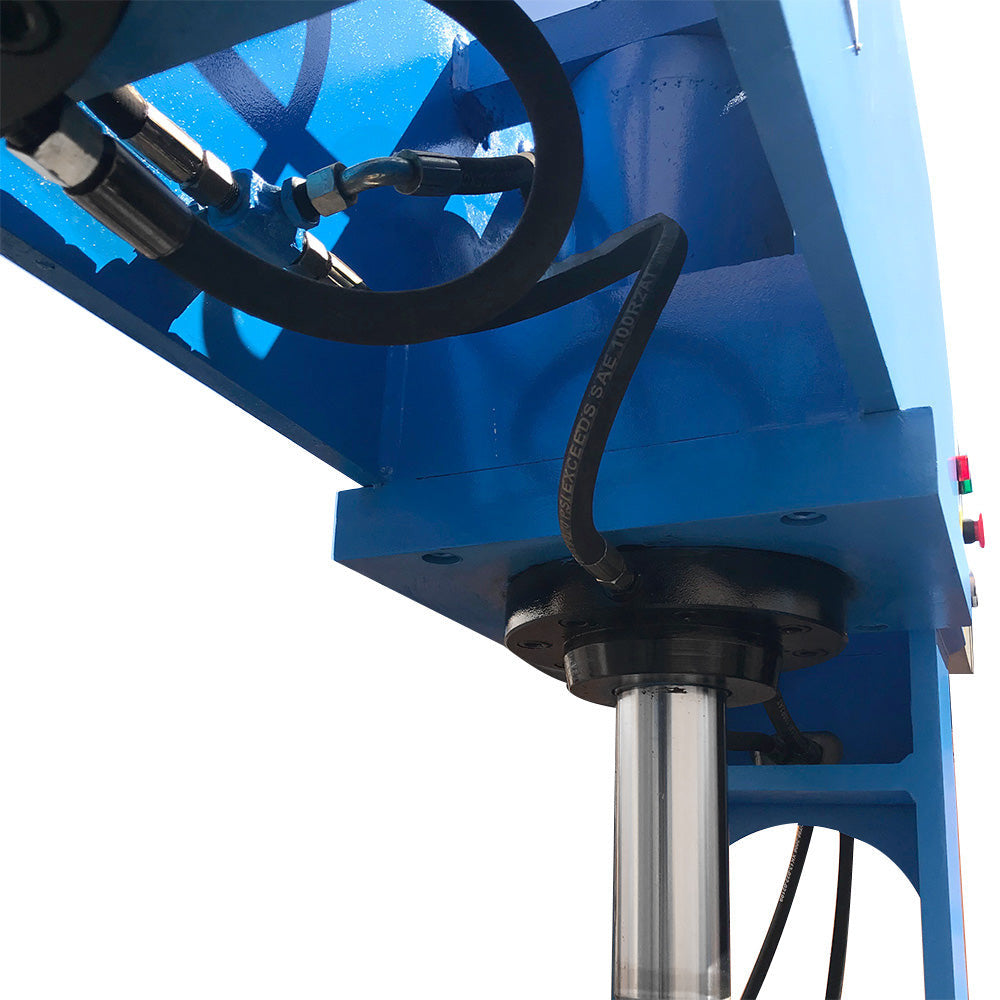

- Cylinder Max Pressure 25MPA

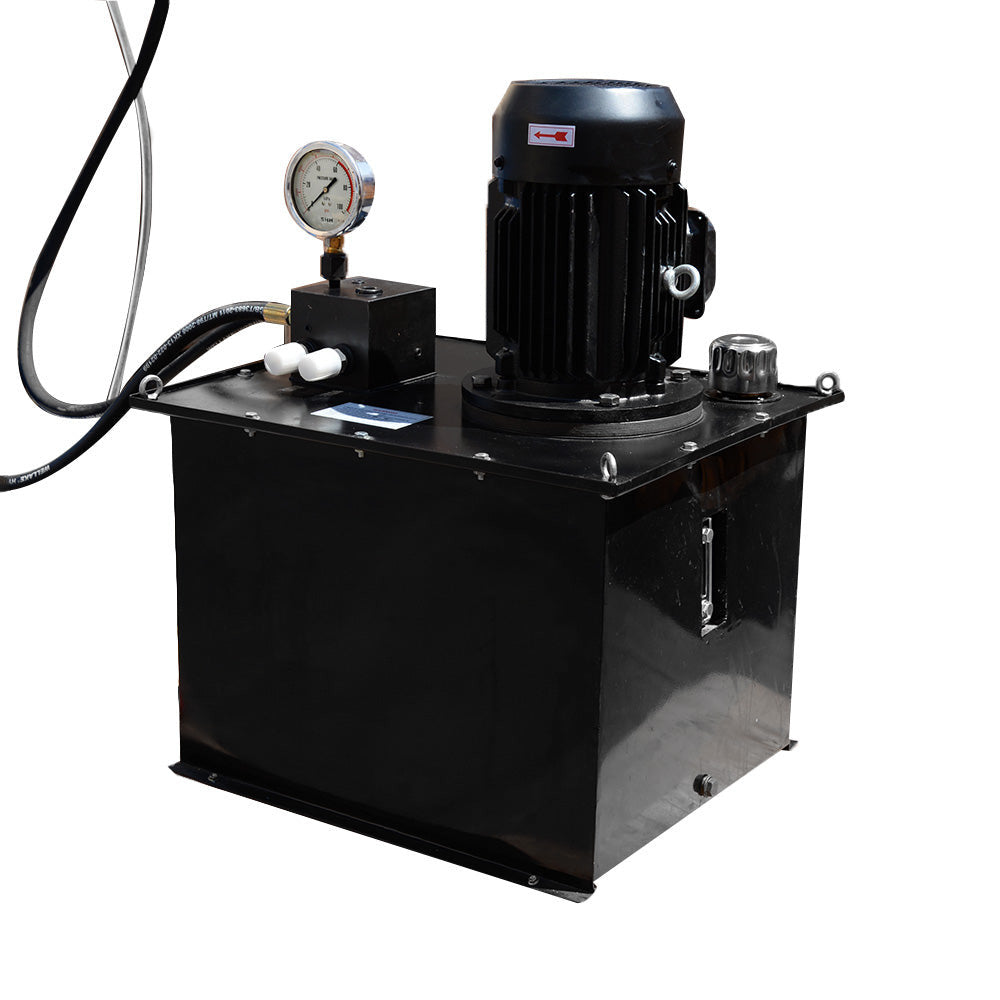

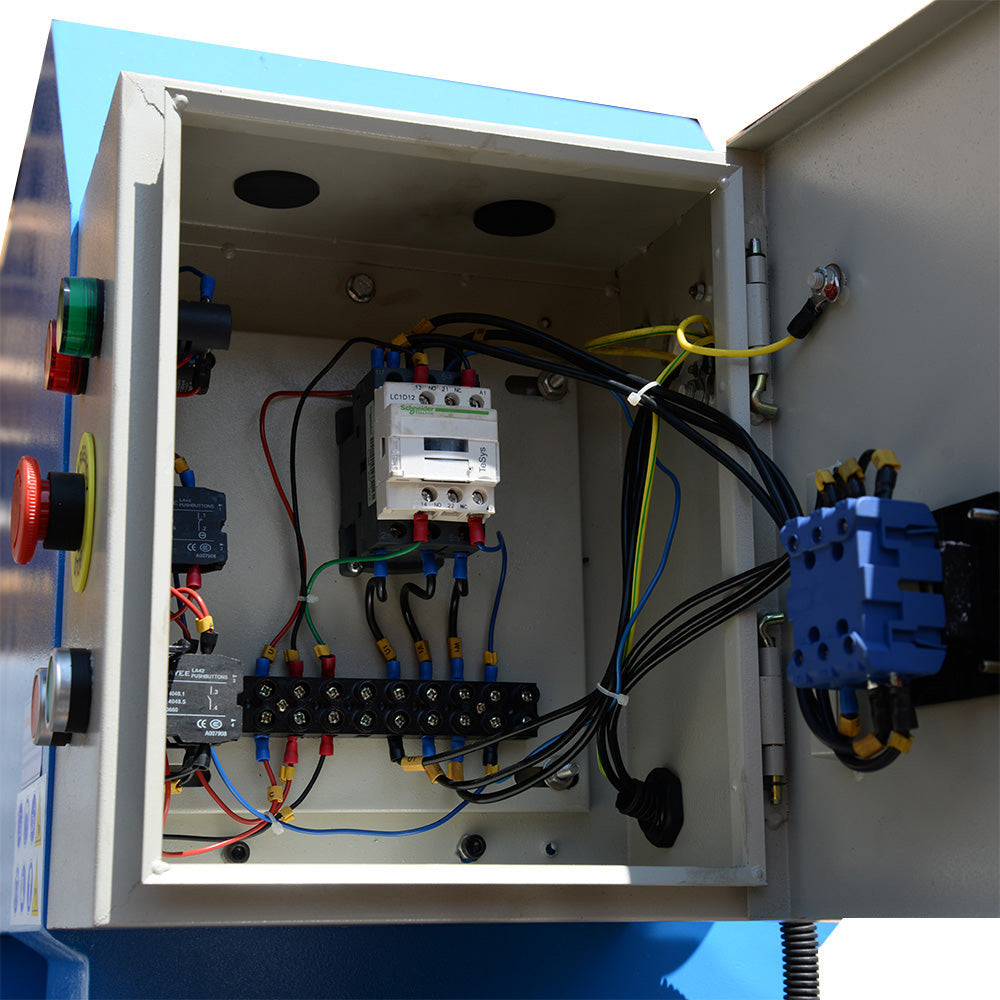

- Hydraulic Motor:
*220 Volt
*4HP (3 KW)
*1,720 RPM
*3-Phase
*11.8 Amps - Pressure: 31.5 mpa
- Oil Tank: 120 Liter (31 gallon)
- Piston Travel: 9.84" (250mm) + 15.94" (405mm)
- Worktable Size: 54-1/2" x 17-3/4" x 2-1/8"

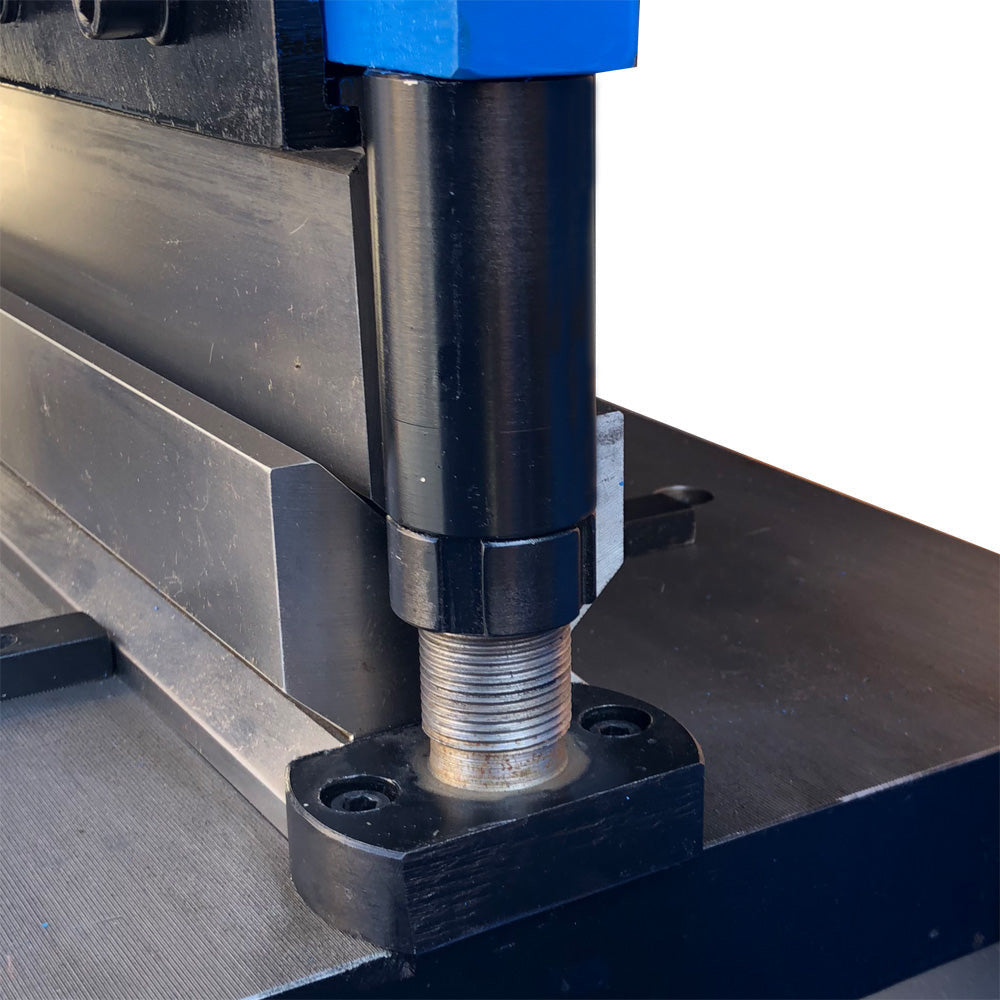

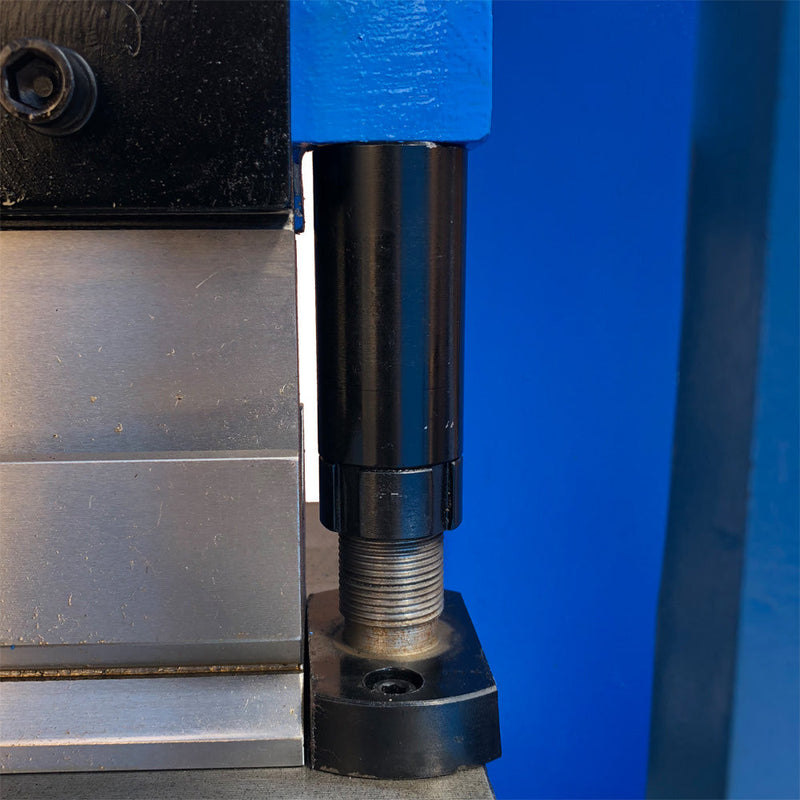

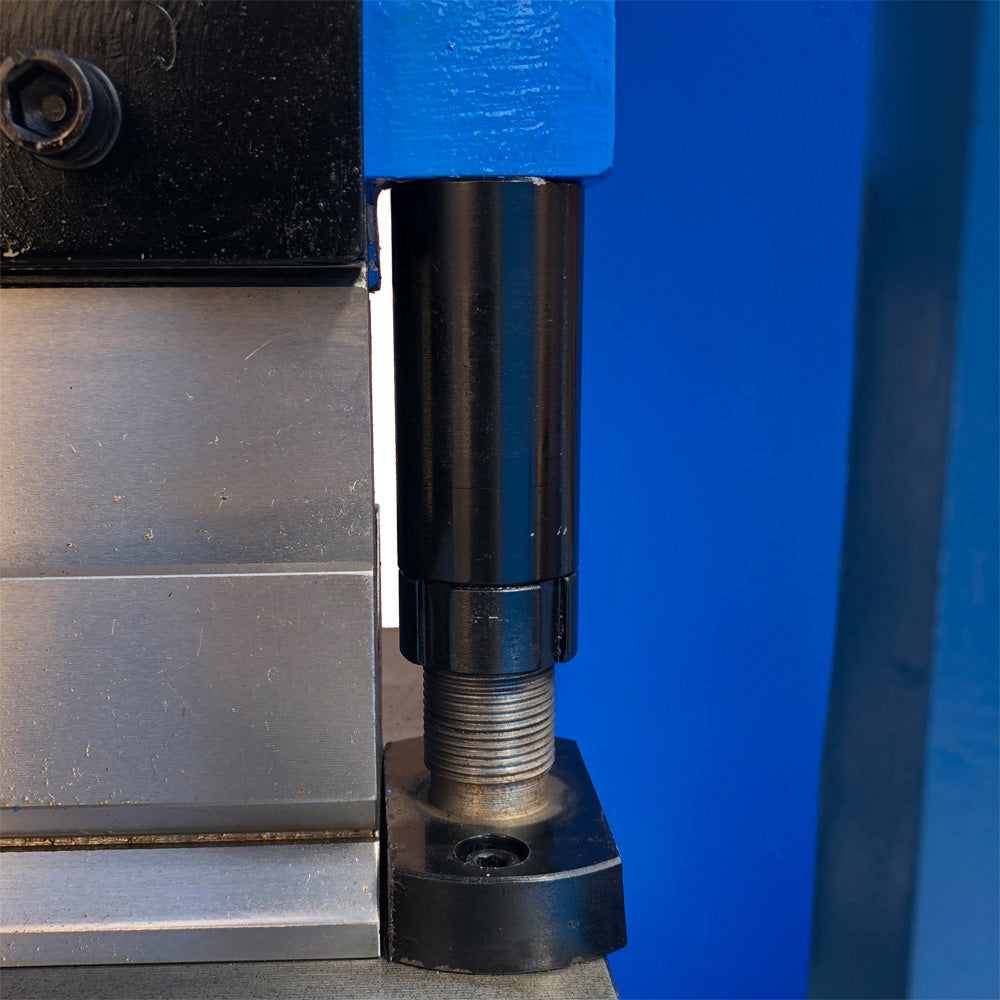

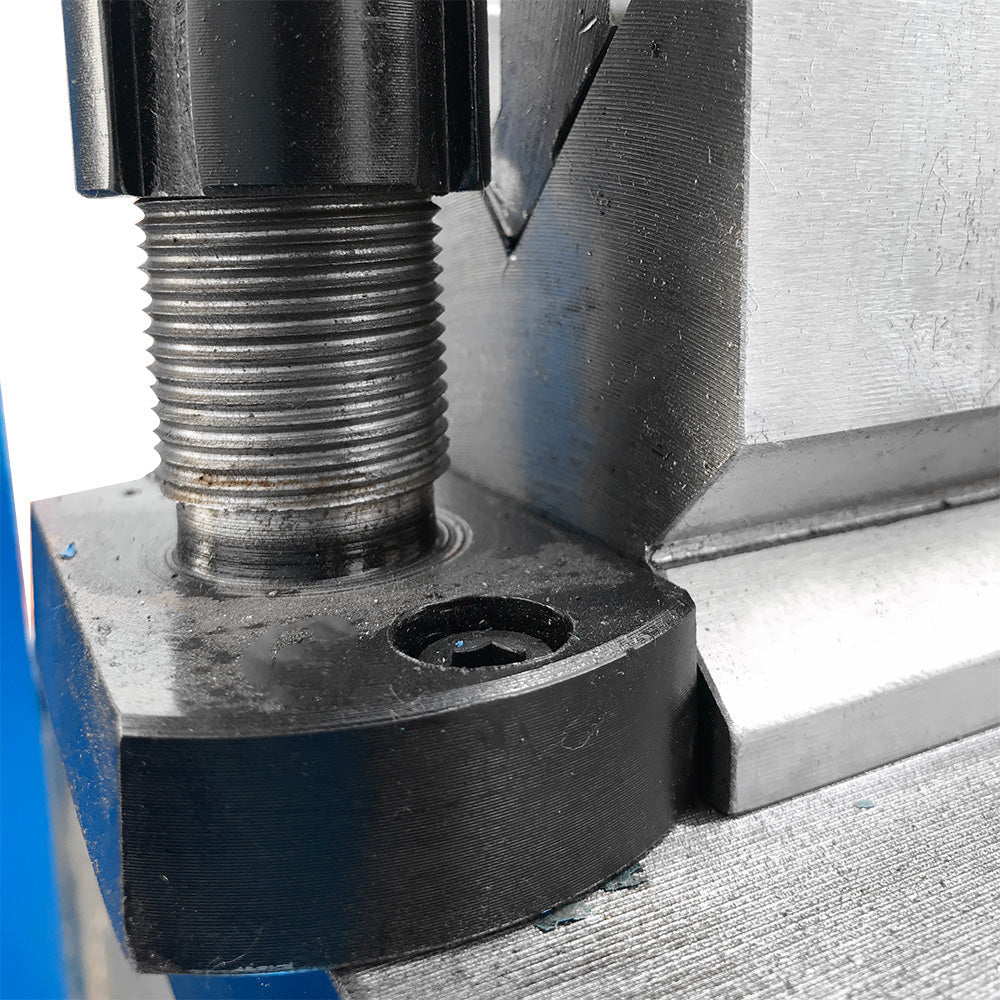

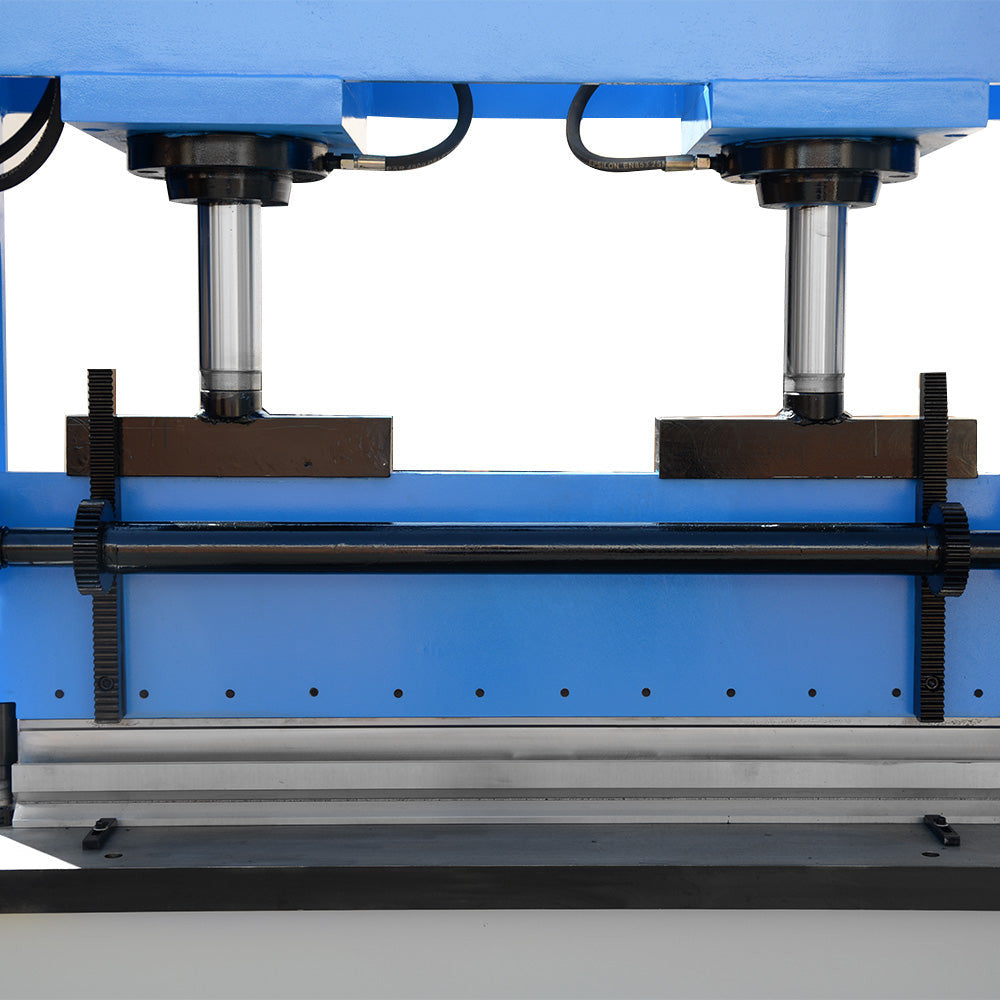

- Angle Micro-Adjustment

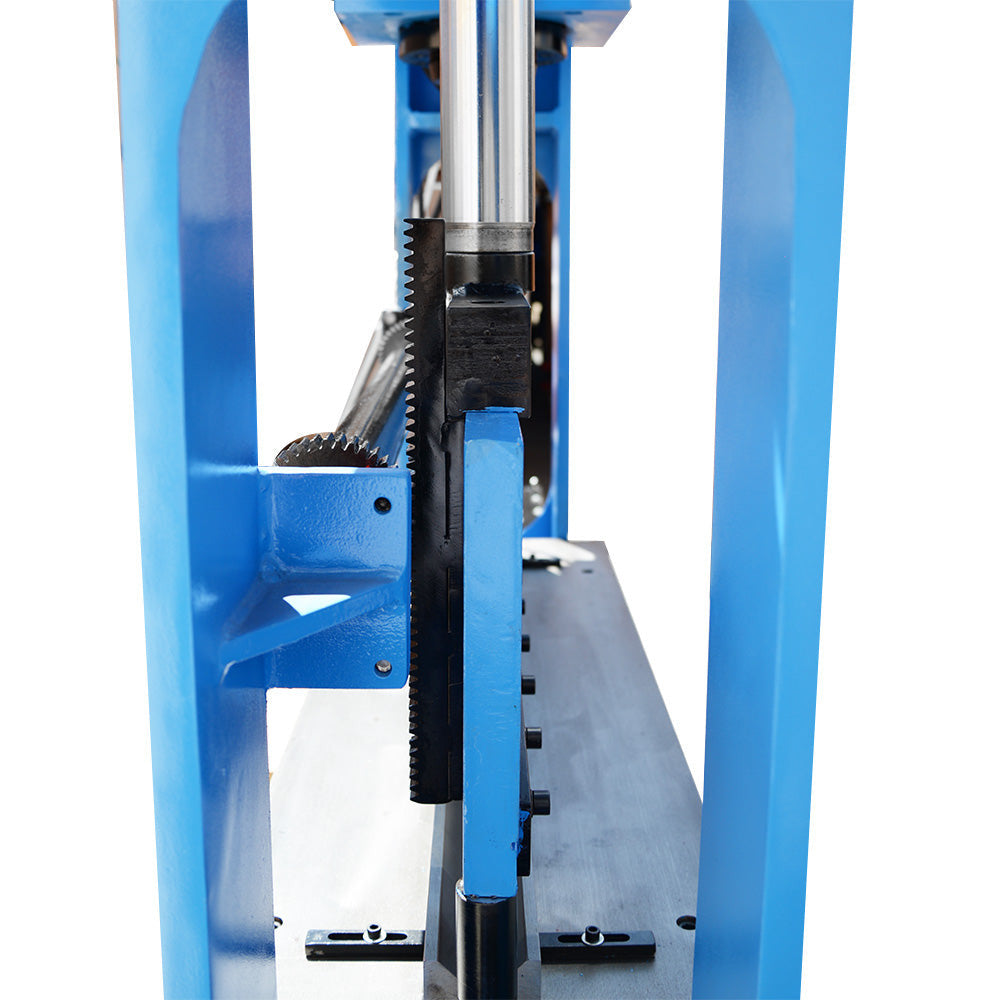

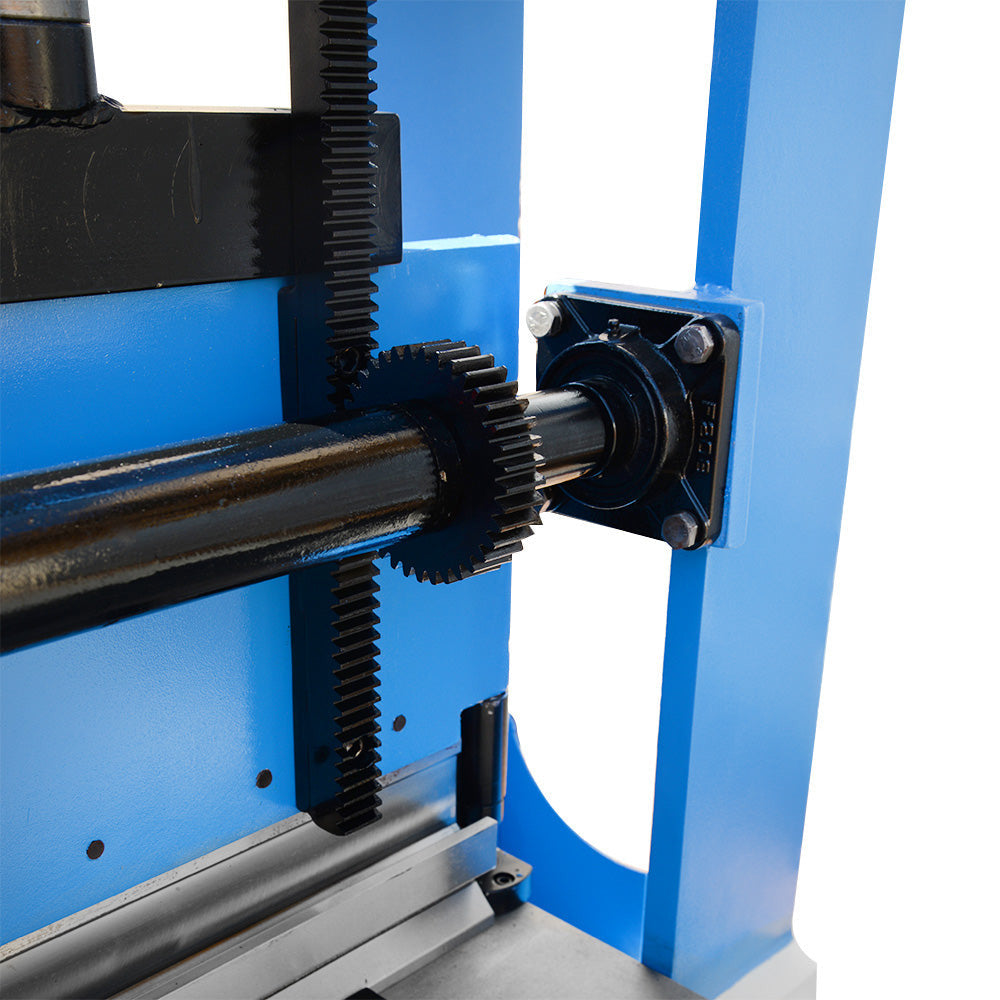

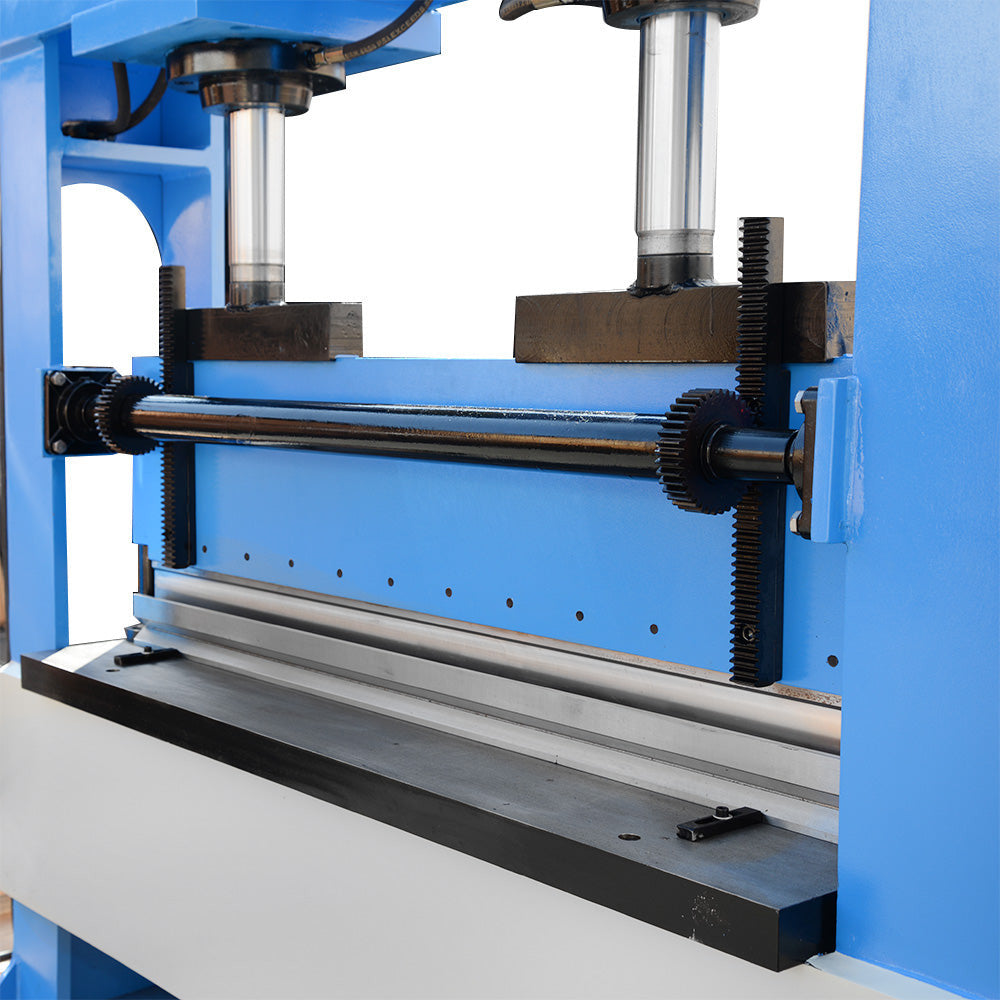

- Synchronous Device
- Overall Dimension:
Press: 75" x 24" x 81" (Crate: 84" x 30" x 86") *Estimate Only*
Hydraulic Station: 23-1/2" x 19-3/4" x 30" (Crate: 28" x 24" x 39") *Estimate Only* - Weight G.W. / N.W. :
Press: 3,971 lbs / 3,729 lbs *Estimate Only*
Hydraulic Station: 280 lbs / 220 lbs *Estimate Only* - Quantity: 1
- Large Freight or Over Sized Item
