Description
- Brand New

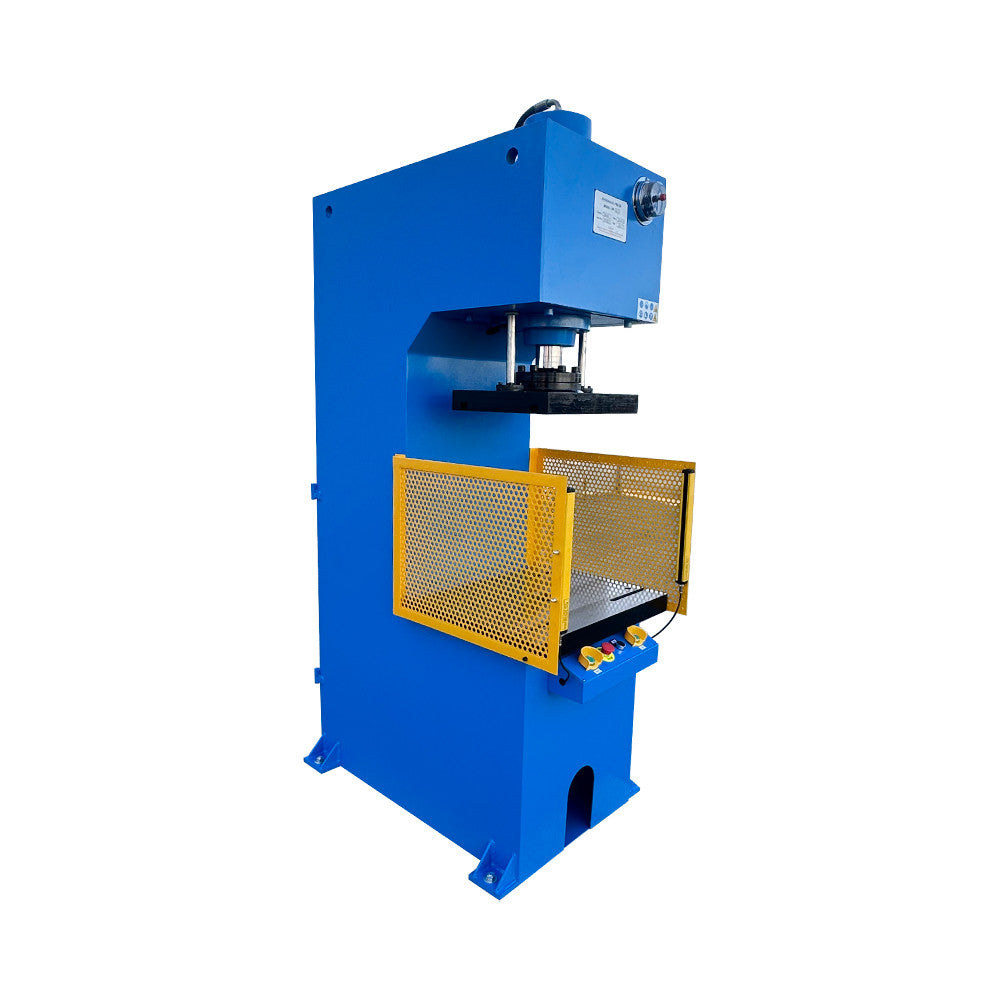

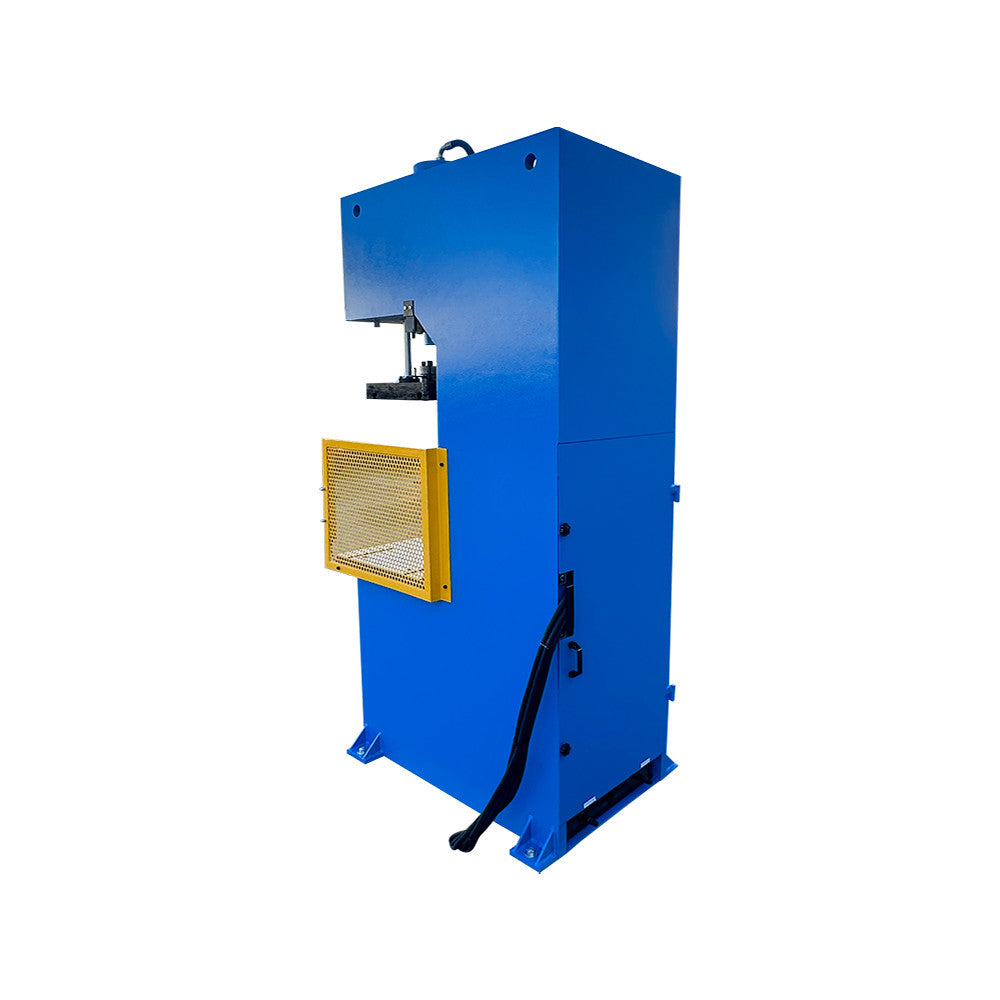

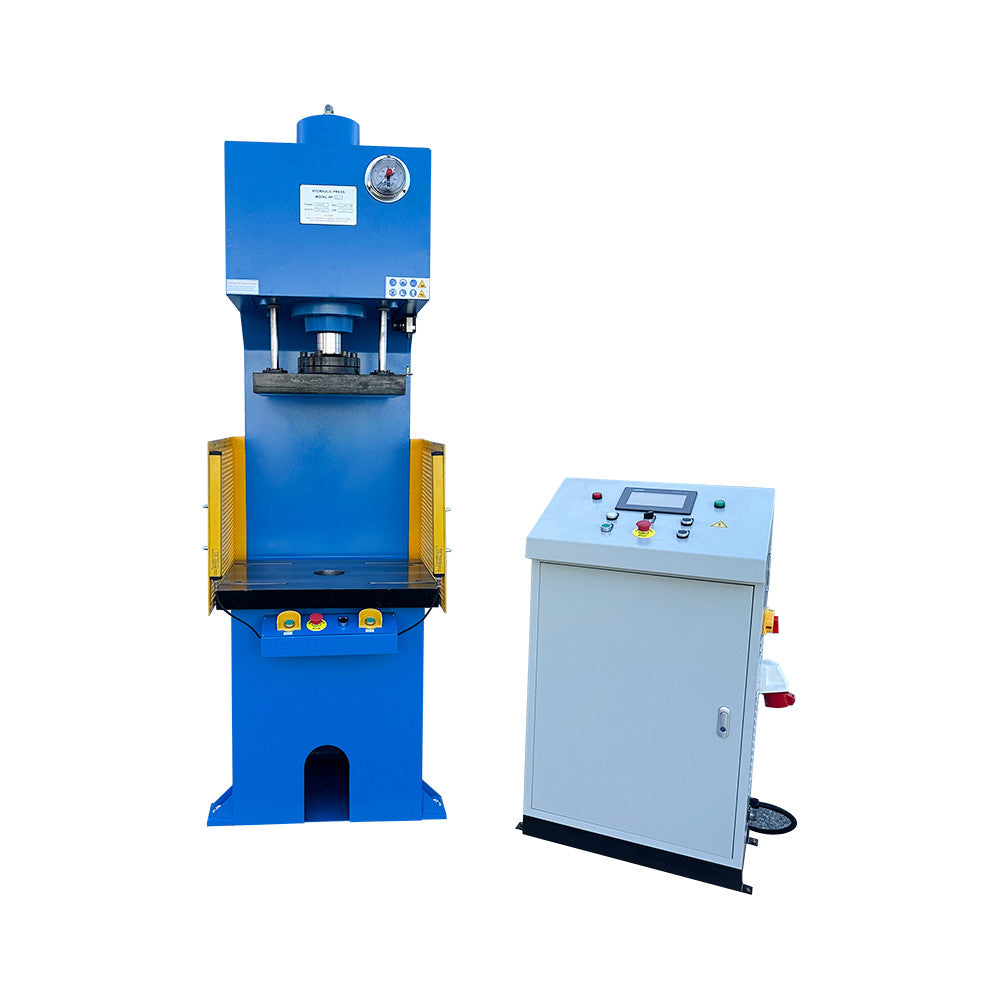

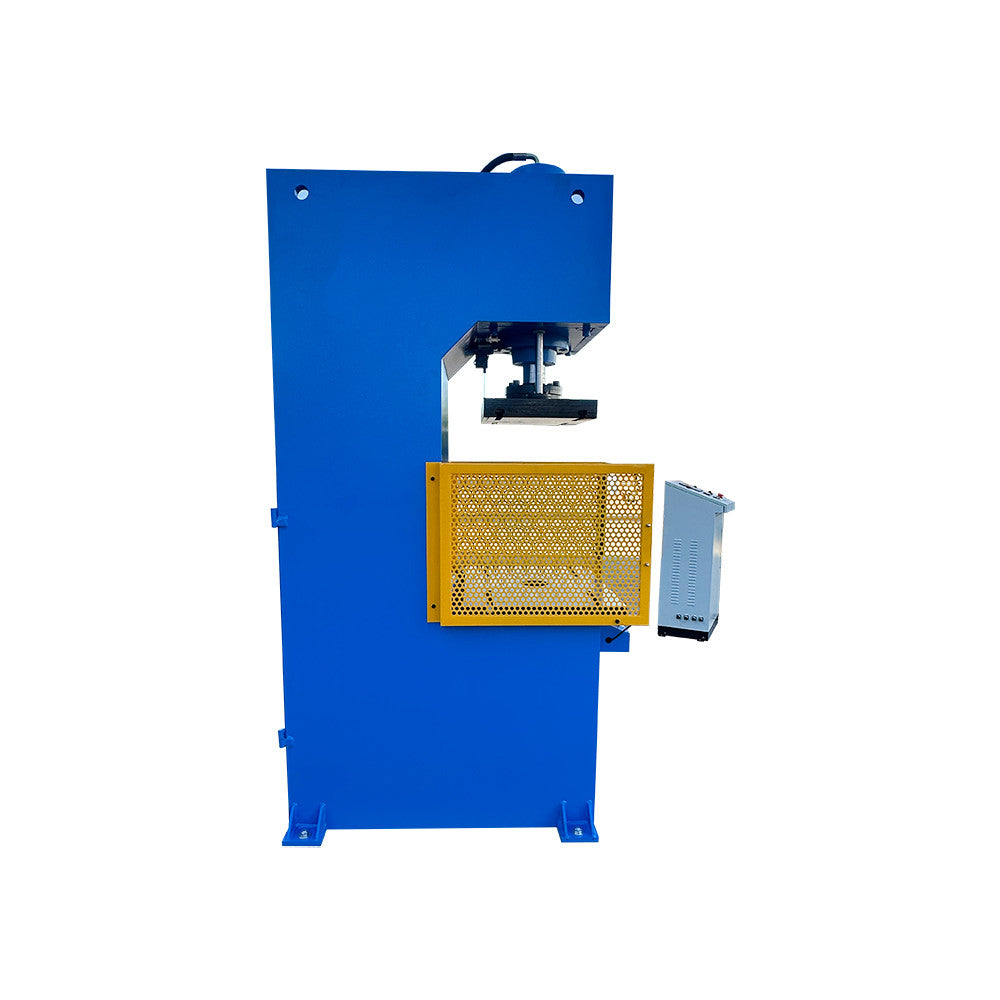

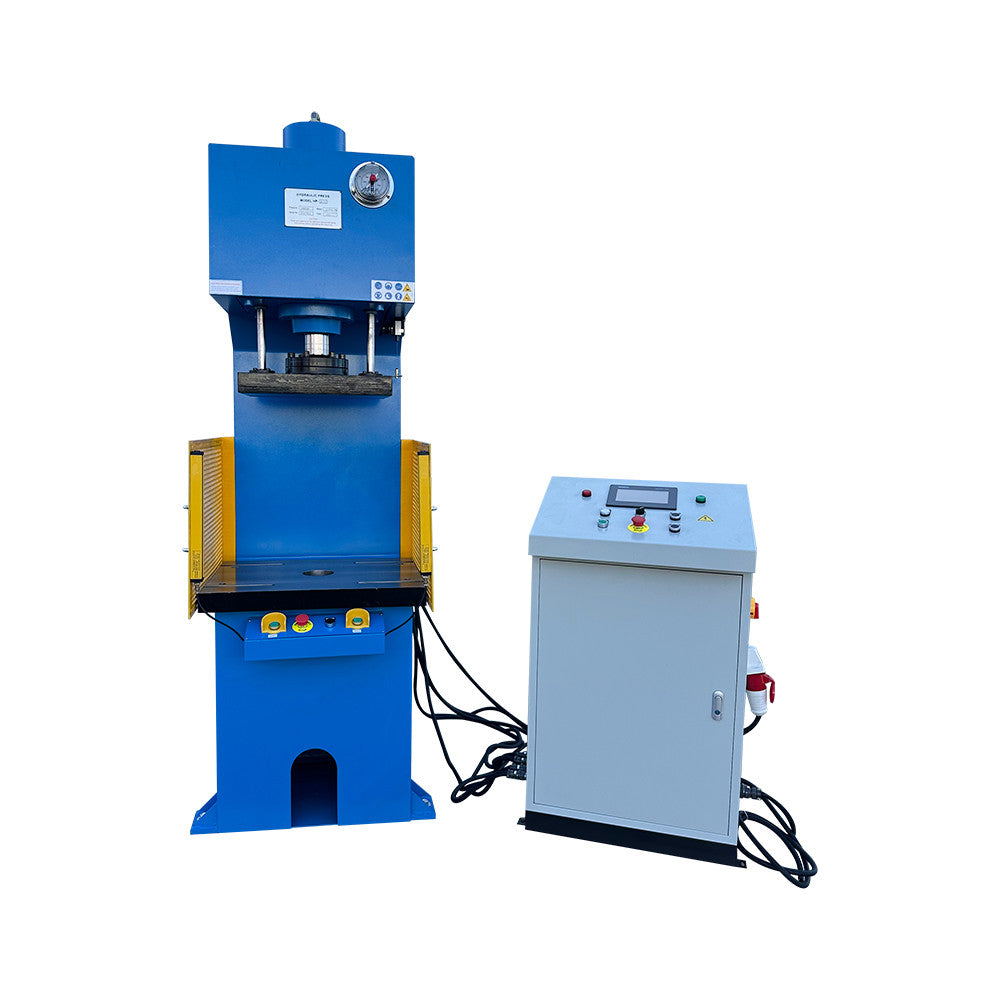

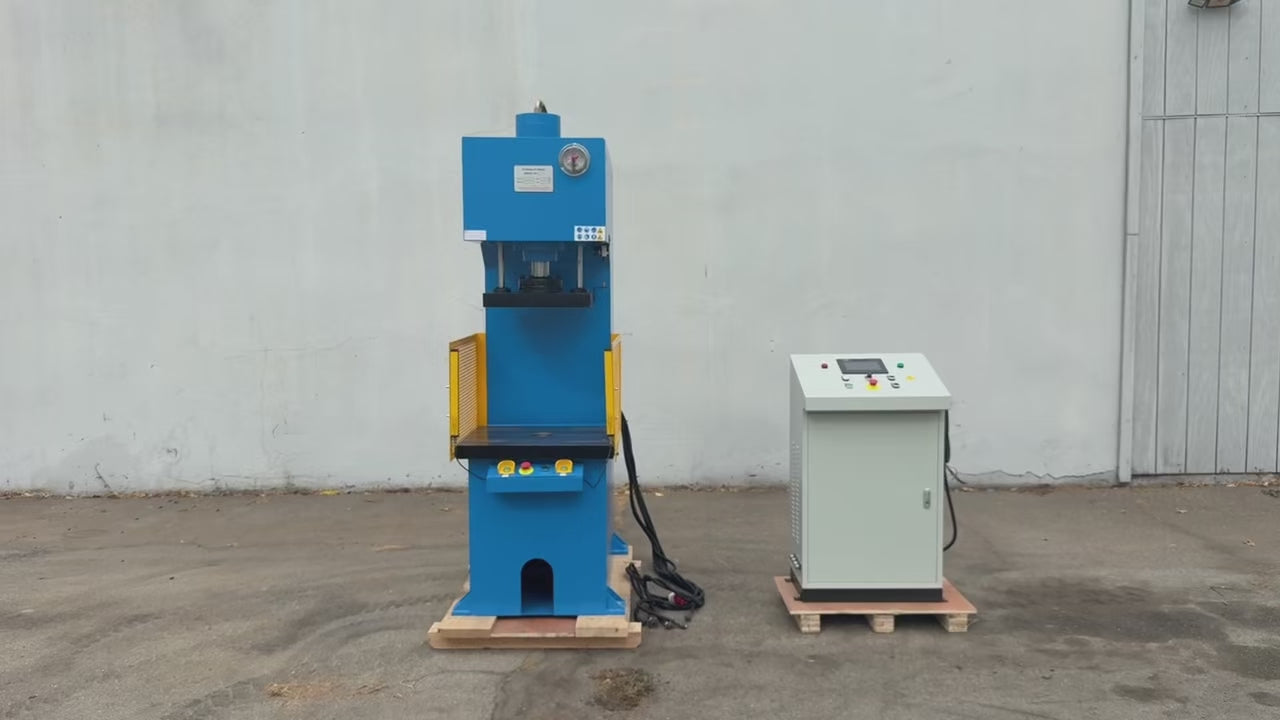

- CNC 50 Ton C-Frame Hydraulic Press

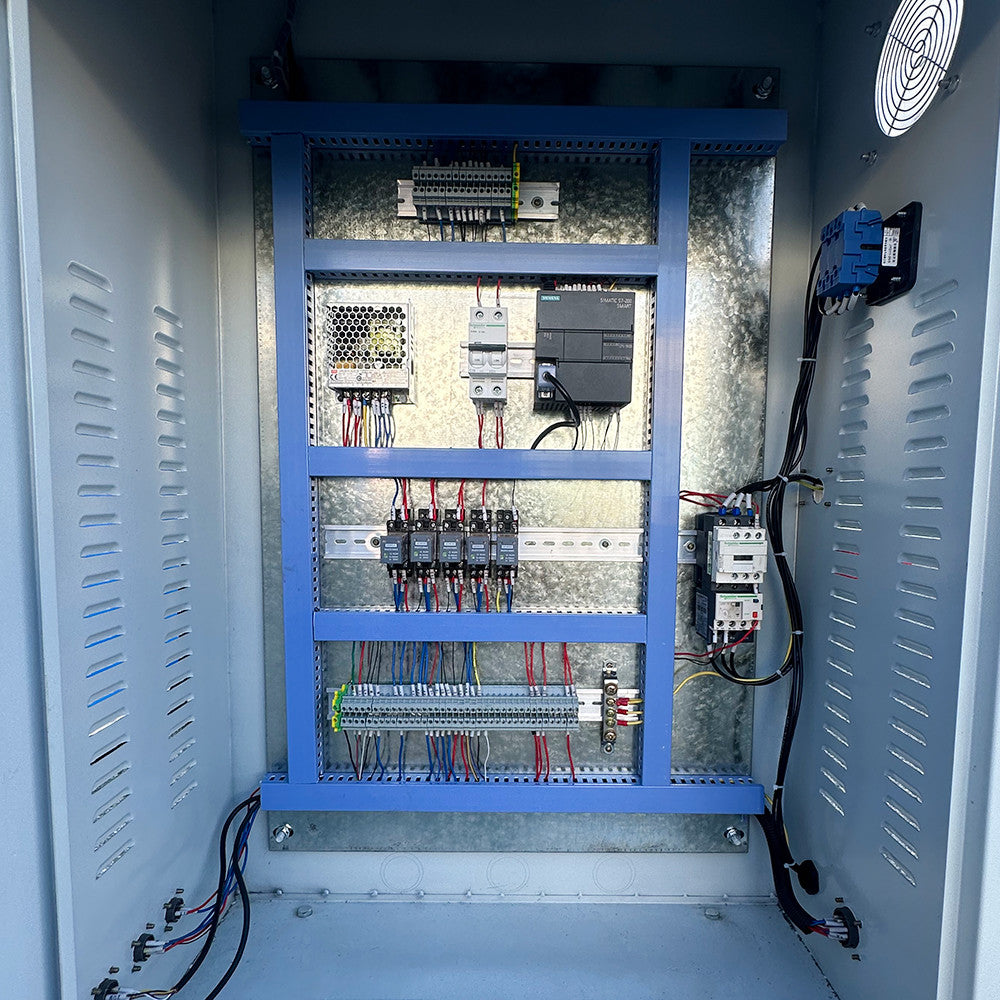

- Control Methods: Manual, Automatic PLC, Grating Ruler Travel, Pressure and Speed Can Be Set
- Capacity: 50 Ton (500kn)
- Max Opening: 23-5/8" (600mm)
- Travel / Stroke: 15-3/4" (400mm)
- Working Area Parameters: 26"L x 23"W x 22"H

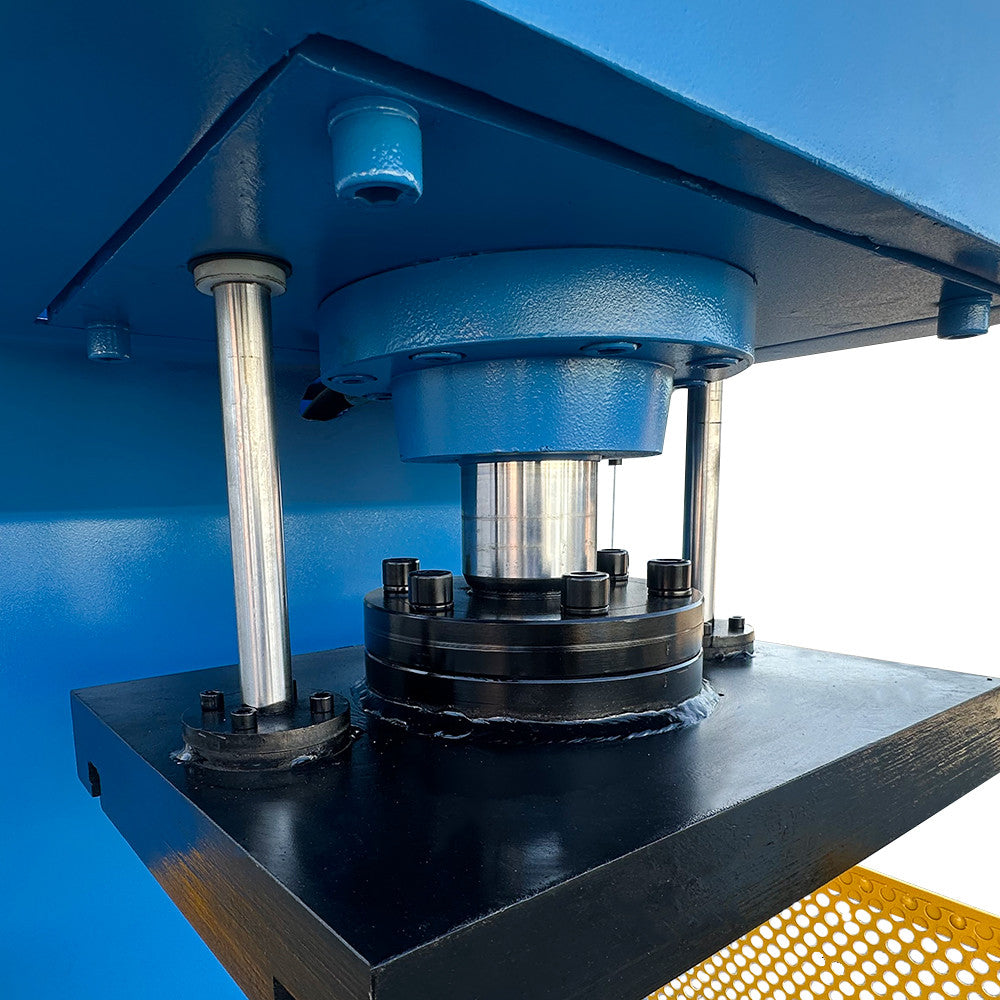

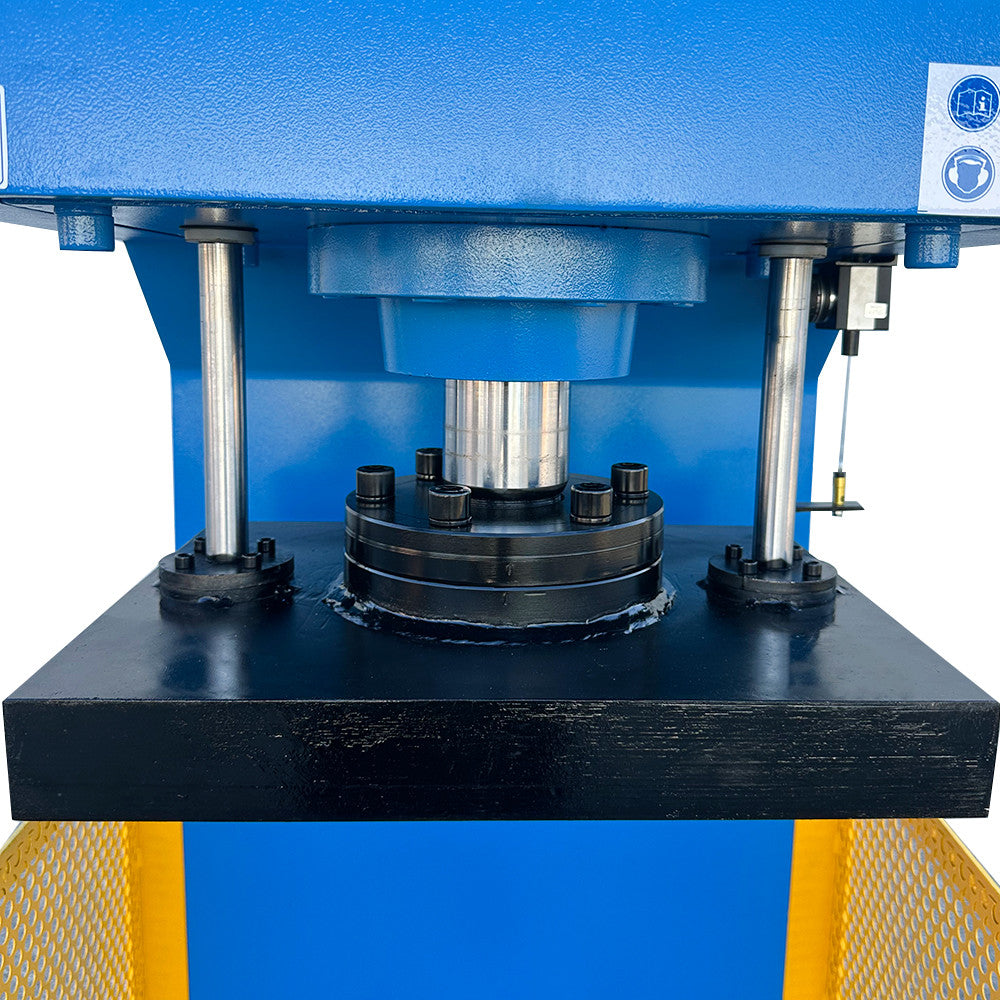

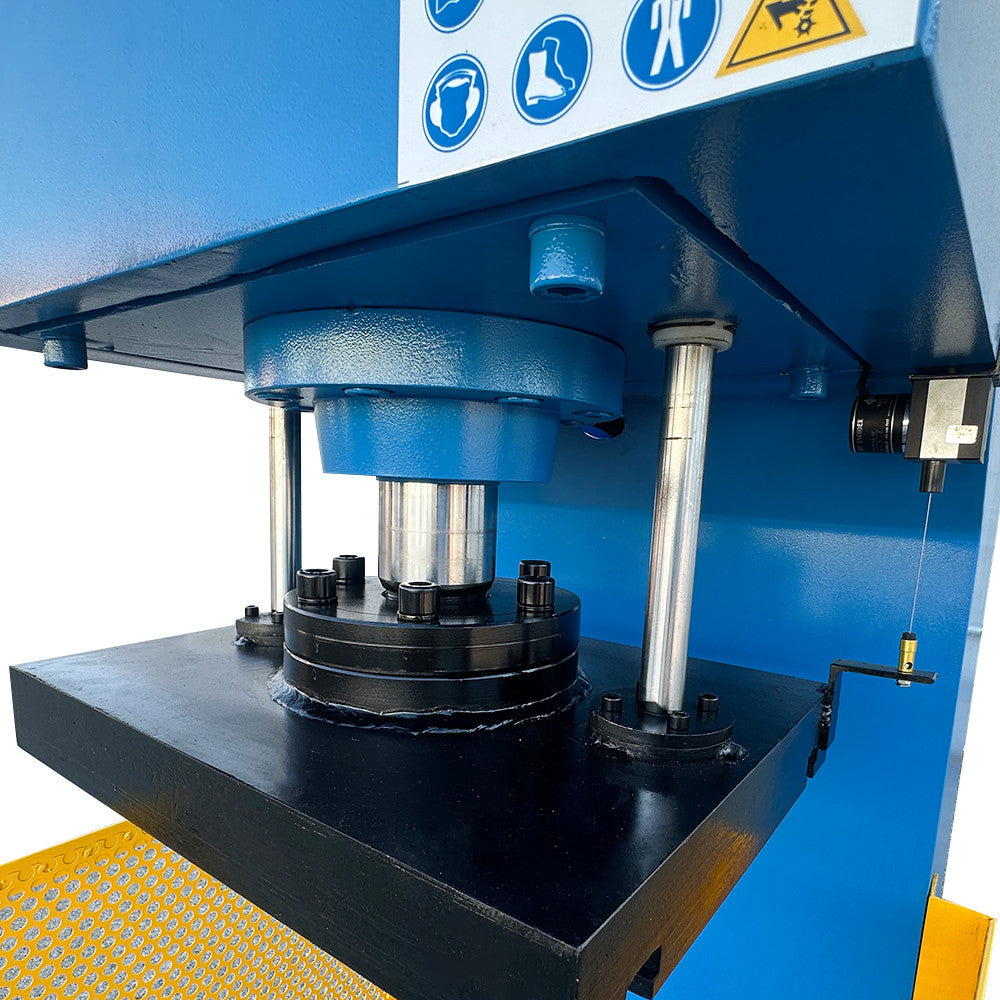

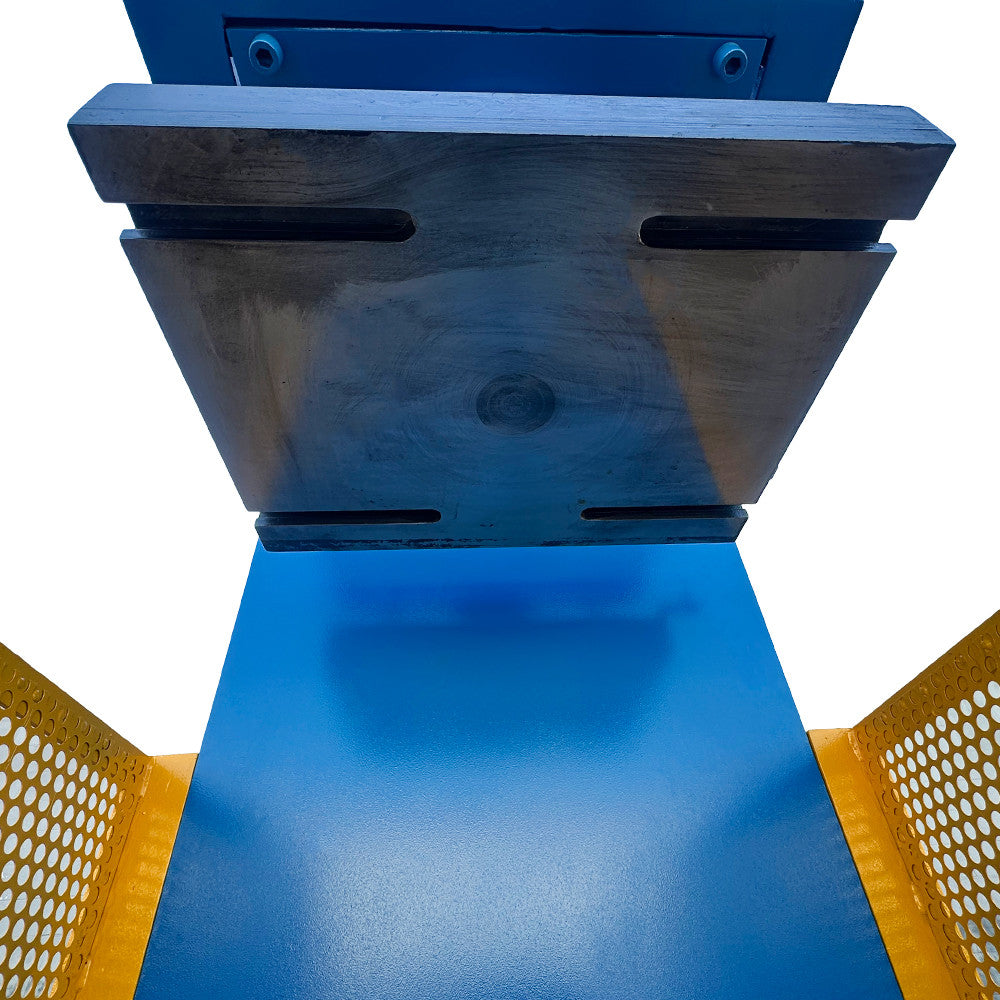

- Press Plate: 18" x 14"

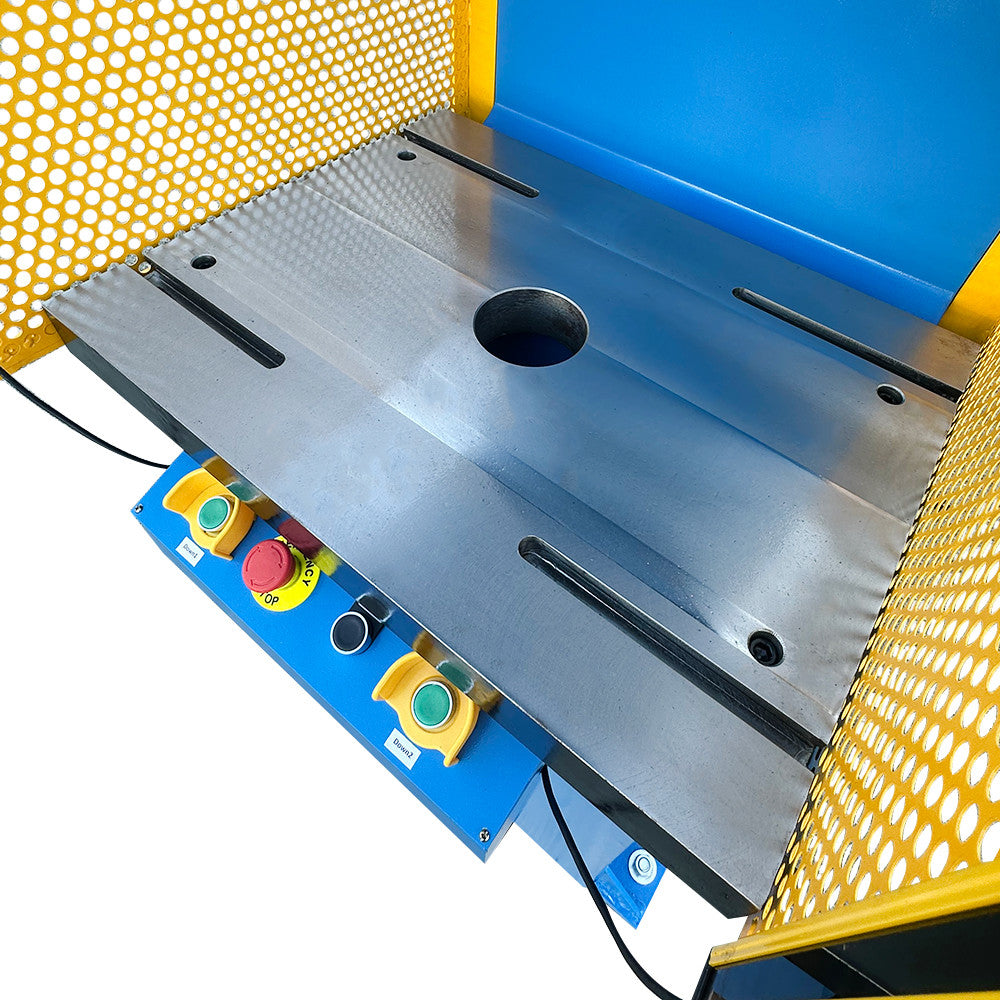

- Table: 26" x 20"
- Table Center Hole Diameter: 3-7/8"
- Height from Ground to Table: 30"
- Speed:
*Fast down = 25mm/S
*Slow down = 5mm/S
*Return = 30mm/S - Fast Declined Speed for Slider: 38mm/S
- Pressing Speed for Slider: 5mm/S
- Return Speed for Slider: 42mm/S
- Method for Speed Increasing: Double Pump (6.72.L+42L)

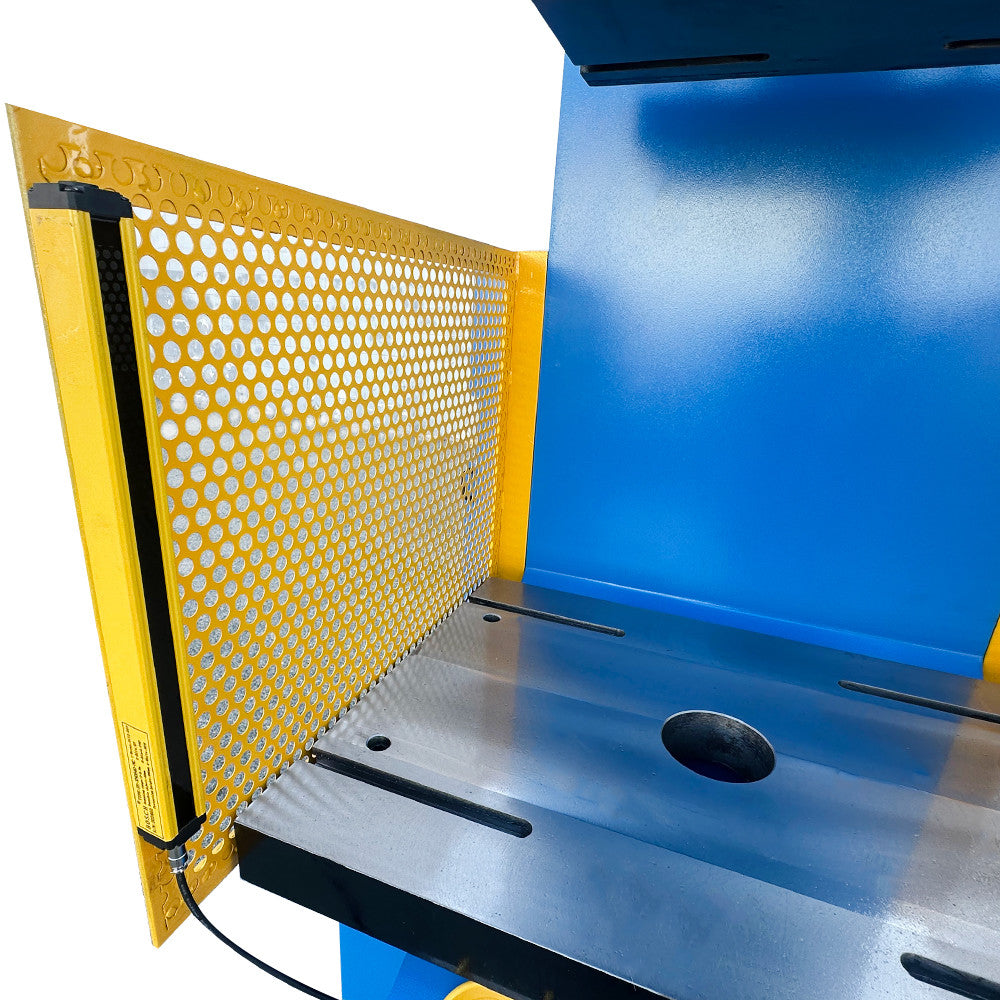

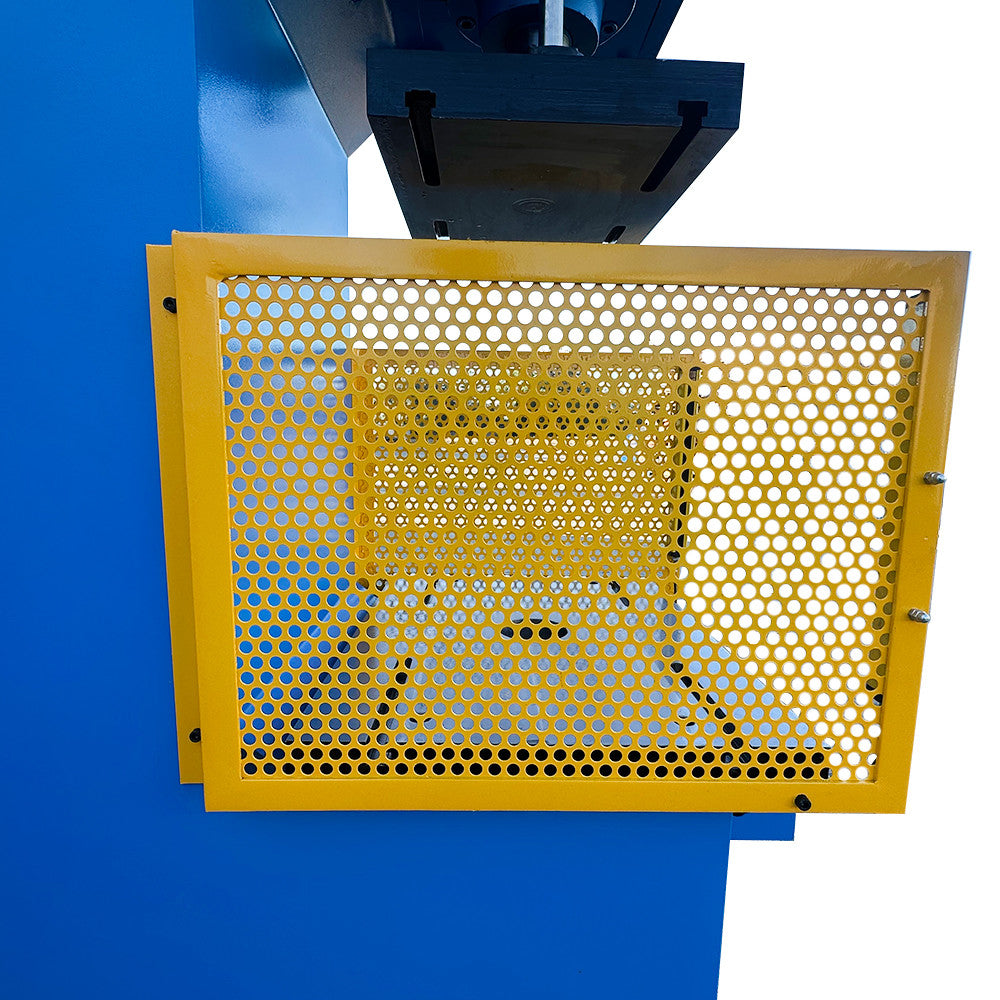

- Safety Measure: Light Curtain, Double Hand Control, CE Standards, 3P+E Rating
- T-Slot Size: 1-1/8" x 3/4"

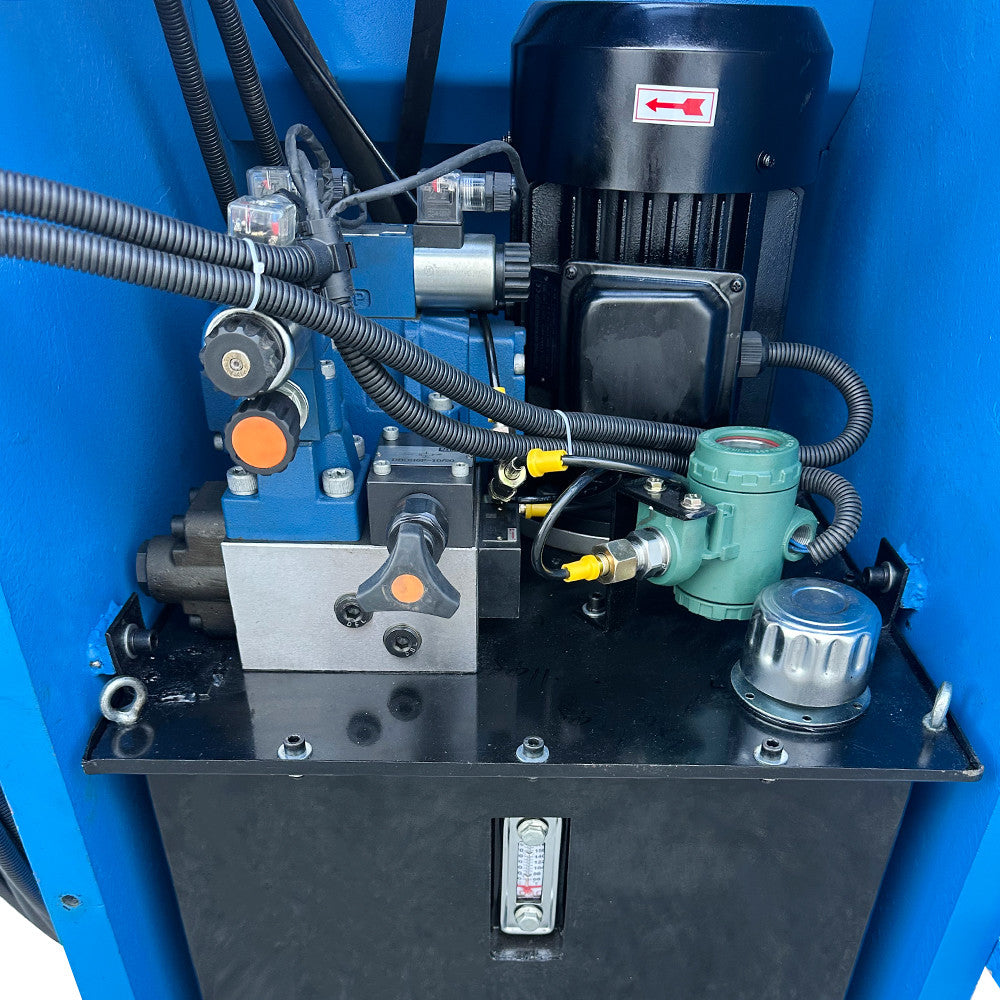

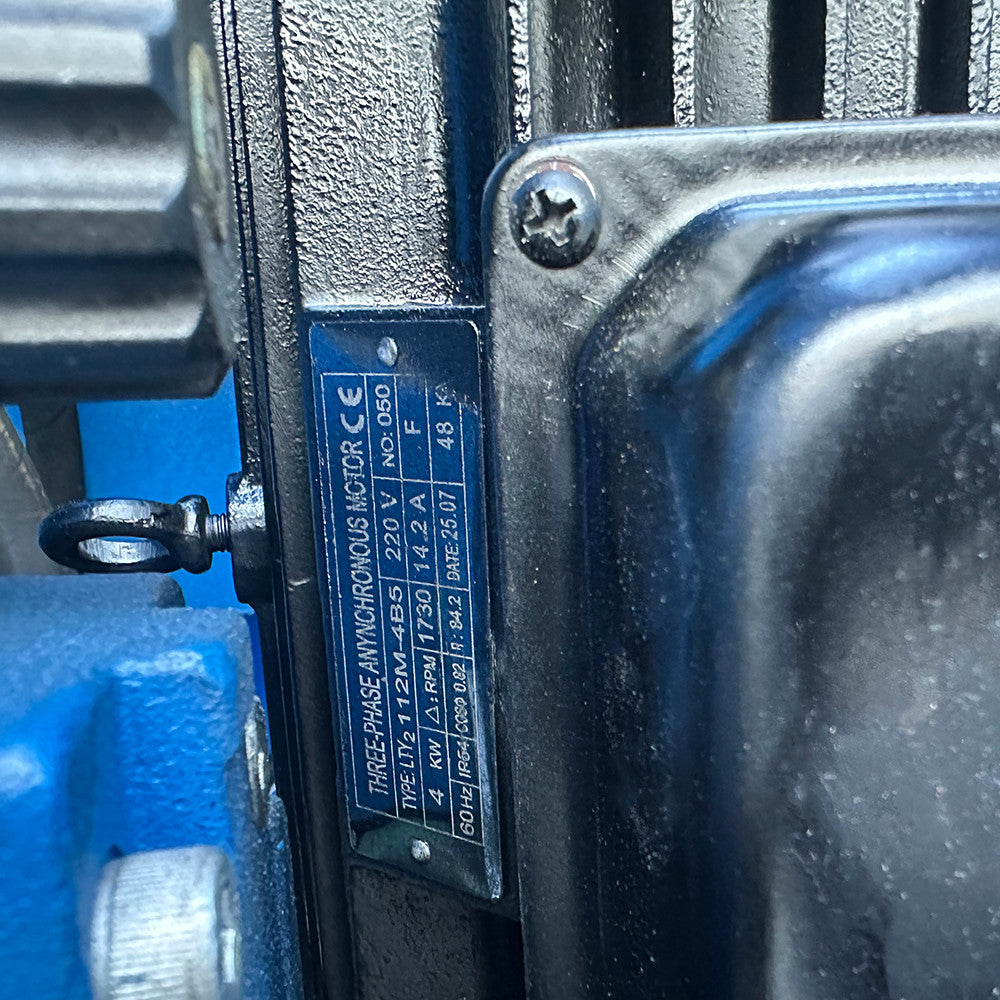

- Hydraulic Motor:
*220 Volt
*5.3HP (4 KW)
*1,730 RPM
*3-Phase

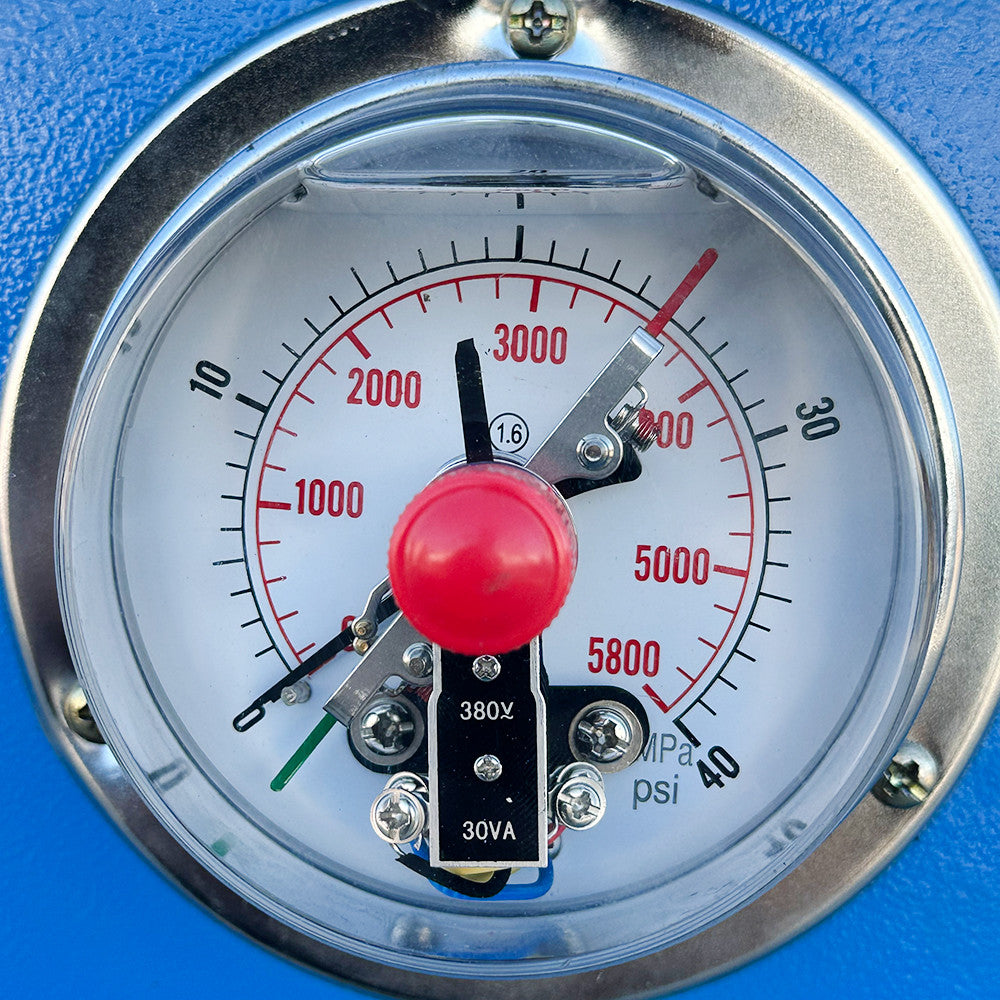

*14.2 Amps - Pressure: 25 mpa
- Oil Tank: 85 Liter
- Overall Dimension:
Press: 29-1/2" x 47" x 88"

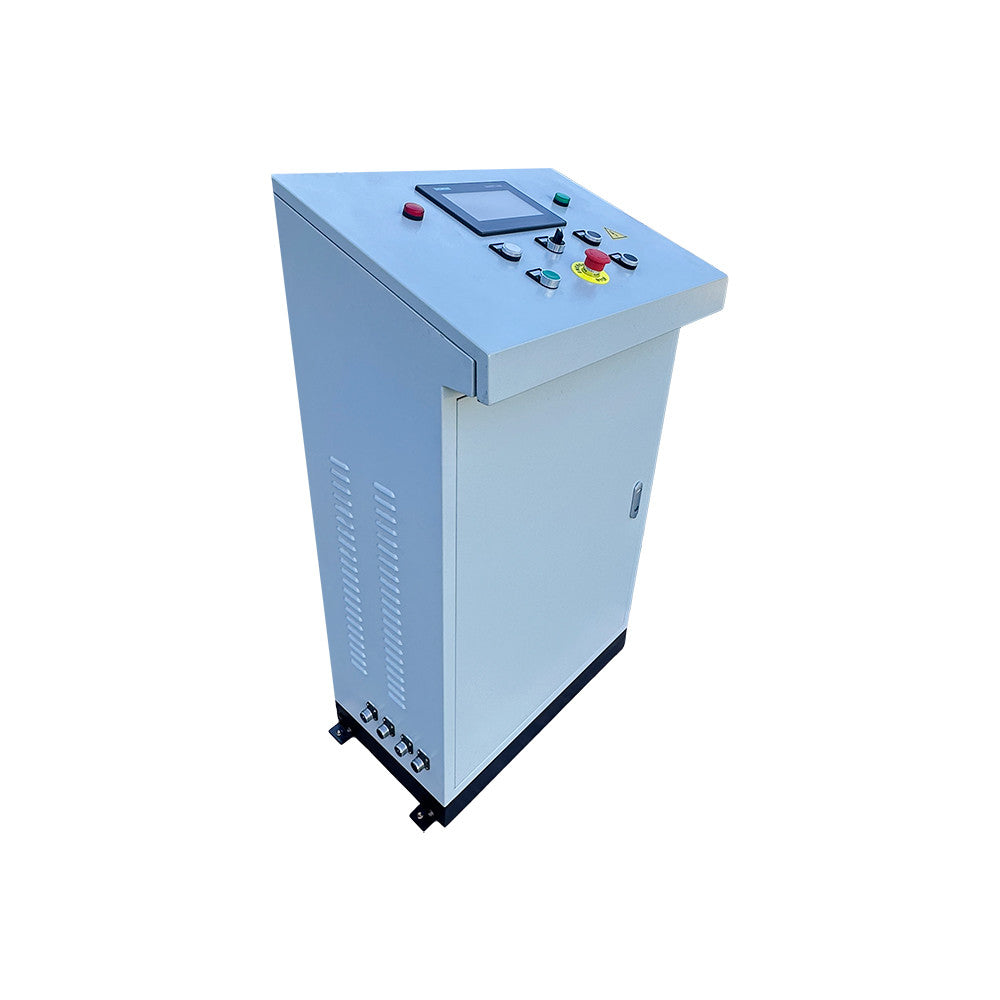

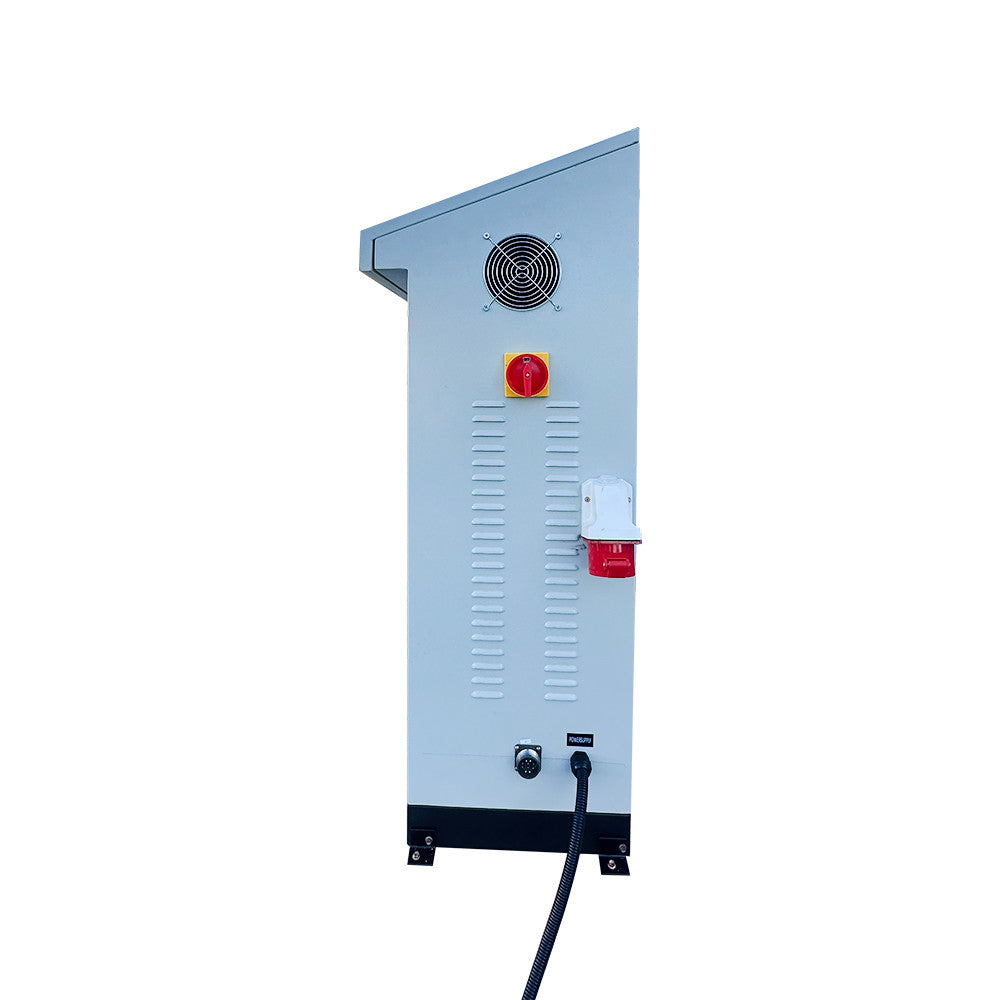

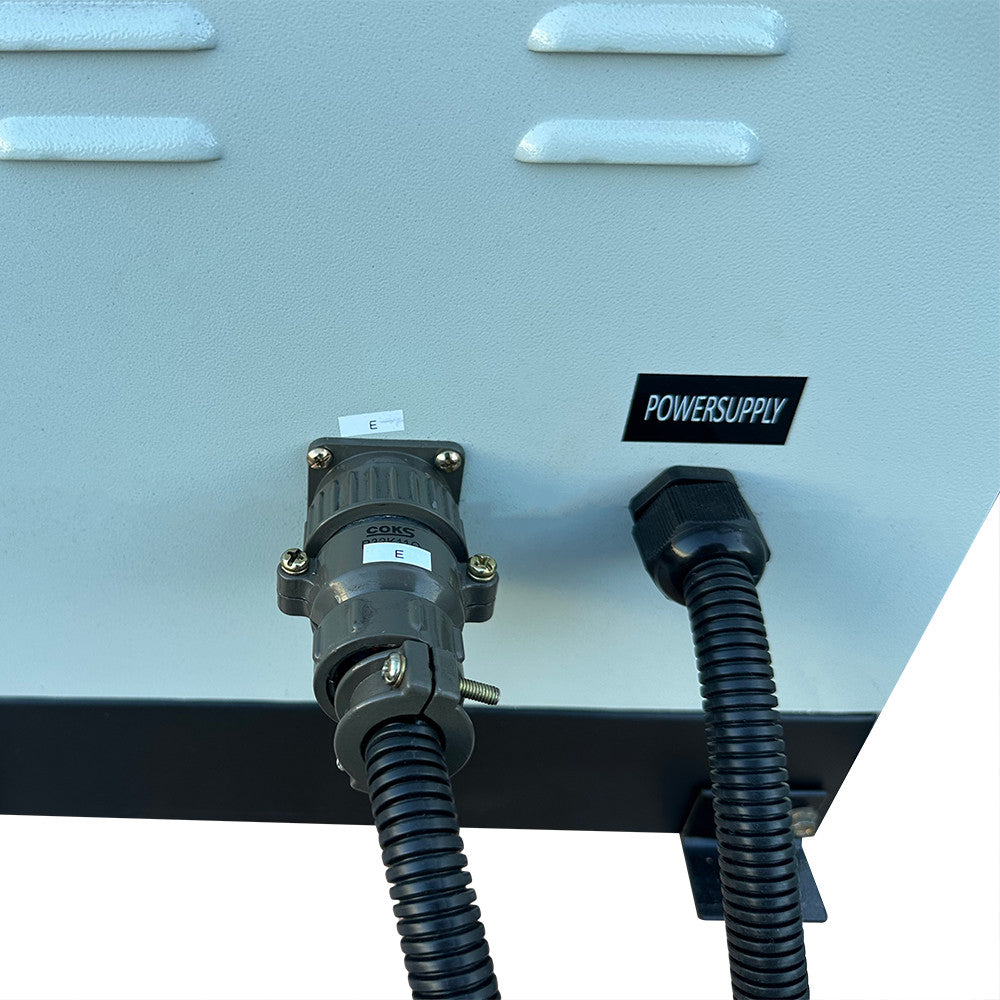

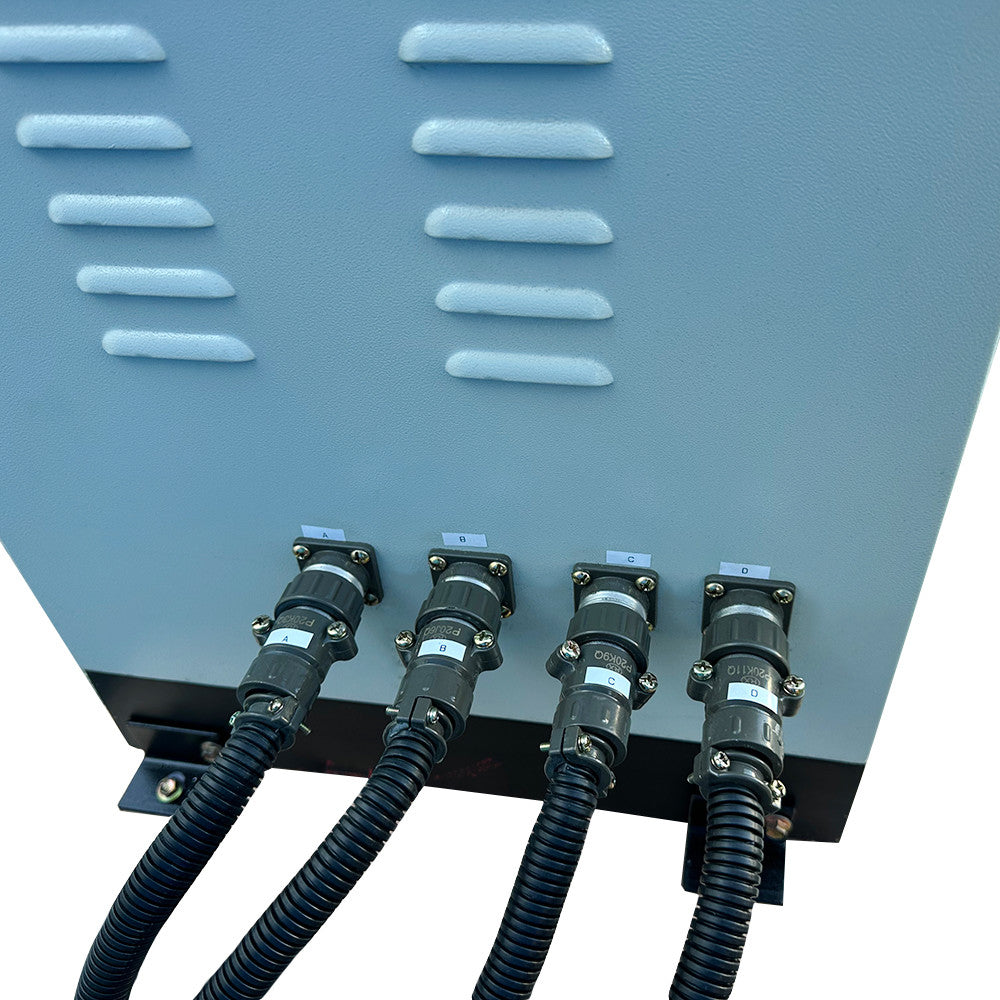

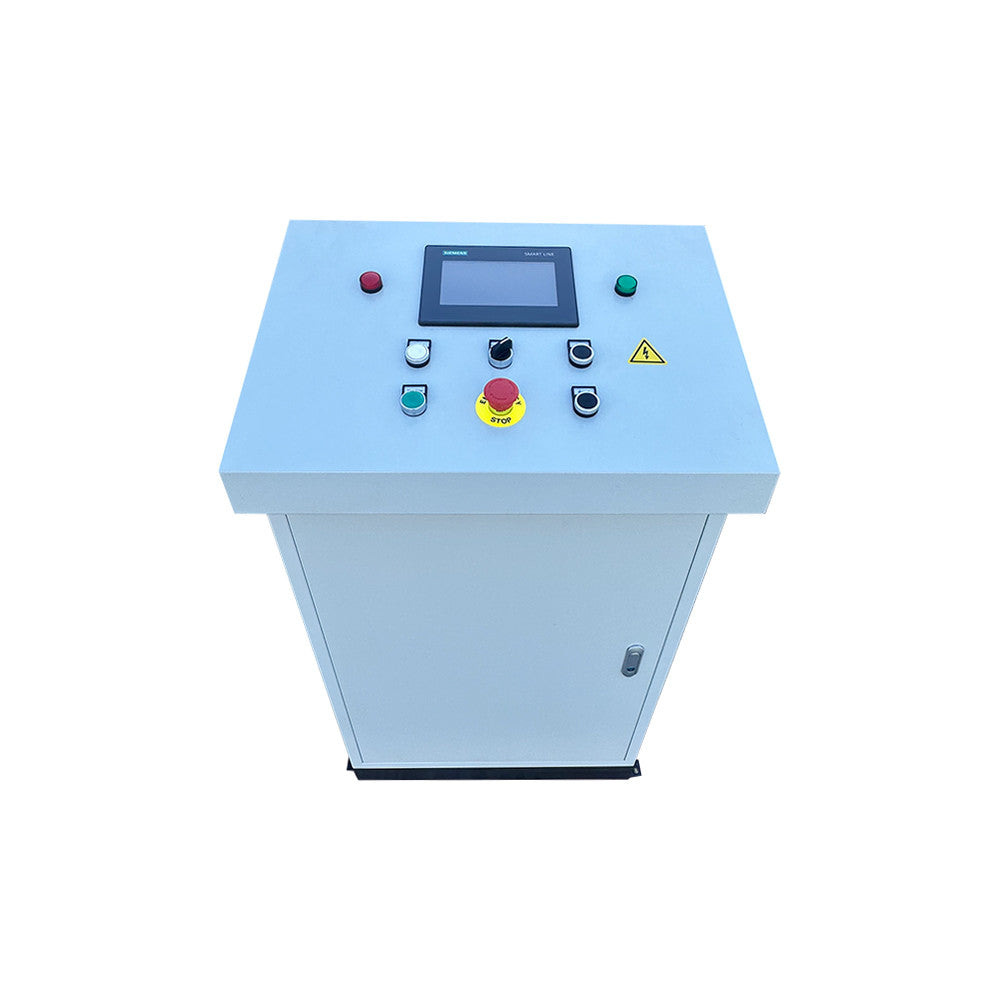

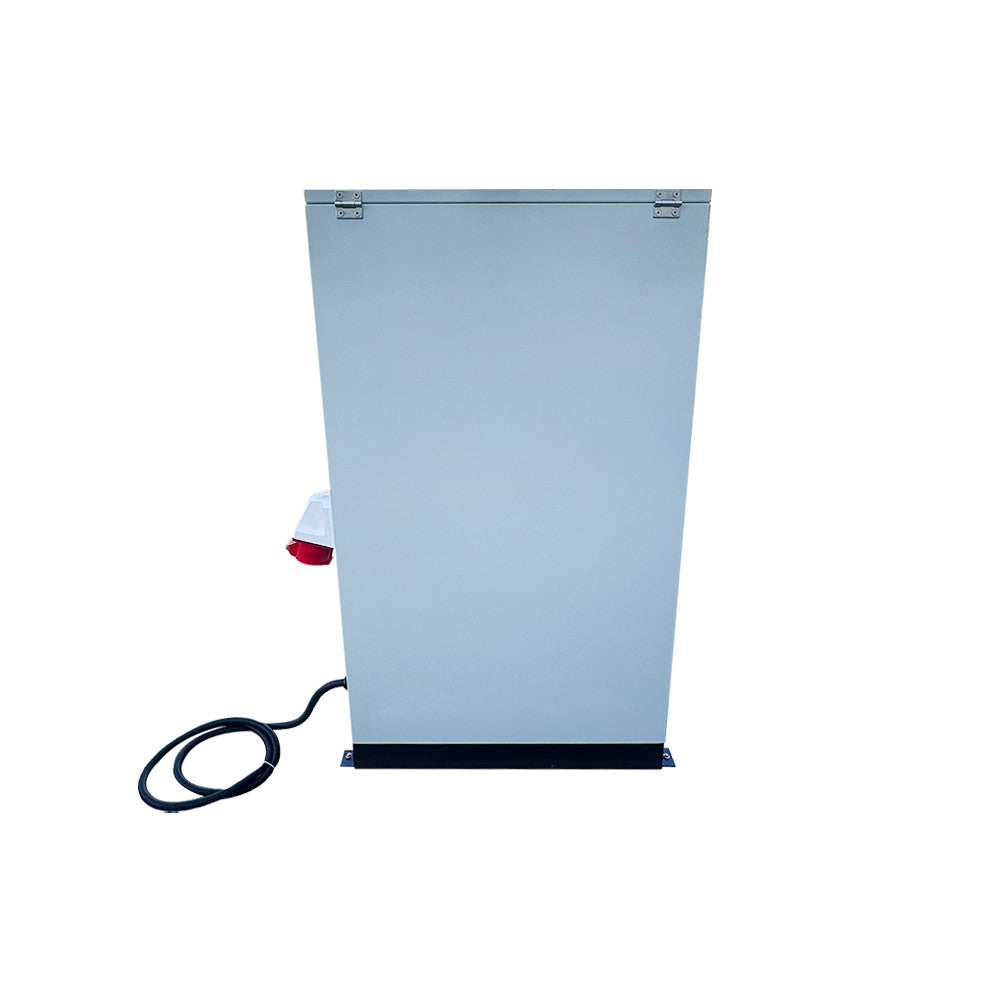

Control Unit: 29" x 17" x 43" -
Weight G.W. / N.W. :
Press: 3,718 lbs / 3,498 lbs *Estimate Only*
Control Unit: 176 lbs / 132 lbs *Estimate Only* - Quantity: 1
- Large Freight or Over Sized Item
