Description
- Brand New

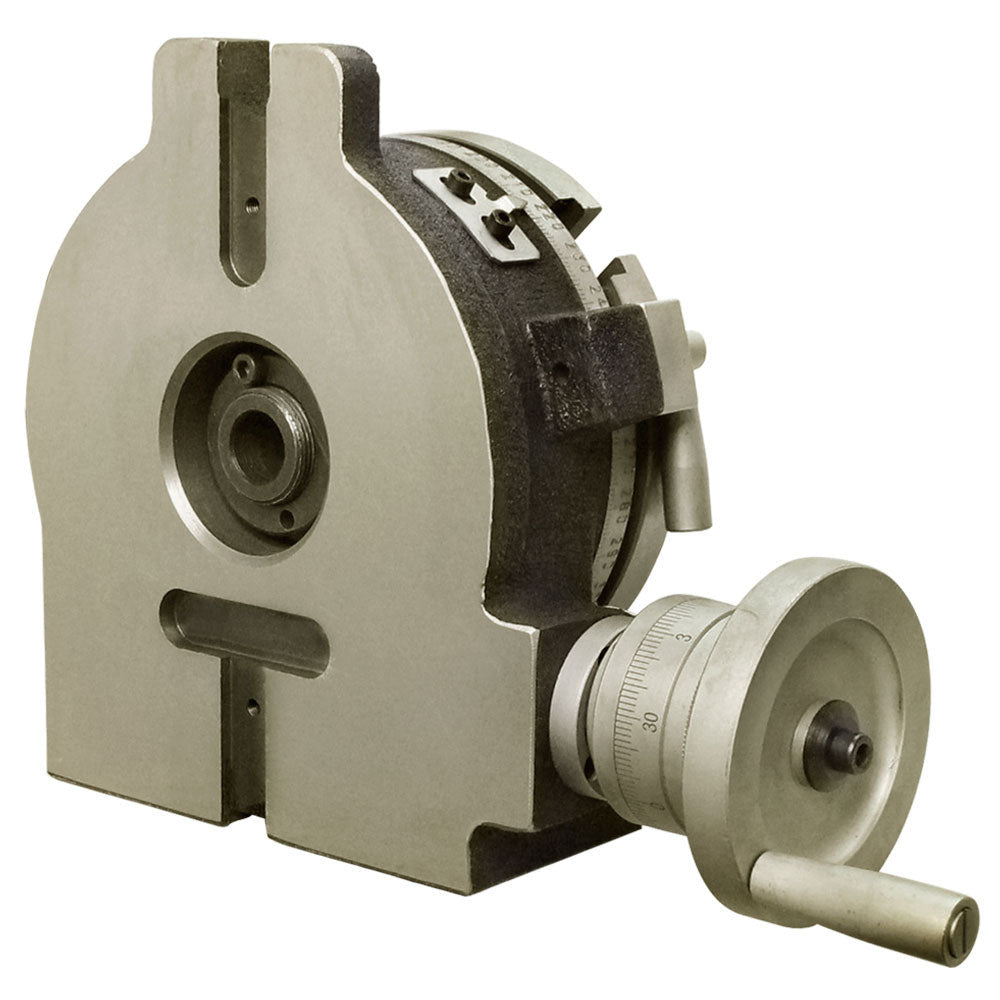

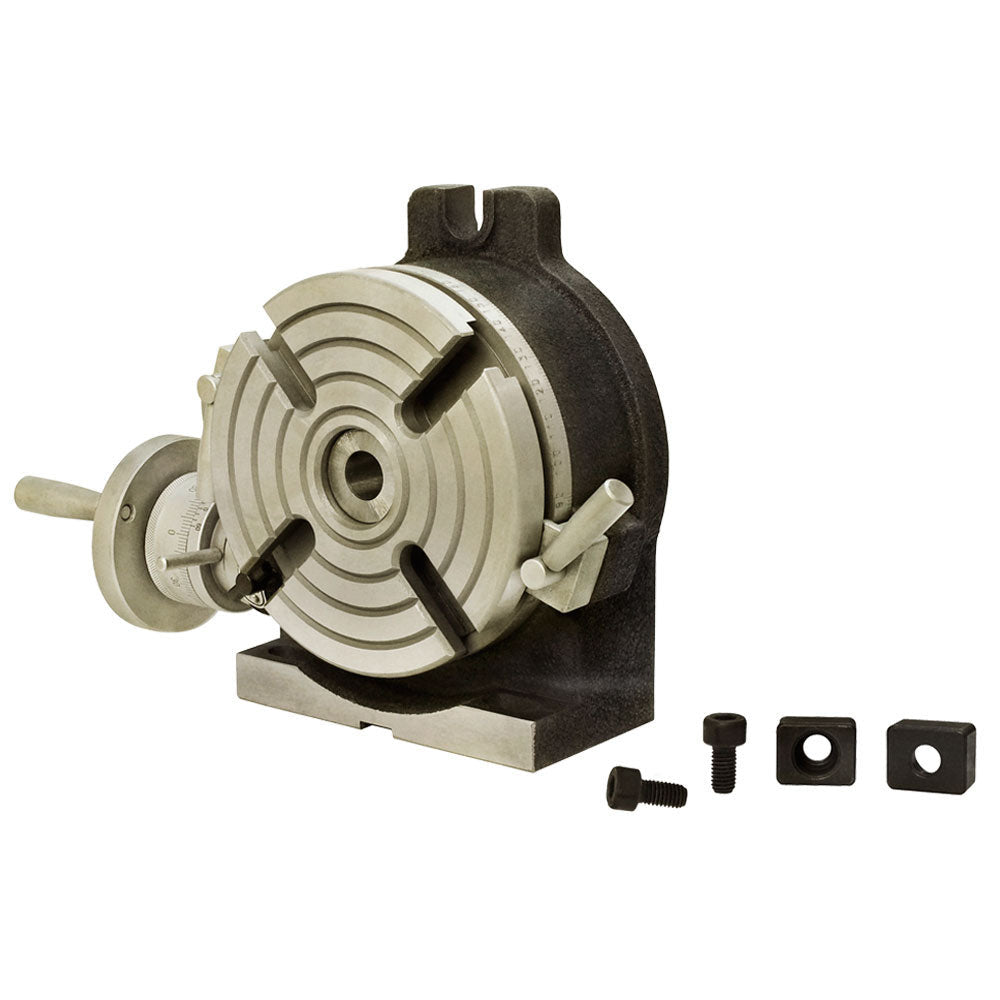

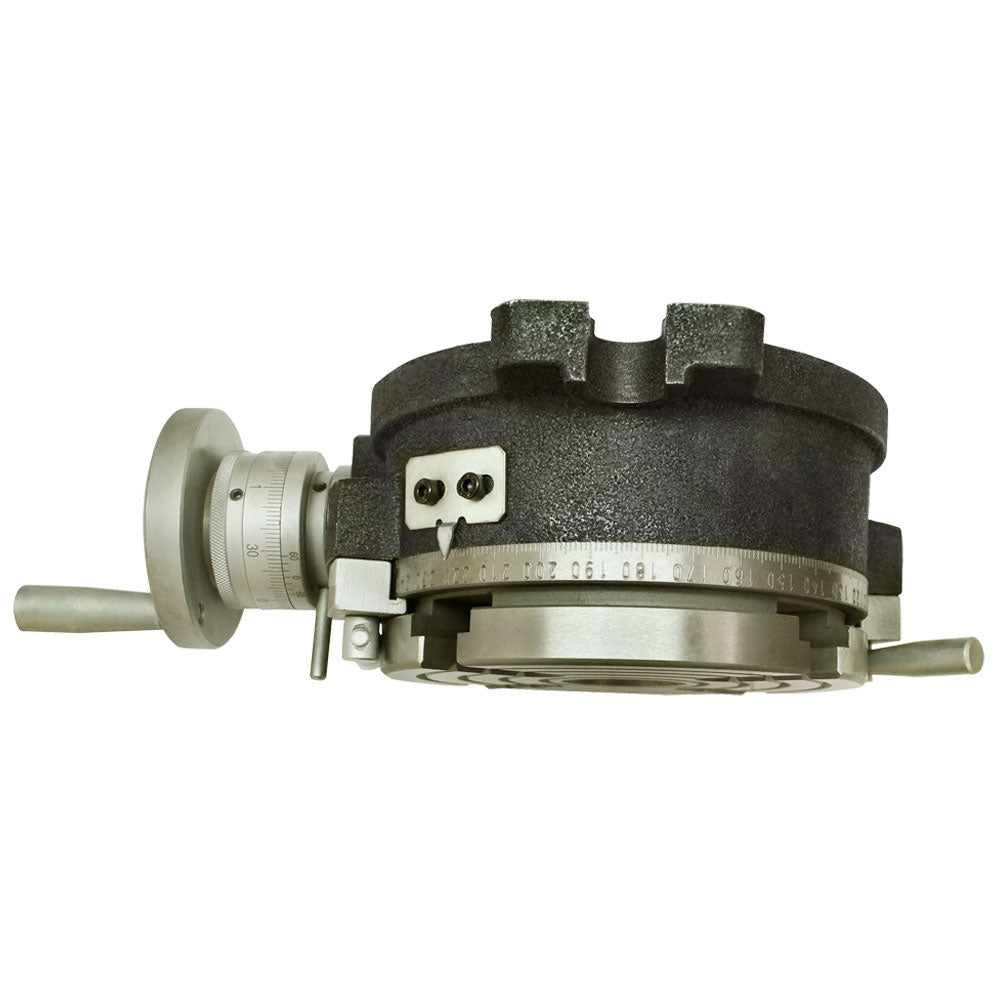

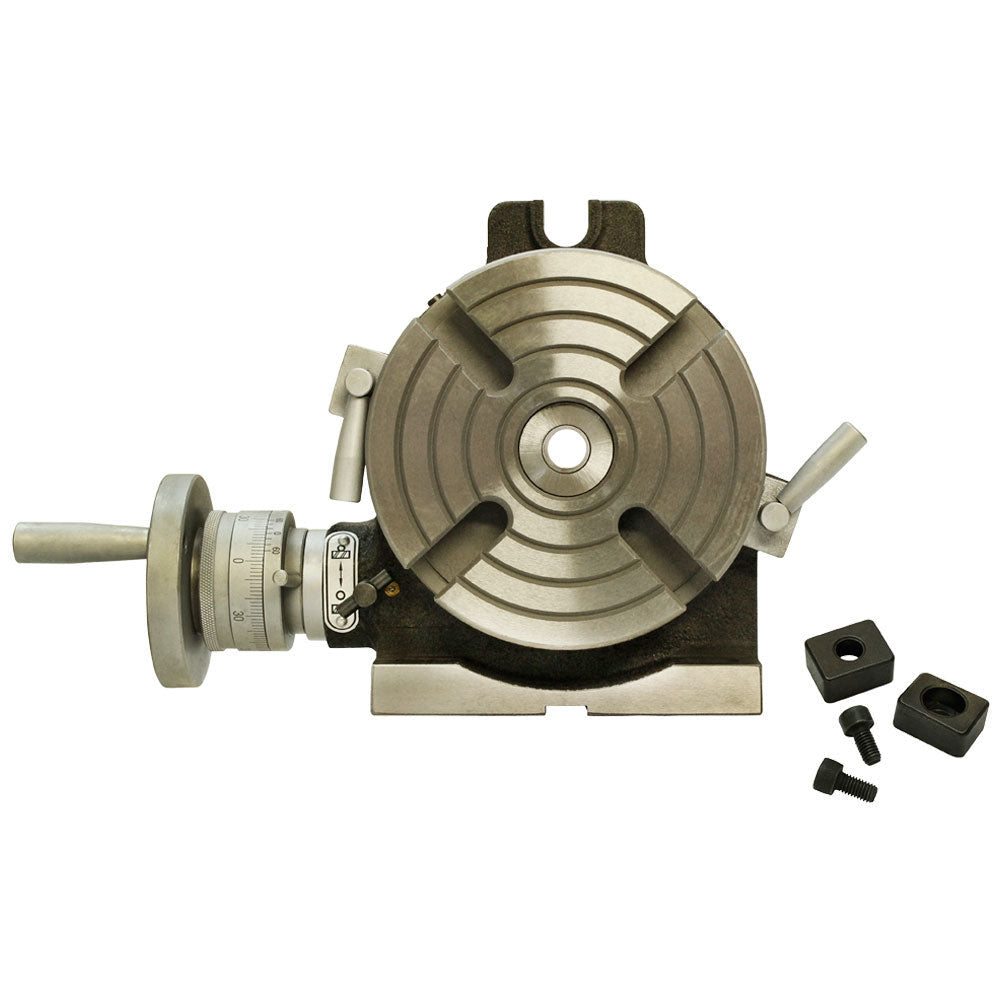

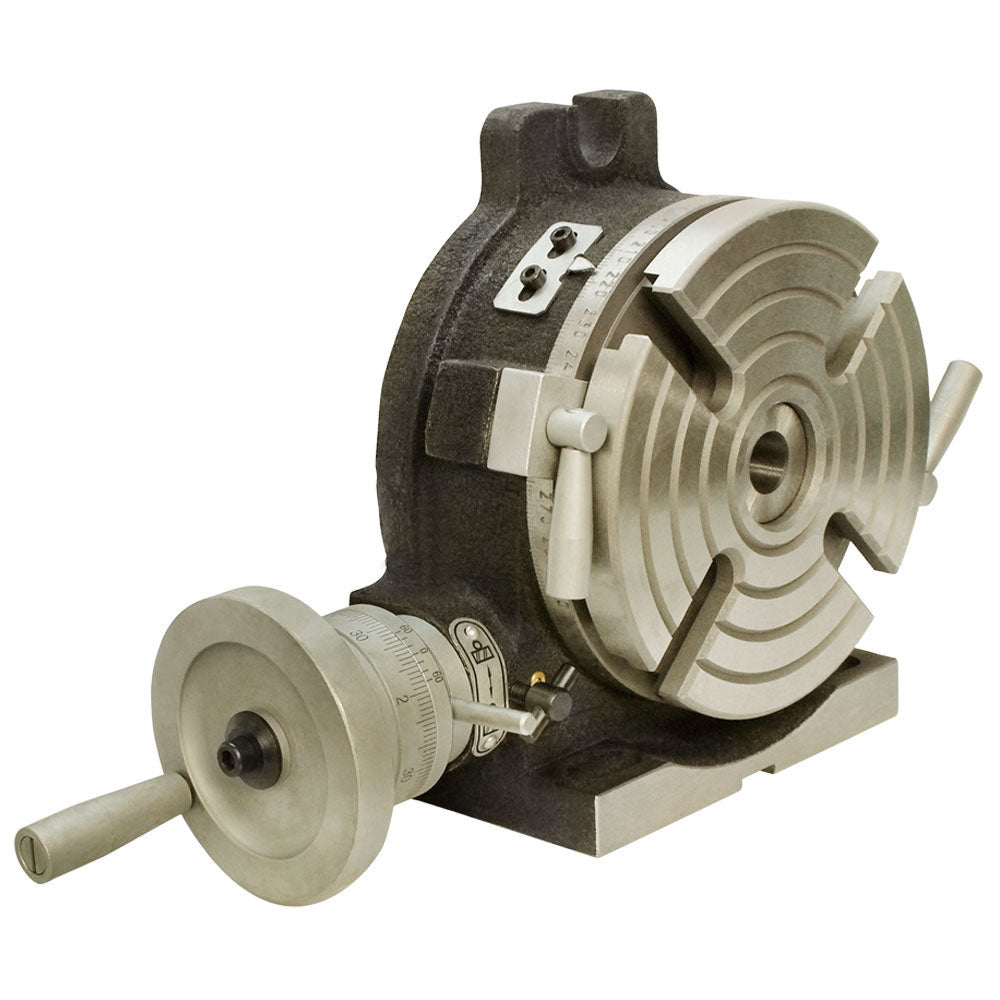

- 6" Horizontal & Vertical Rotary Table
- Without Coolant Pathway On Rotary Table Base To Catch The Coolant
- DesignedFor Milling, Drilling, Jig Boring, And Many Common Shop Applications
- Extra Deep Coolant
- Dual Positive Action Locks

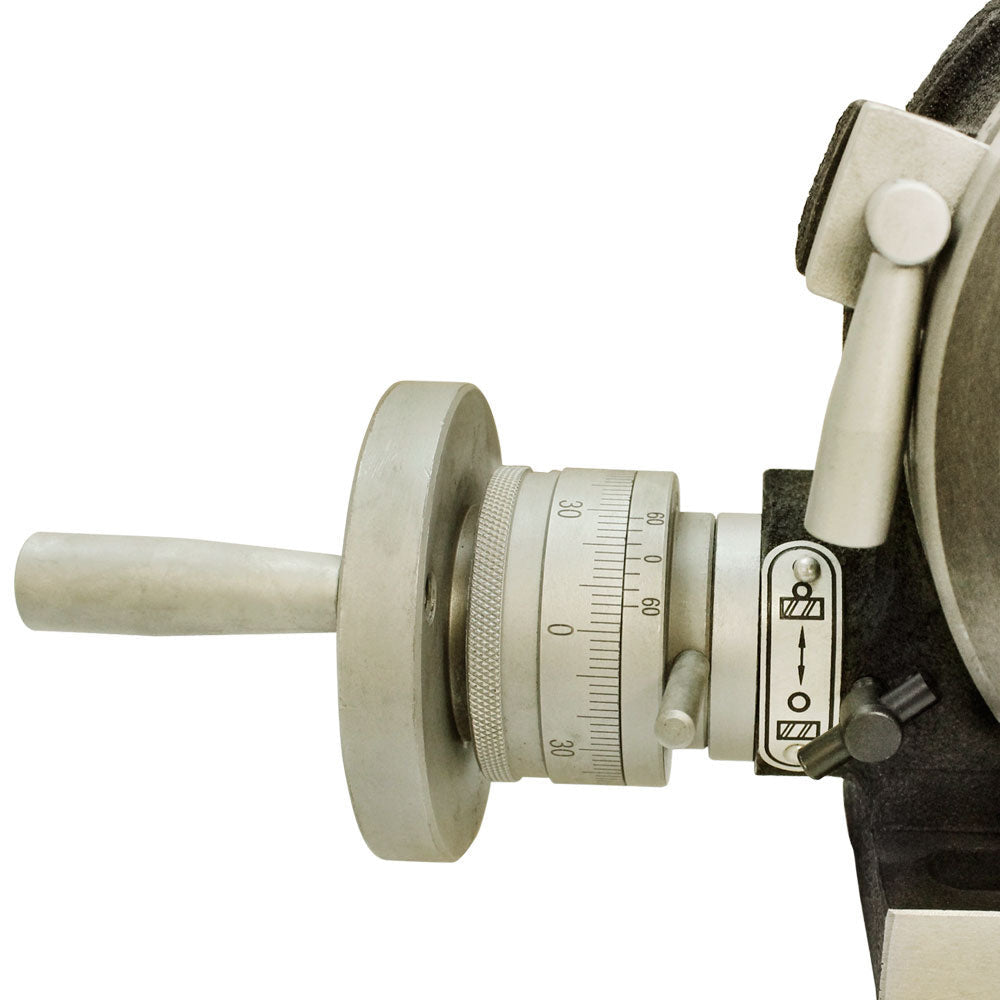

- Satin Chrome Dials
- Low Profile
- Table Diameter: 6"
- Horizontal O/A Height: 3.26"
- Center Height Vertical Position: 3.93"
- Overall Height In Vertical Position: 7.87''
- Overall Width (Not Including Handle) In Vertical Position: 6.29''
- Mounting Table Bolt Width: 0.63''
- T-slot Width: 0.47''
- Center Taper: Morse Taper 2
- Maximum Working Load: 330 Lbs ( Horizontally )
- Maximum Working Load: 165 Lbs ( Vertically )
- Center Bore: 2MT

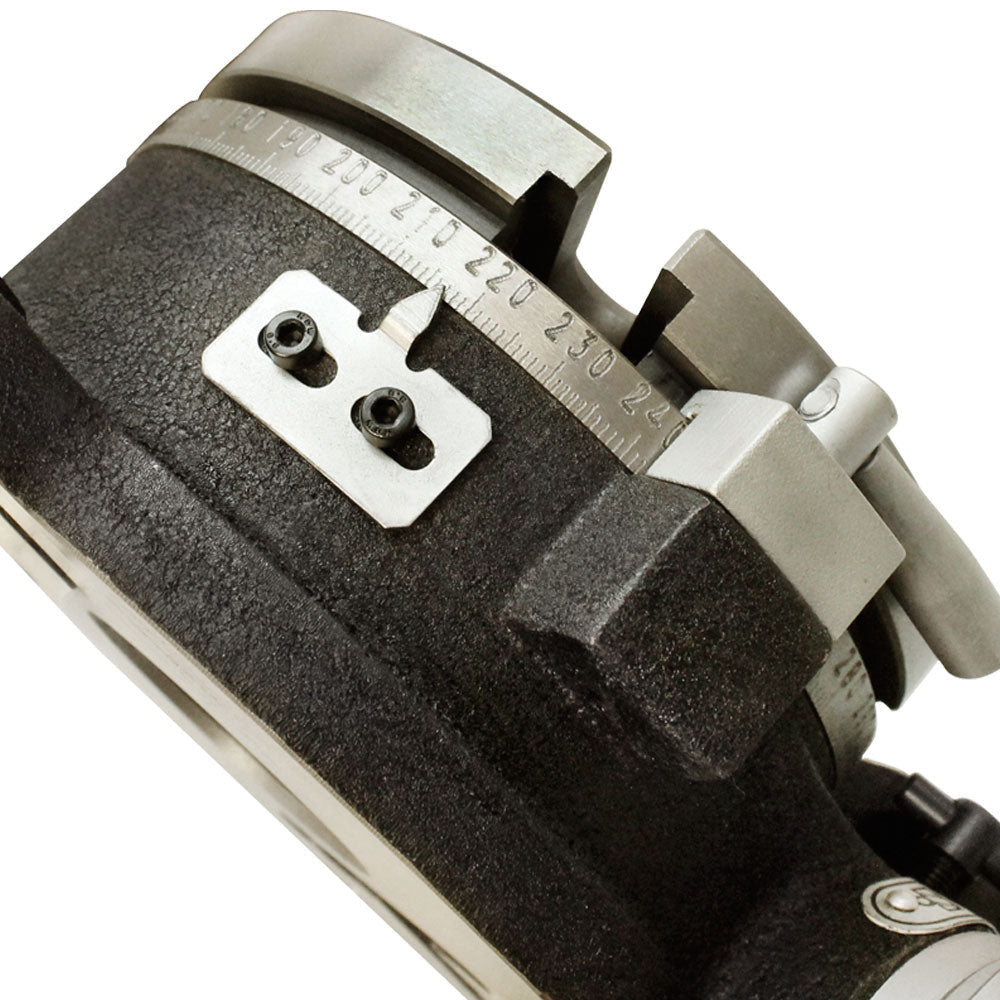

- Vernier Scale Reading: 10 Seconds
- Weight: 26 Lbs *Estimate Only*
- Quantity: 1
- Small Freight Item
