Description
- Brand New

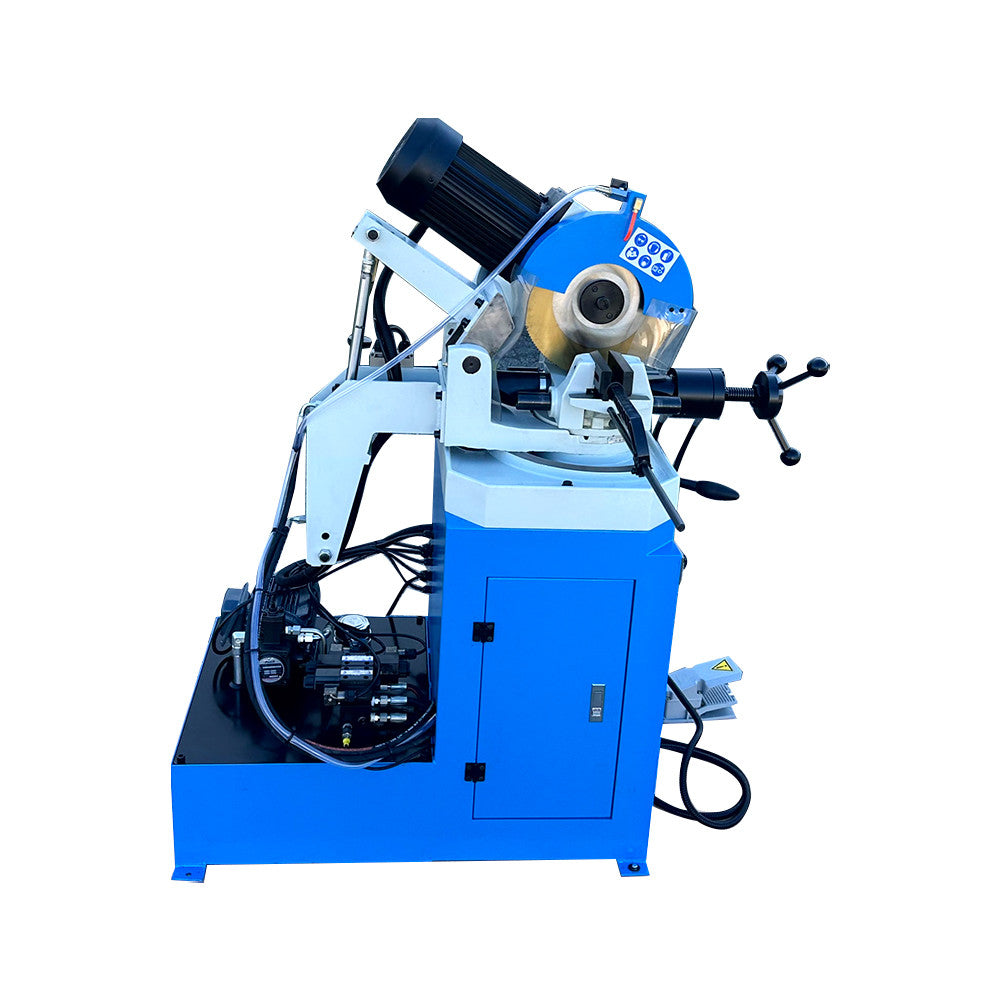

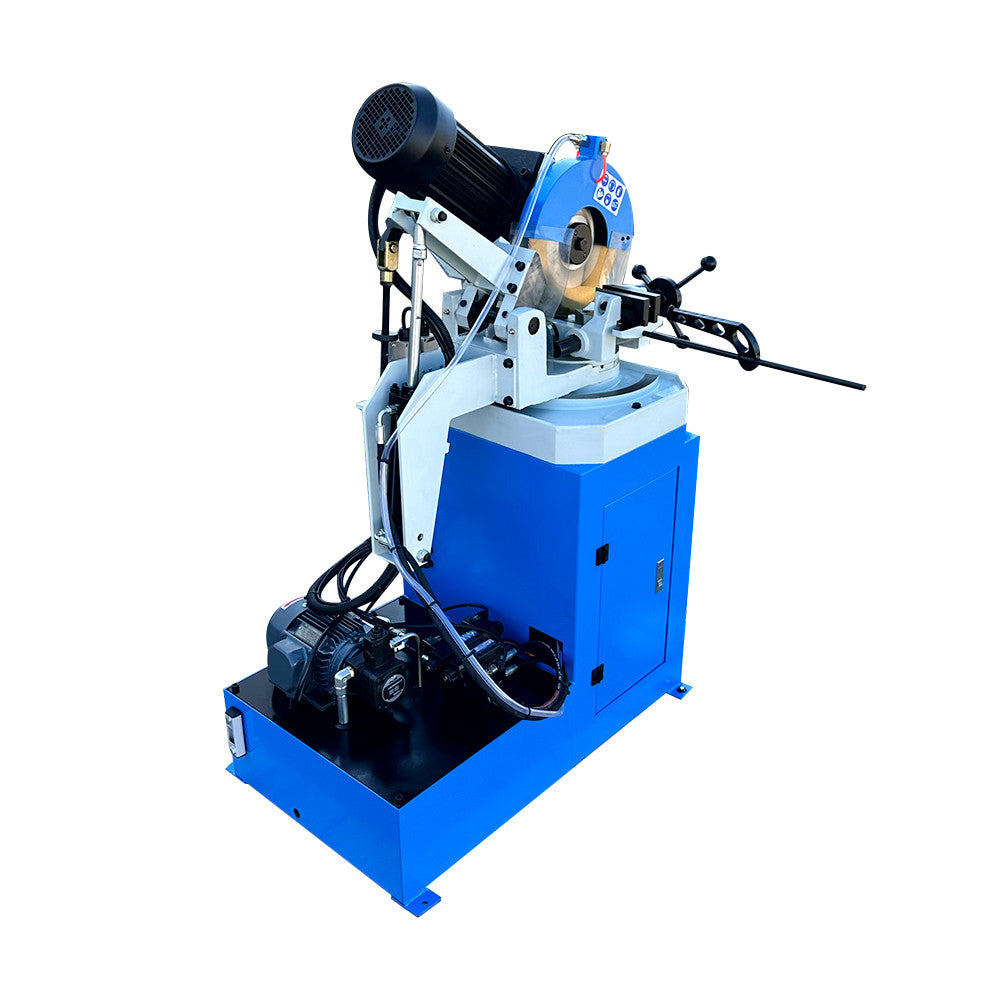

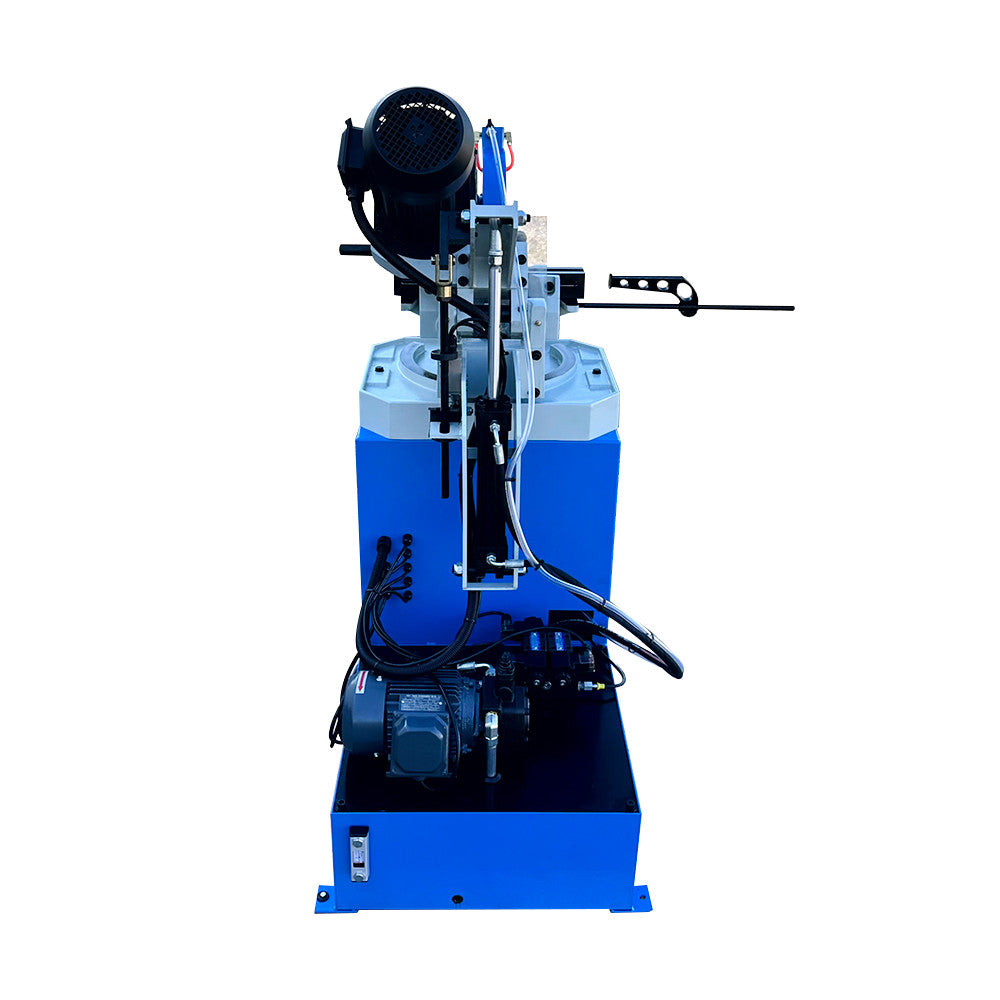

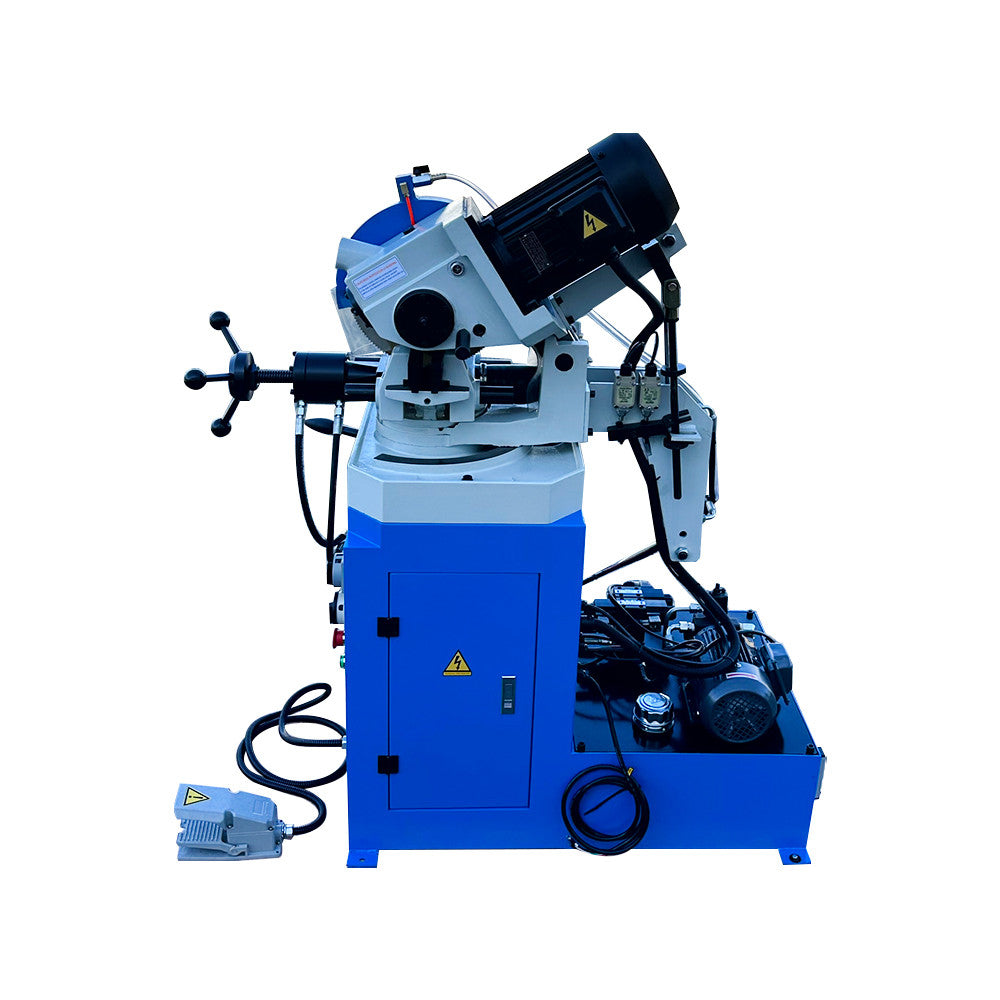

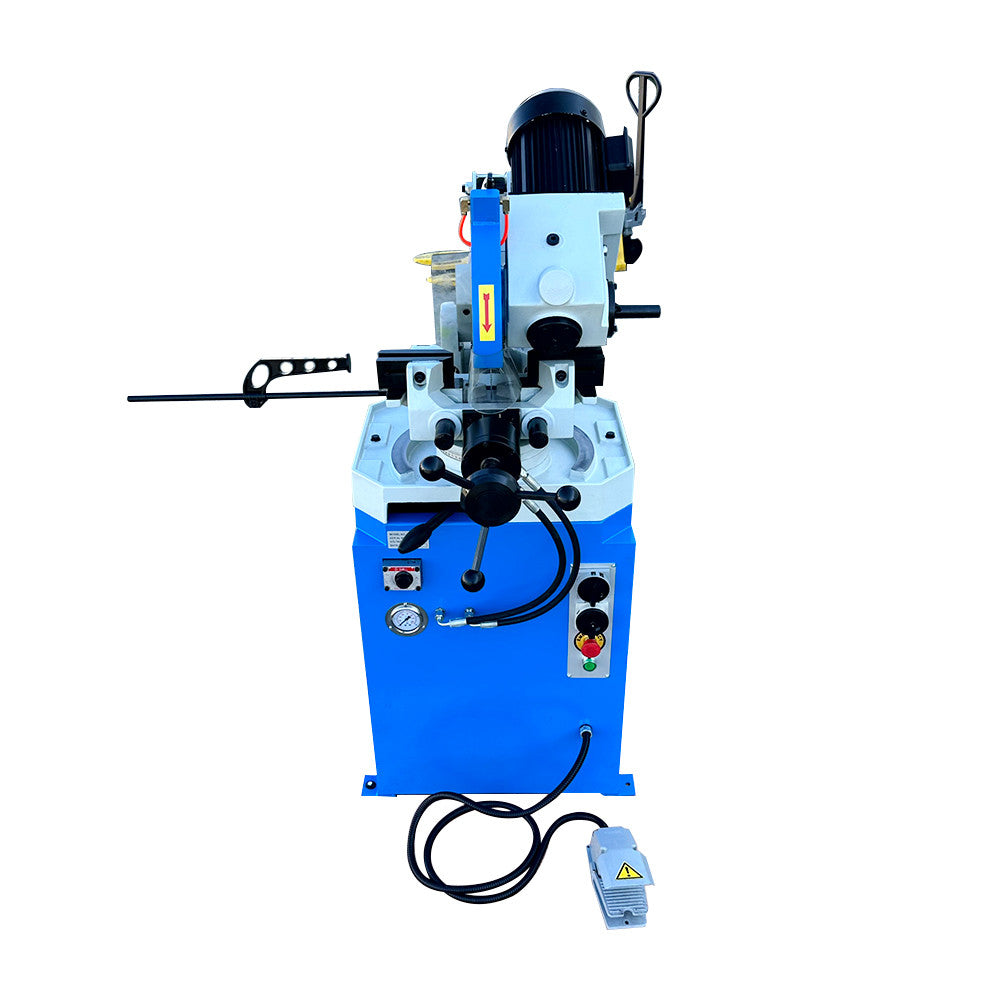

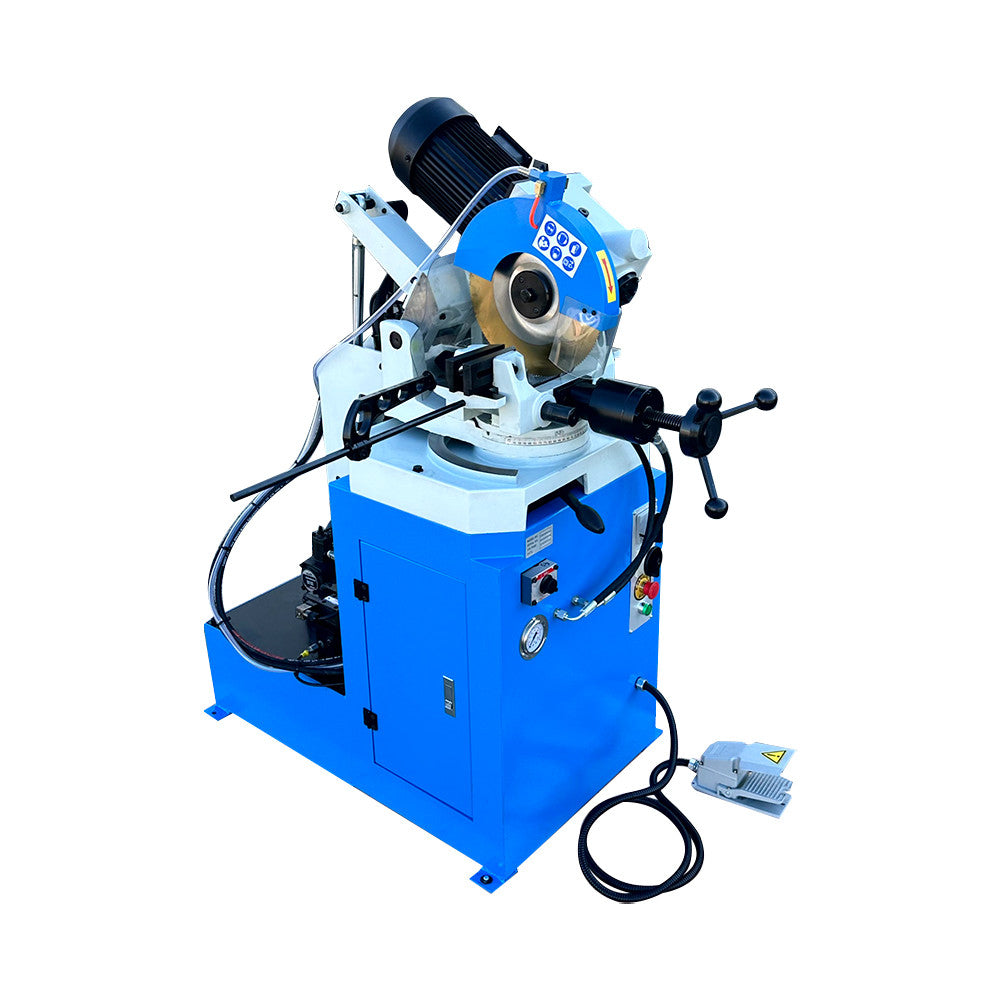

- Hydraulic Circular Cold Saw

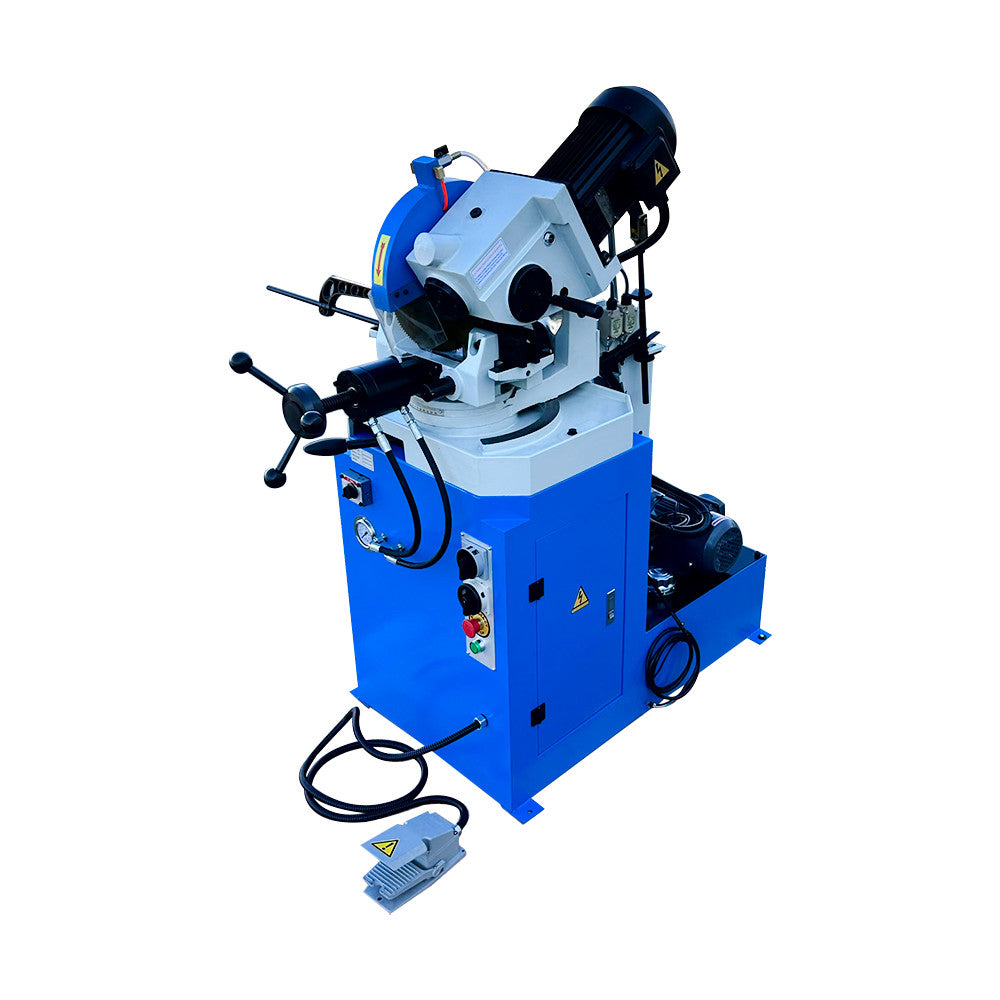

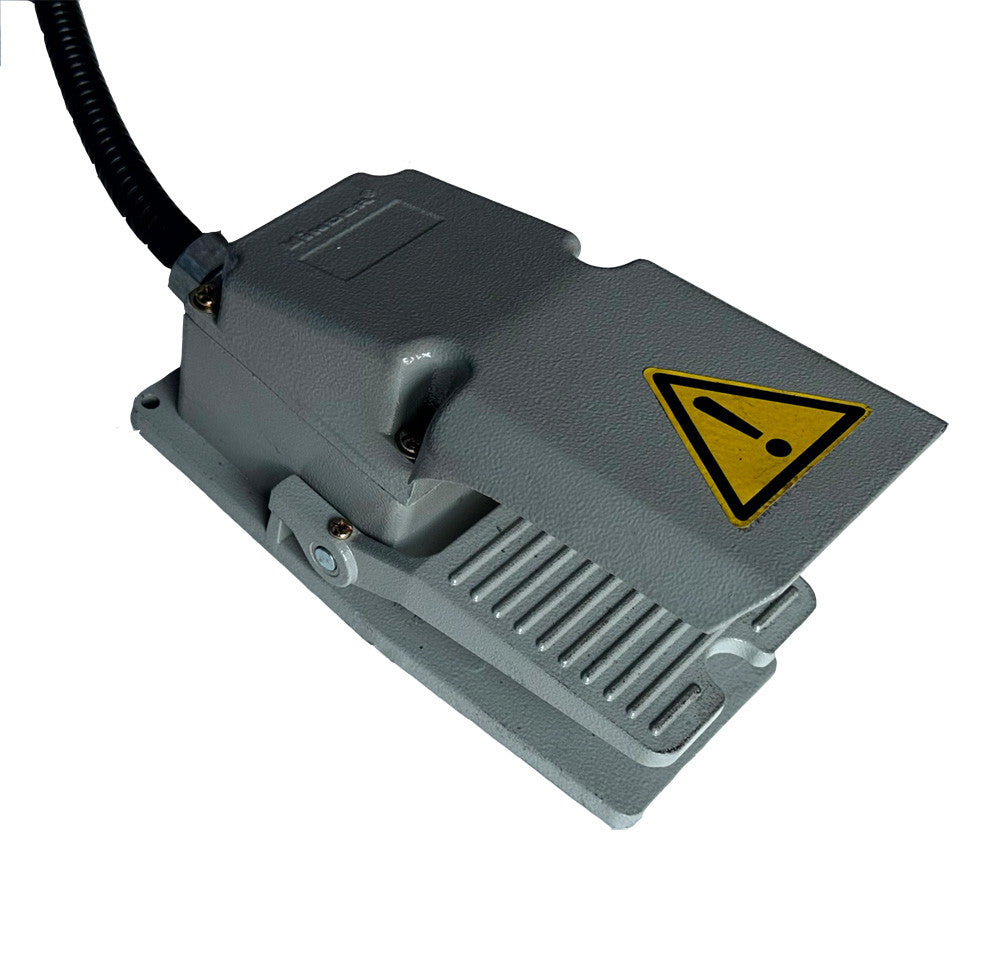

- Semi-Automatic Cutting via Foot Pedal Control

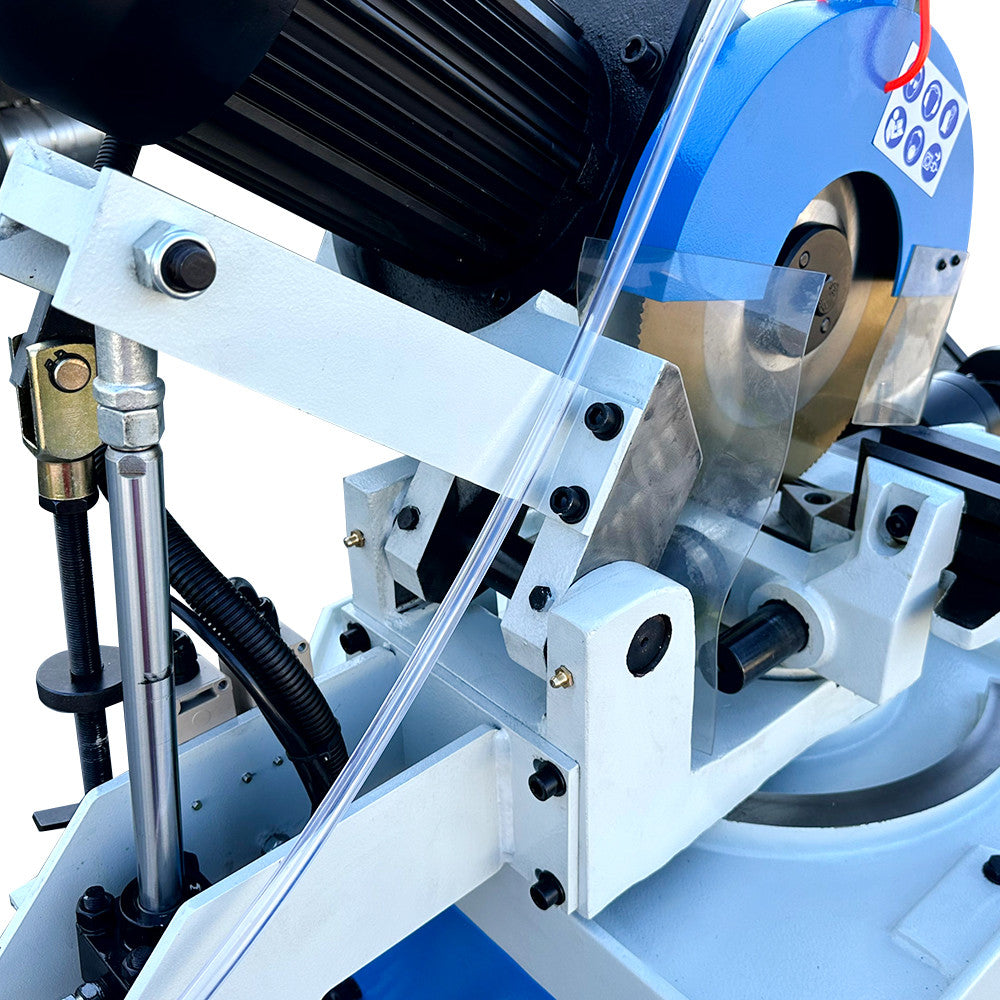

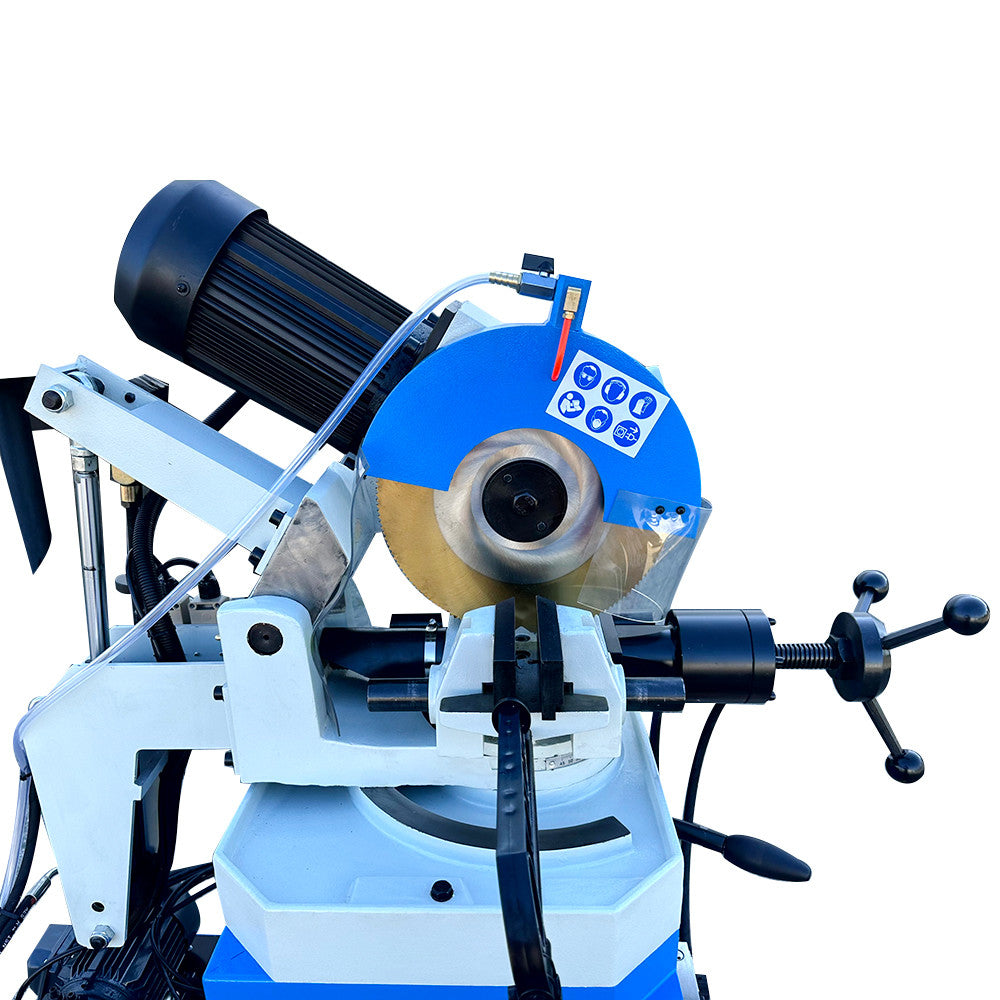

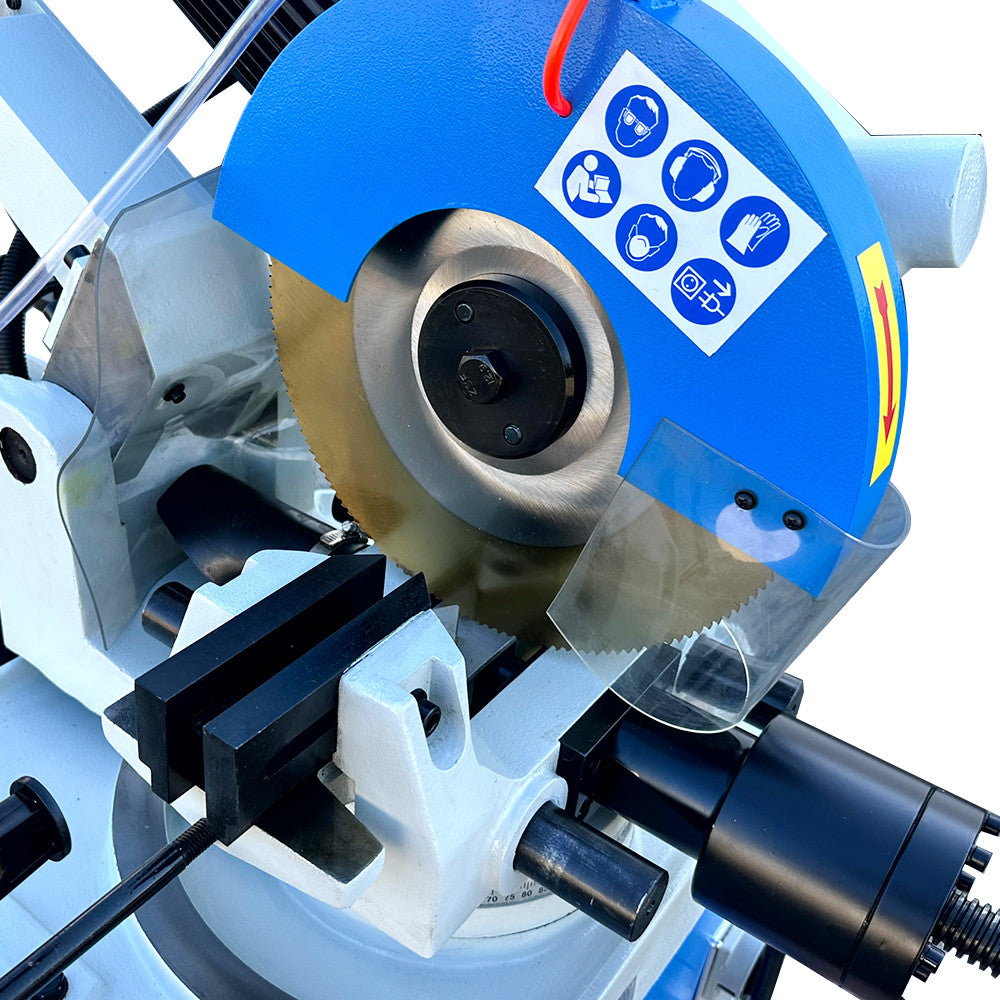

- 12.5" (315mm) Blade Cold cut circular saw
- Auto Cutting

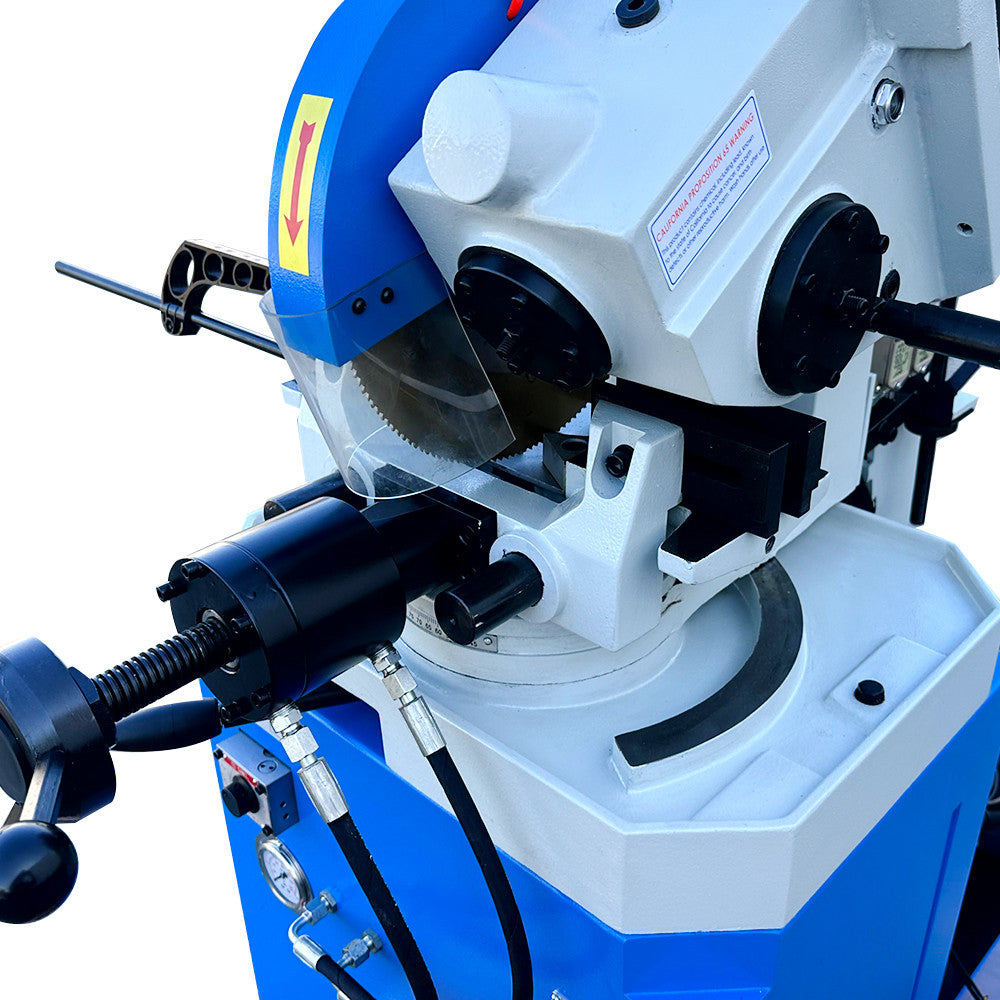

- Hydraulic Clamping
- Cuts Steel and Aluminum
- Blade (Included): 12.5'' (315mm)
- 2 Speed: 2P/4P double speed
- Blade Speed: 20/120 RPM

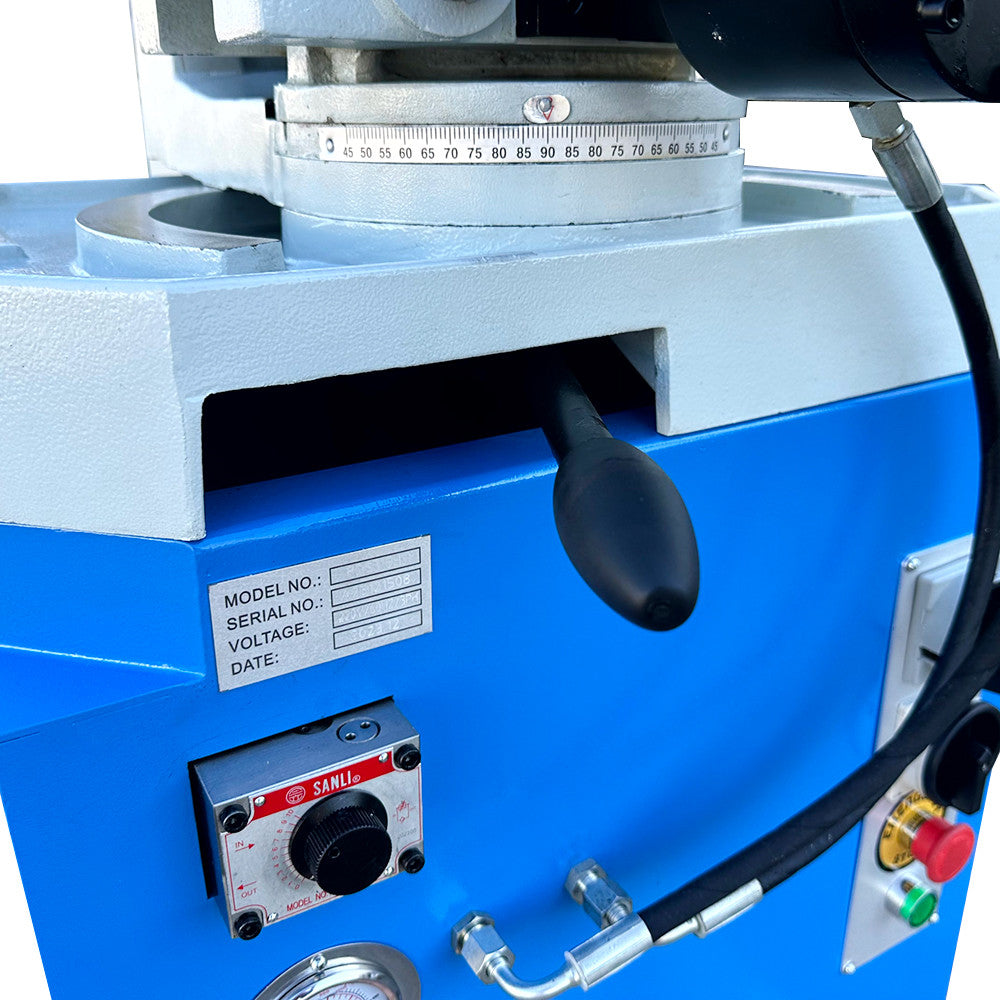

- Saw Frame Swivels: ± 45 Degree
-

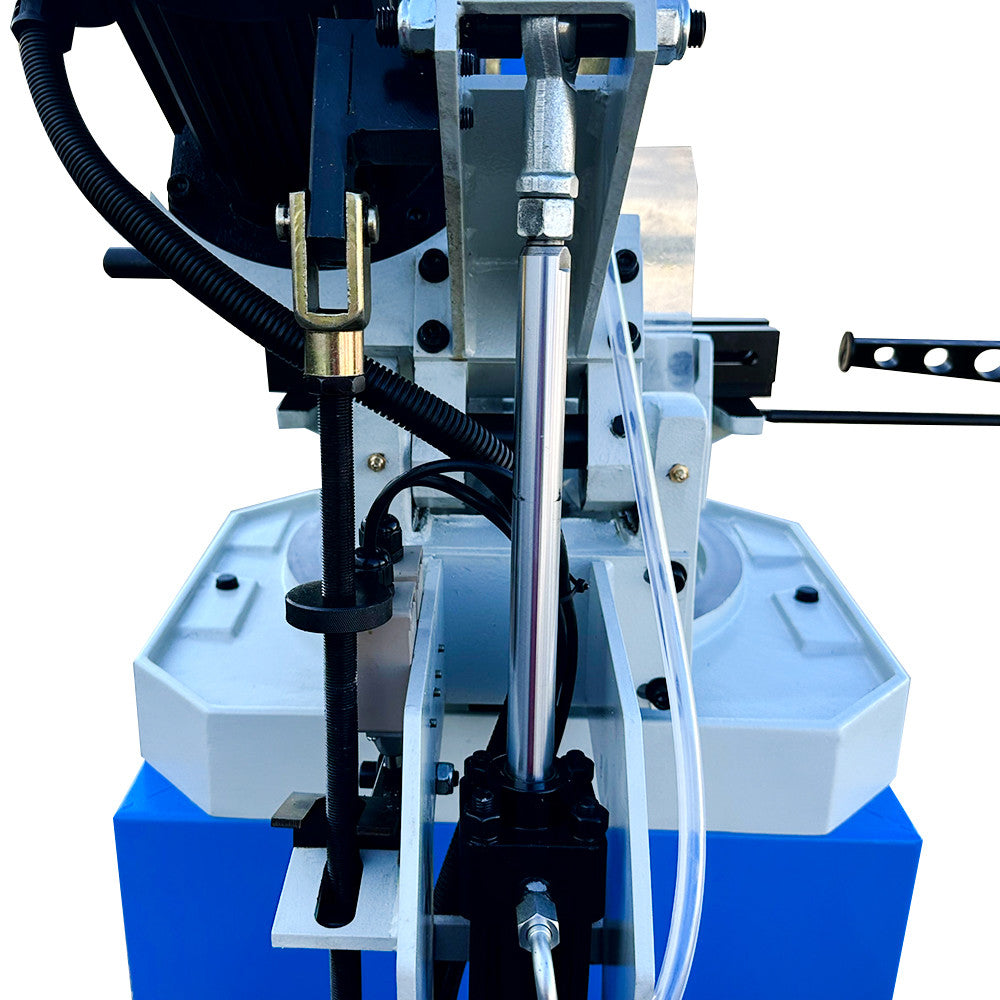

Hydraulic Cylinder:
* Travel of Main Cylinder: 5-1/2 (130 mm) 10MPa Max.
* Travel of Hydraulic Clamping Cylinder: 3/8" (10 mm) -

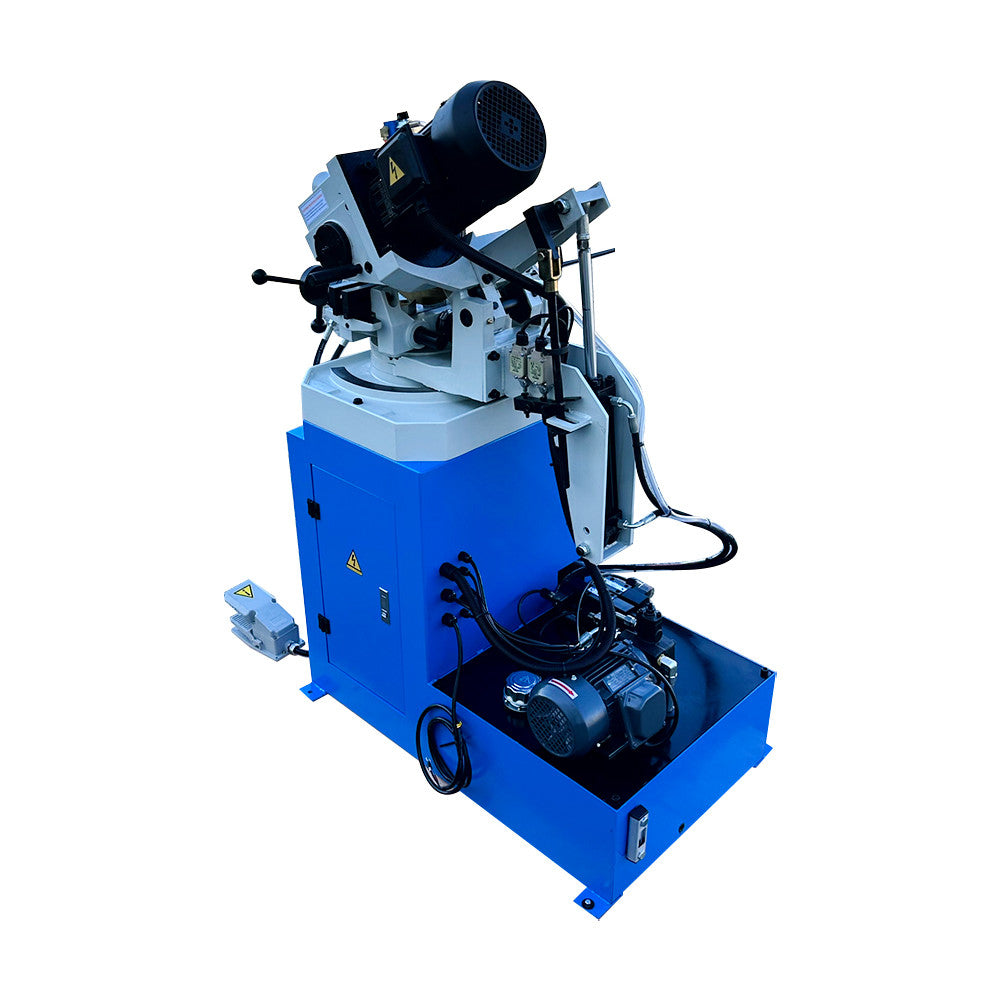

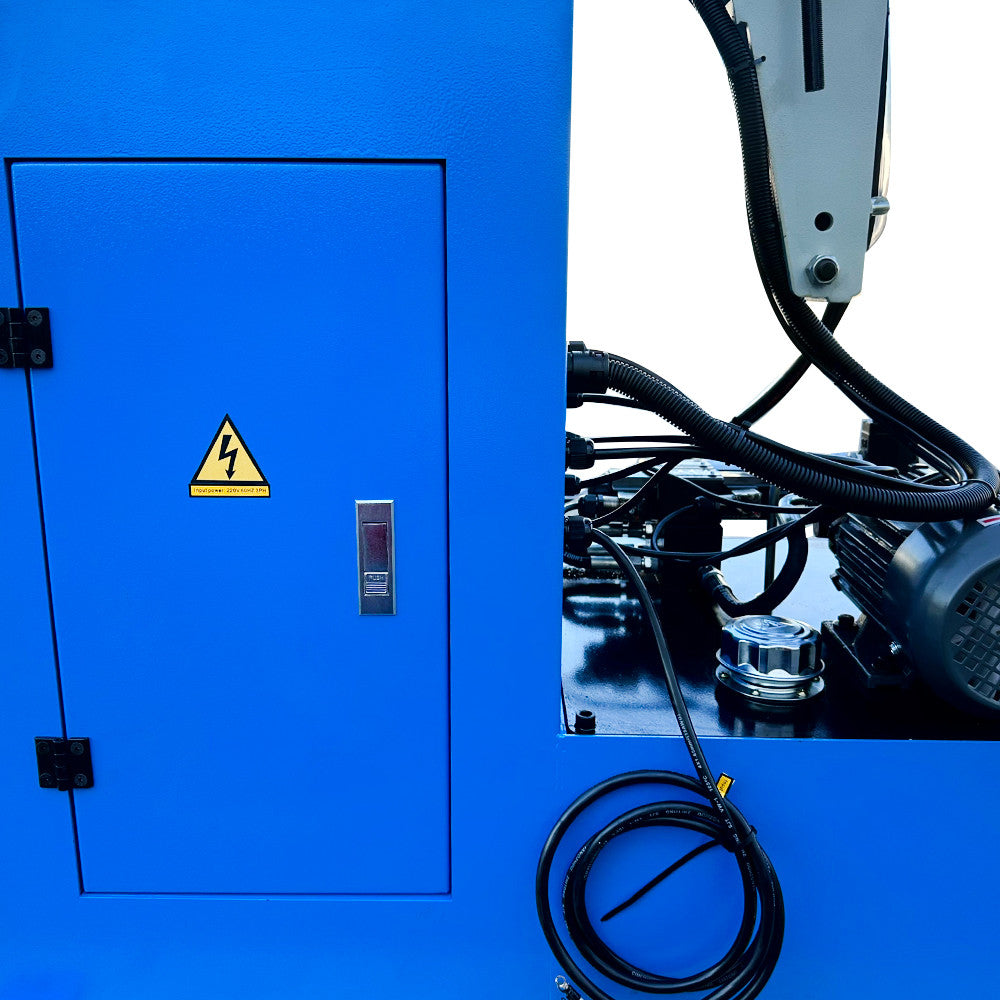

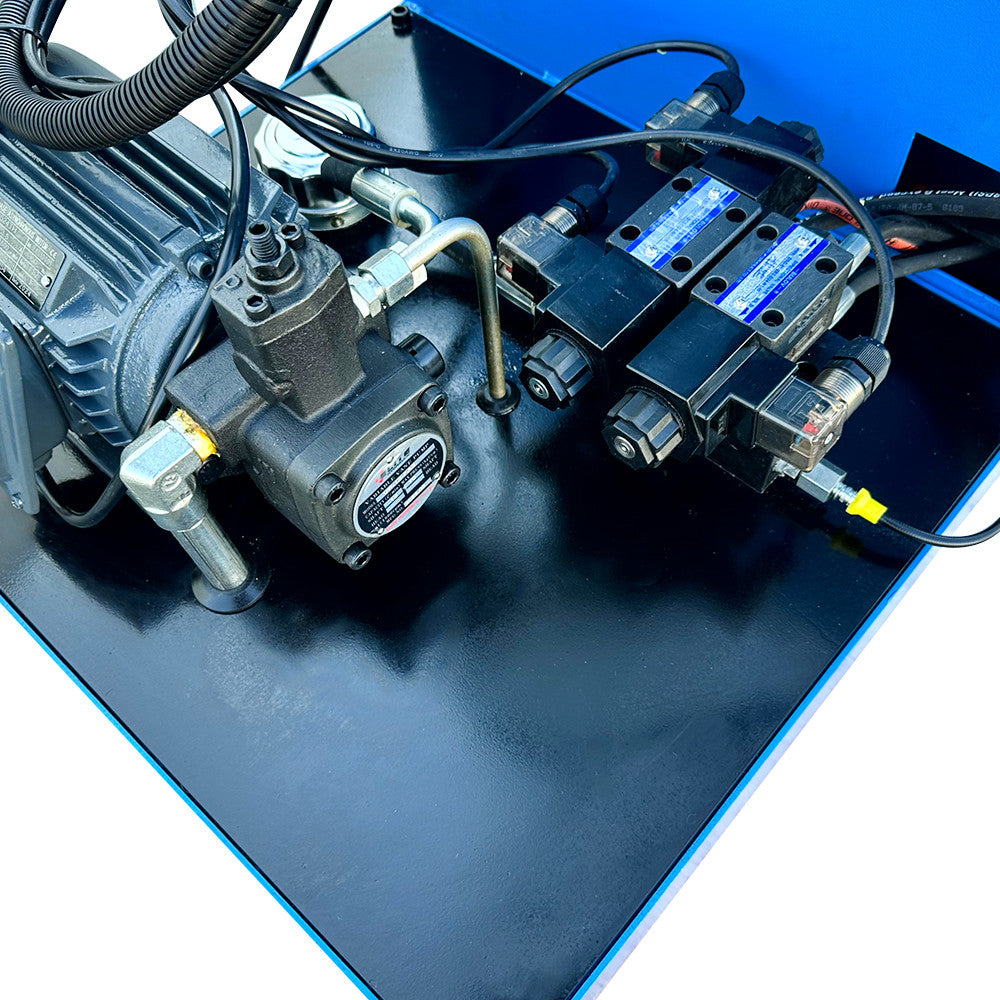

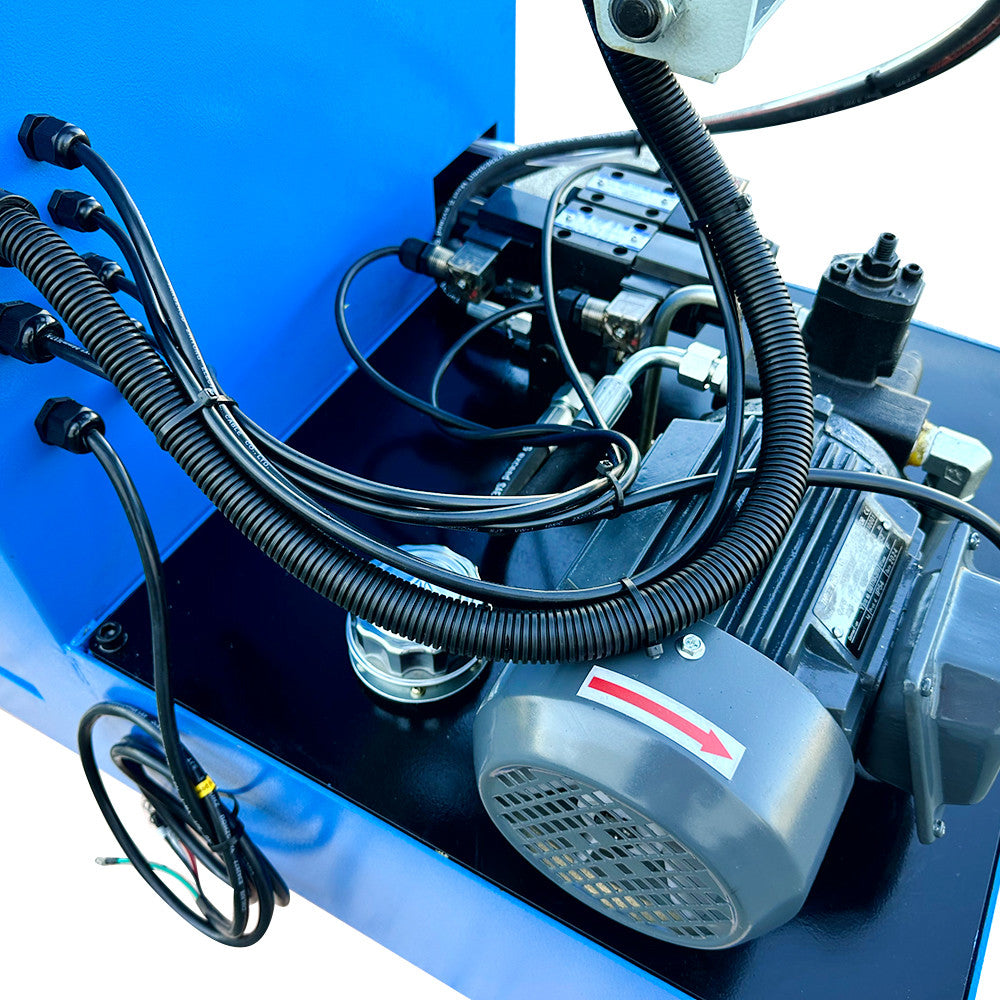

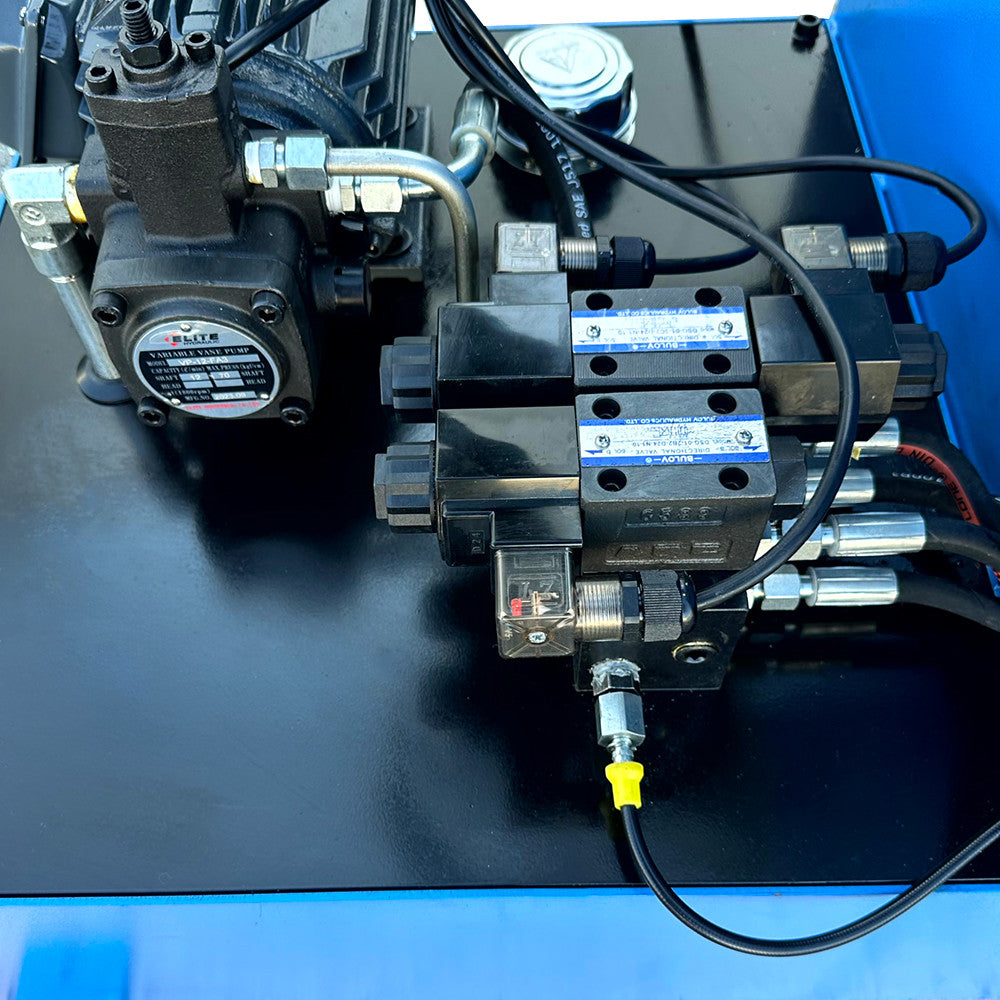

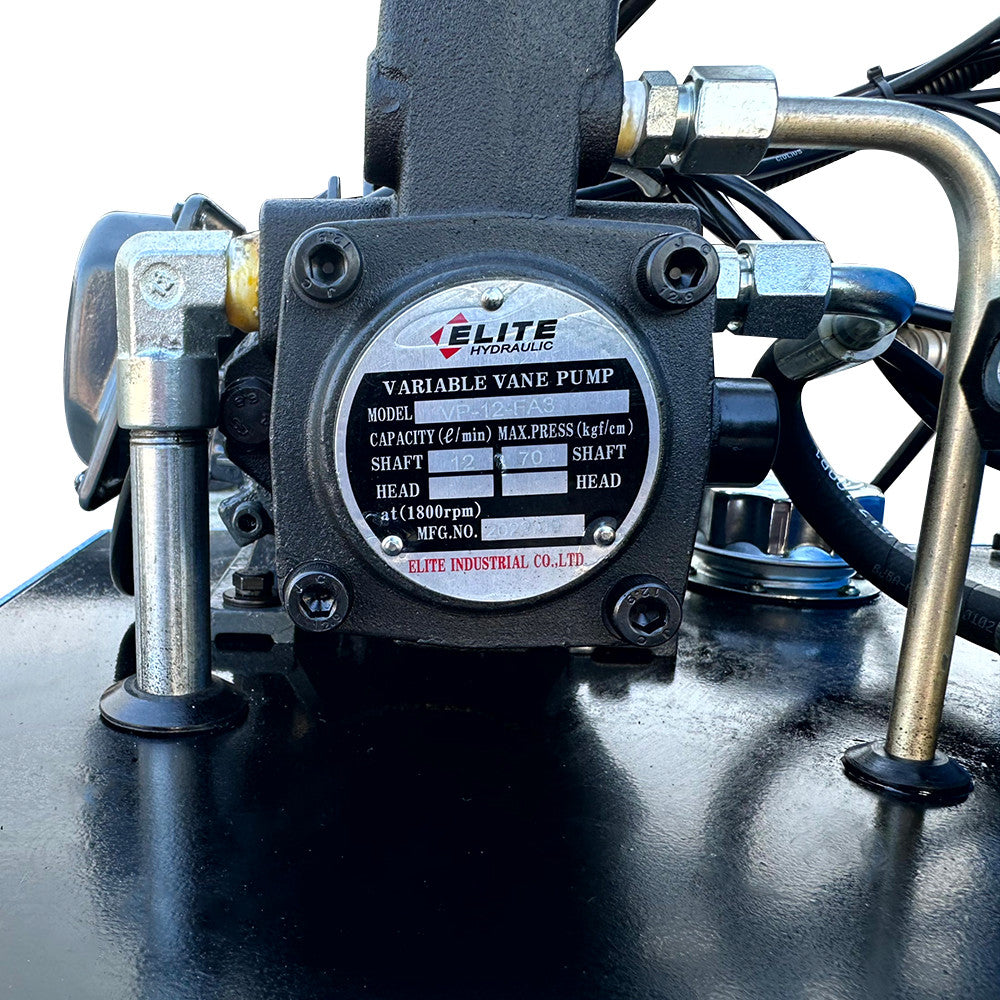

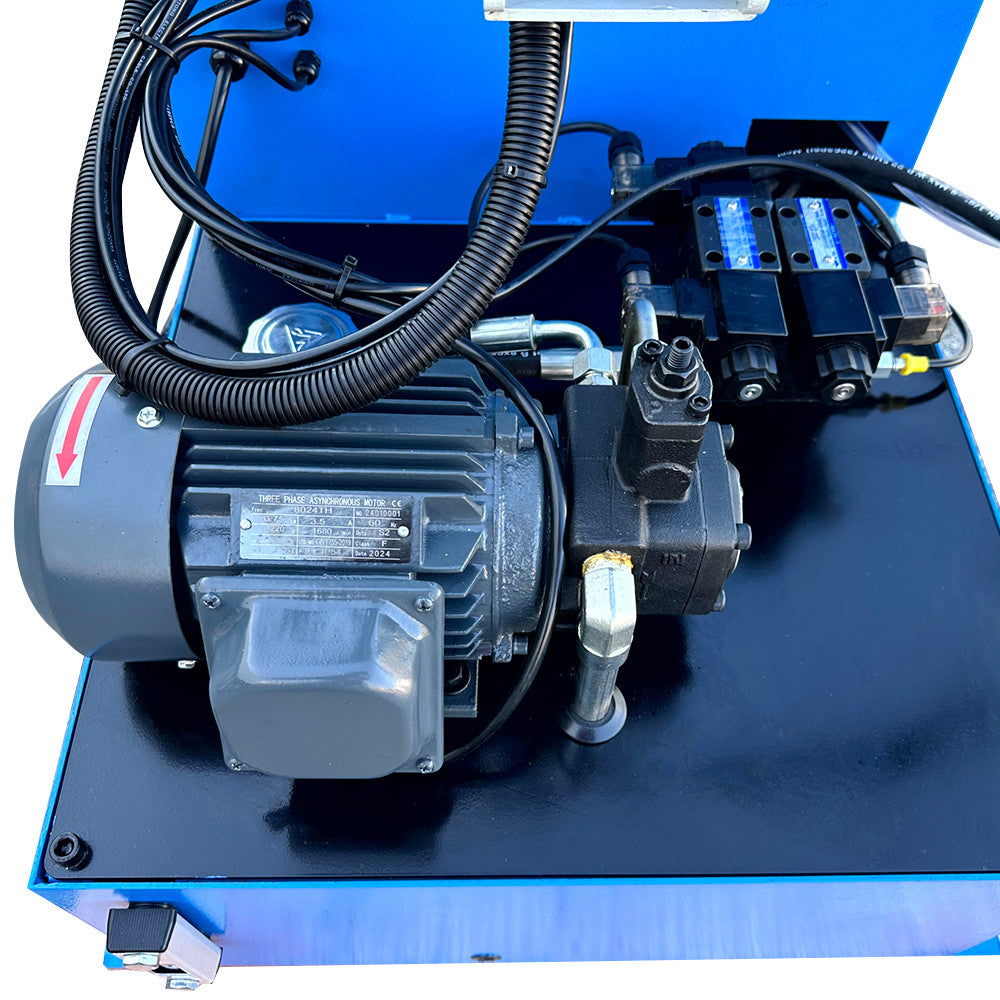

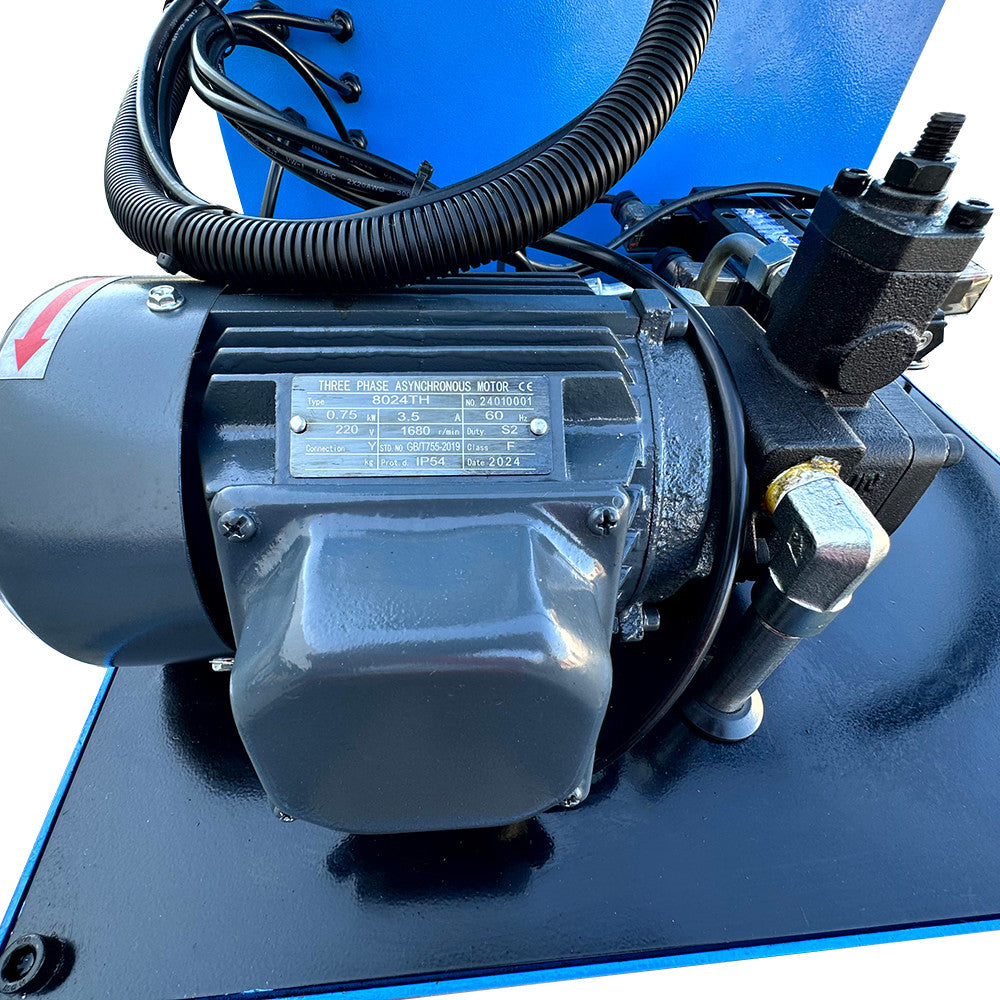

Hydraulic Motor Station:
* 3 Phase
* 220V @ 60 Hz
* 1,680 RPM
* 1HP (0.75kW)
* 3.5A
* 4P, DC24V, 3MPa -

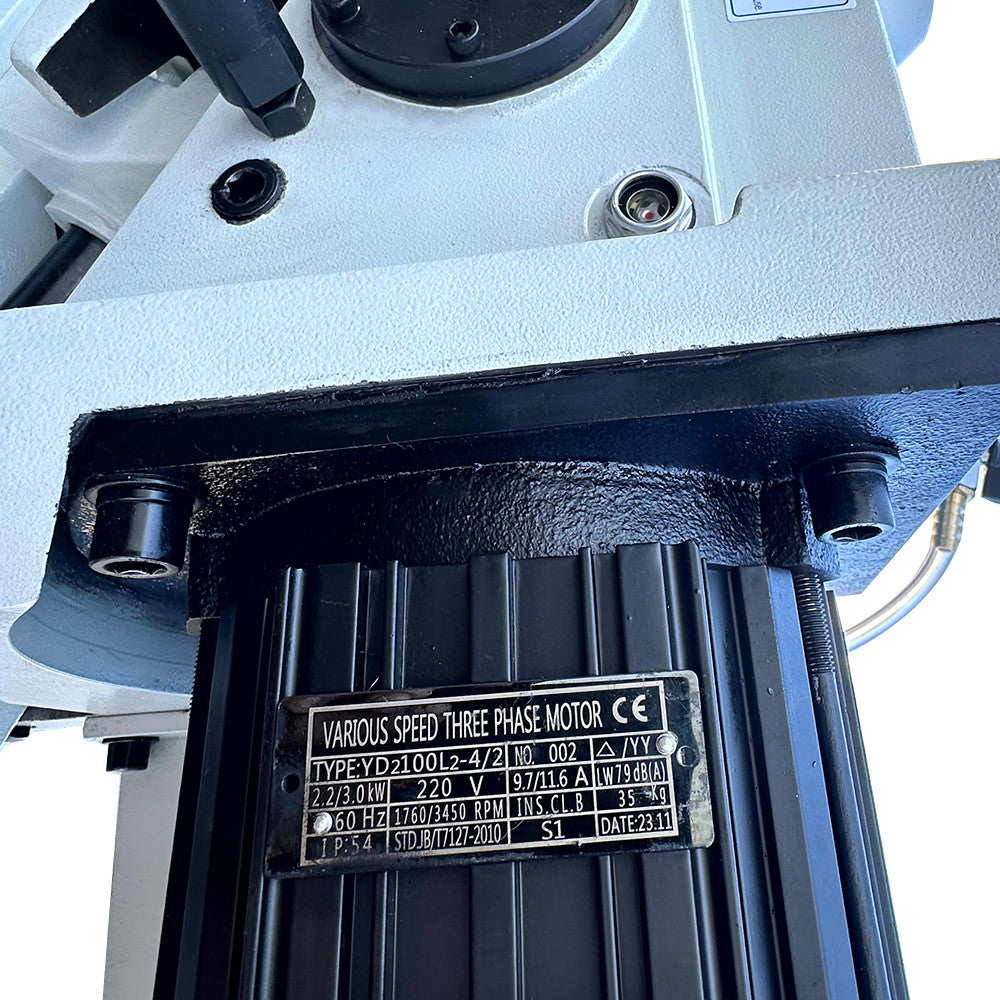

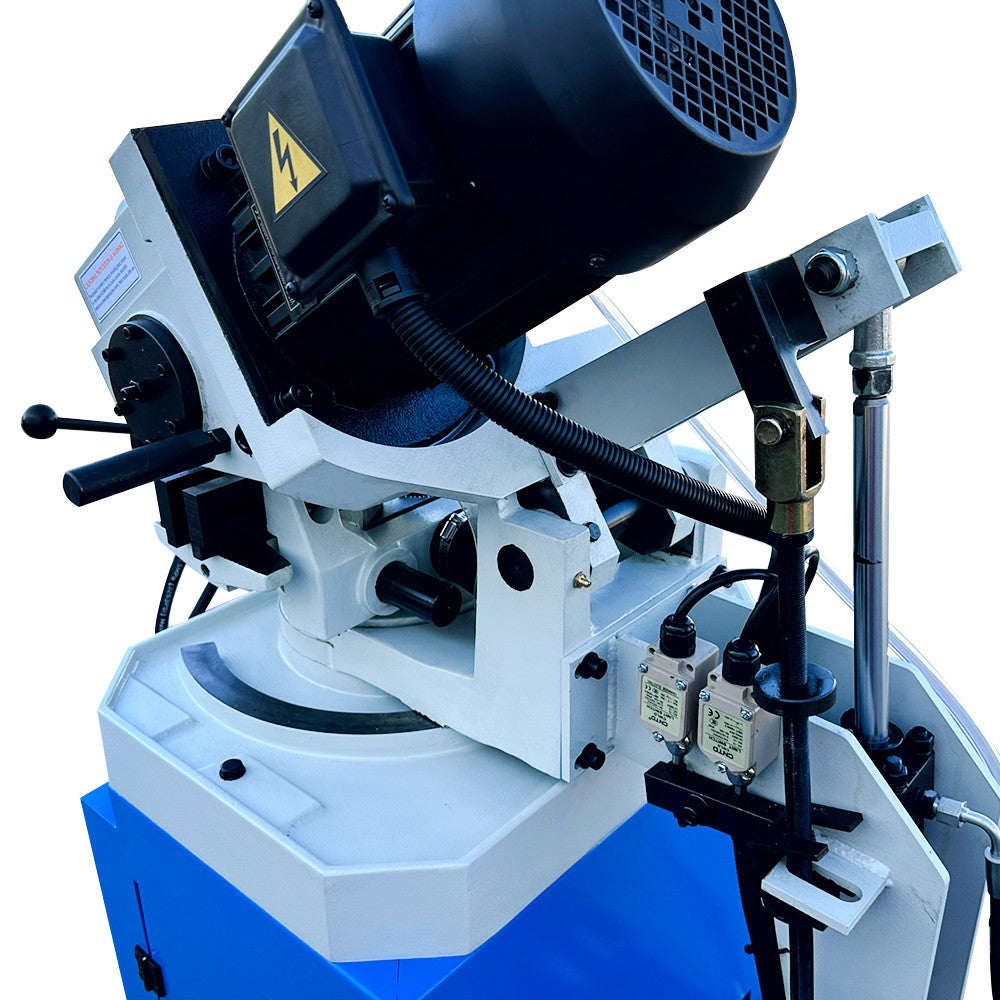

Motor Power:
* 3 Phase
* 220V @ 60 Hz
* 3HP (2.2kW) / 4 HP (3kW) (2P/4P double speed)
* 9.7 / 11.6A
* 1,760 / 3,450 RPM
* Drive: Gear -
Capacity:
@ 45 Degree:
* Round Pipe: 3-1/8" (80 mm)
* Rectangular Pipe: 2-3/8" x 2-3/8" (60 x 60 mm)
@ 90 Degree:
* Round Pipe: 3-1/2" (90 mm)
* Rectangular Pipe: 3-1/8" x 3-1/8" (80 x 80 mm)

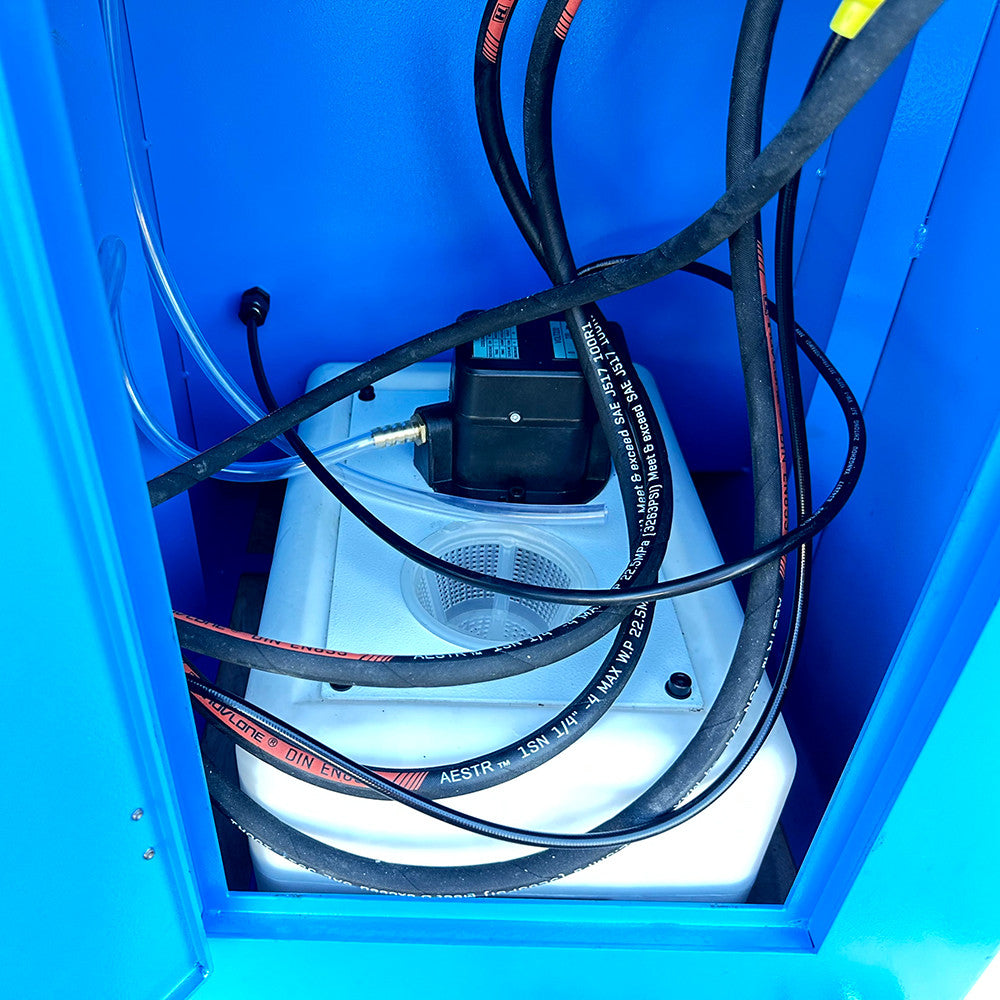

- Equipped with coolant system

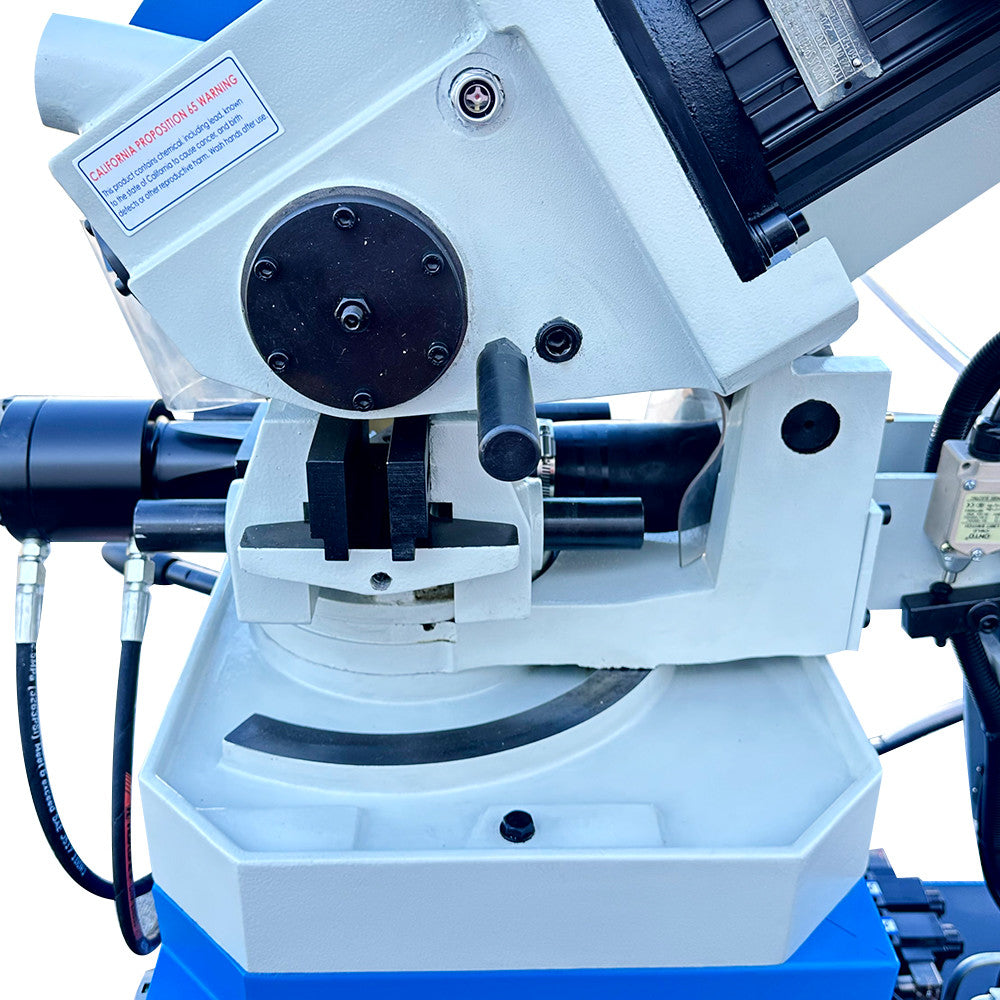

- Double vise design
- Overall dimension: 50''L x 40''W x 56''H *estimate only*
- Weight G.W. / N.W. : 1,144 lbs (520kg) / 1,012 lbs (460kg)
- Quantity: 1
-
